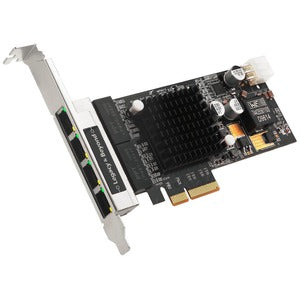

SIIG 4 Port Gigabit Ethernet with POE PCIe Card - Intel 350

The SIIG 4 Port Gigabit Ethernet with POE PCIe Card is a powerful networking solution designed to enhance your server or desktop systems by adding four independent Gigabit Ethernet ports. Perfect for businesses and tech enthusiasts alike, this PCIe card leverages Power over Ethernet (PoE) technology to deliver exceptional connectivity while also providing energy-efficient features. The SIIG card is engineered for reliability and high performance, making it an ideal choice for your networking needs.

• Four Independent Gigabit Ethernet Ports: Quickly expand your network capabilities by adding four Gigabit Ethernet ports through a single PCI Express slot.
• Power over Ethernet (PoE) Support: Complying with the IEEE 802.3at PoE+ standard, the card can provide up to 30W of power per port, allowing you to power compatible devices without the need for additional power sources.
• Advanced Chipset for Reliable Performance: The Intel I350-T4 chipset ensures robust network connectivity for both server and desktop systems, supporting full duplex communication.
• Energy Efficient Features: Built with IEEE 802.3az Energy Efficient Ethernet (EEE) technology, the card reduces power consumption while maintaining high performance, ensuring lower operational costs.
• Versatile Compatibility: The card fits both standard height and low-profile system chassis, with included full-size and spare low-profile brackets for easy installation.

Technical Details

• Chipset: Intel I350-T4
• Port Configuration: 4 x Gigabit Ethernet ports with PoE
• Power Output: Up to 30W per port, compliant with IEEE 802.3at PoE+
• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3az
• Wake-on-LAN Support: Yes
• Power Connector: 12V mini-fit 6-pin connector input
• VLAN Support: IEEE 802.1Q
• Network Boot: PXE (Preboot eXecution Environment) support
• Power Management: Advanced Configuration and Power Interface (ACPI) and Advanced Power Management (APM) support

How to Install

Installing the SIIG 4 Port Gigabit Ethernet with POE PCIe Card is a straightforward process. Follow these steps for a successful installation:

1. Turn off your server or desktop system and unplug it from the power source.
2. Open the computer case to access the PCI Express slots.
3. Identify an available PCIe slot and carefully insert the SIIG PCIe card into the slot, ensuring a snug fit.
4. Secure the card in place using the screws provided with your system.
5. Connect the 12V mini-fit 6-pin power connector to the card.
6. Close the computer case, plug the system back into the power source, and power it on.
7. Install the necessary drivers for the card from the manufacturer’s website or the included CD.

Frequently Asked Questions

1. What is Power over Ethernet (PoE)?

Power over Ethernet (PoE) allows network cables to deliver electrical power along with data to devices like IP cameras and wireless access points, eliminating the need for separate power supplies.

2. Is the SIIG PCIe card compatible with my system?

The SIIG 4 Port Gigabit Ethernet with POE PCIe Card is compatible with most server and desktop systems that have an available PCI Express slot. It fits both standard height and low-profile chassis.

3. How much power can each port deliver?

Each port on the SIIG PCIe card can provide up to 30W of power, compliant with the IEEE 802.3at PoE+ standard.

4. Do I need to install drivers for the card?

Yes, to ensure optimal performance, you should install the drivers for the SIIG PCIe card, which can be found on the manufacturer's website or included CD.

5. Can I use this card for VLANs?

Yes, the SIIG PCIe card supports IEEE 802.1Q for VLANs, allowing you to segment network traffic for improved performance and security.
