Description

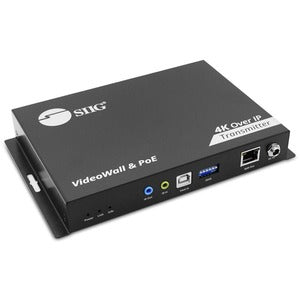

The SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) is a high-performance solution designed for seamless transmission of HDMI signals over IP networks. With the capability to deliver stunning 4K resolution at 60Hz, this encoder is perfect for various applications ranging from home theaters to professional AV setups. What sets this product apart is its ability to transmit HDMI signals up to an impressive distance of 394 feet (120 meters) using a single Cat6/7 cable, making it a reliable choice for installations where long distances are a requirement.
- Flexible Matrix Functionality: Easily extend HDMI audio/video signals to remote displays or monitors over UTP Cat6/7 cable, ensuring stable transmission of 4K@60Hz Ultra HD HDR resolution. This functionality allows for multiple receivers to be utilized in various configurations, catering to different needs.
- Highly Scalable: Operates as a scalable TX/RX matrix over a dedicated IP network, supporting up to 65,536 units total, with a limit of 1,023 transmitter units. The system can be expanded with additional encoder (TX) and decoder (RX) units, sold separately, providing future-proof capabilities.
- Power over Ethernet (PoE) Technology: Simplifies installation by allowing power supply through the Ethernet port, eliminating the need for additional power adapters. This not only saves costs but also enhances the system's robustness and reliability.
- Long Distance Transmission: Designed specifically for extending HDMI signals reliably up to 394ft (120m) via Gigabit Ethernet networks and switches, this encoder ensures consistent performance even at longer distances.
- High-Performance Video Quality: Supports Ultra High-Definition video resolutions up to 4K (4096x2160) at 60Hz, with advanced features like HDCP 2.2, HDR 10, Deep Color, and 3D support. Exceptional 18Gbps video bandwidth ensures high-quality video output.
Technical Details of SIIG 4K 60Hz HDMI over IP Matrix - Encoder (TX)
- Model: CE-H28A11-S1 (Encoder)
- Maximum Resolution: 4K (4096x2160) @60Hz
- Video Bandwidth: 18Gbps
- Support Formats: HDCP 2.2, HDR 10, 7.1-channel surround sound
- Distance: Up to 394 feet (120 meters) over Cat6/7 cable
- Power Consumption: 5V/2A DC
- Connectivity: HDMI input, USB-B 2.0 ports, Gigabit Ethernet, audio jacks, S/PDIF output, RS-232 control
- IR Extension: Bi-directional IR pass back
How to Install
Installing the SIIG 4K 60Hz HDMI over IP Matrix - Encoder (TX) is a straightforward process:
- Connect the HDMI source device (e.g., a Blu-ray player or game console) to the HDMI input port on the encoder.
- Use a Cat6/7 cable to connect the encoder to the Gigabit Ethernet network or switch.
- Connect the corresponding decoder (RX) unit to the remote display using another Cat6/7 cable.
- Power both the encoder and decoder using PoE or connect to a power source using the DC power jack.
- Utilize the RS-232 port for remote control functionalities if required, and configure settings through the DIP switch for video channel selection.
Frequently Asked Questions
1. Can the SIIG HDMI over IP Matrix support multiple displays?
Yes, it supports multiple displays through its scalable architecture, allowing you to connect up to 65,536 total units, with a limit of 1,023 transmitters.
2. What resolution and refresh rate does this encoder support?
The encoder supports resolutions up to 4K (4096x2160) at 60Hz, providing high-quality video output for various applications.
3. Is Power over Ethernet (PoE) supported?
Absolutely! The encoder and decoder can be powered through the Ethernet connection, simplifying installation and enhancing system reliability.
4. What distance can I extend the HDMI signal?
You can extend the HDMI signal up to 394 feet (120 meters) using a single Cat6/7 cable, making it ideal for long-distance installations.
5. Can I control the source devices remotely?
Yes, the encoder features bi-directional IR and RS-232 control capabilities, allowing you to manage and switch between HDMI source devices from remote locations.
