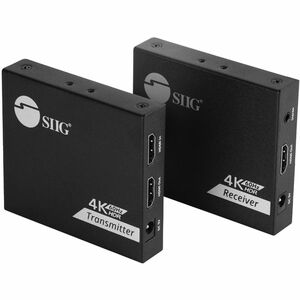

SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR

Experience cinema‑grade visuals and reliable HDMI distribution with the SIIG 4K 60Hz HDMI Over Cat6 Extender. This all‑in‑one solution is designed to transmit pristine 4K video and immersive audio over standard Cat6 cables, making it perfect for classrooms, conference rooms, digital signage, and home theater setups. With a robust port configuration that includes a dedicated loop‑out, precise IR control, and dual RJ45 connections, you can extend your media suite across rooms without compromising picture quality or control. The extender delivers a streamlined setup, reducing cable clutter while enhancing presentation reliability, making it a smart choice for both IT professionals and everyday users seeking dependable performance.

• 4K 60Hz HDMI transmission over Cat6 for ultra‑clear video, smooth motion, and minimal latency, ensuring your presentations, demos, and entertainment look their best on compatible displays.
• Extensive port Accessibility offers one HDMI input, one HDMI loop‑out, one HDMI output, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm stereo audio port, plus two reset buttons and two DC power jacks (5V/1A) for flexible installation and easy troubleshooting.
• IR control integration enables remote operation from the source or display location via dedicated IR emitter and receiver, making it ideal for classrooms and boardrooms where unobtrusive control is essential.
• Redundant power and quick resets with dual 5V/1A DC power supplies and two reset buttons provide reliability and quick recovery in complex deployments or temporary setups.
• Versatile deployment scenarios suited for lecture halls, classrooms, conference facilities, digital signage, and home theaters where dependable HDMI distribution and convenient control are required.

Technical Details of SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR

• Video and audio interfaces: HDMI input, HDMI loop‑out, HDMI output — enabling signal routing to a local display, while looping to another monitor if needed, and distributing HDMI to remote displays.
• Network/extension ports: 2 x RJ45 network ports designed for Cat6 based extender transmission, supporting long‑distance HDMI distribution with solid signal integrity.
• IR control: 3.5mm IR emitter port and 3.5mm IR receiver port to enable remote control of the source or display across the extended link, simplifying operations in multi‑room environments.
• Audio: 3.5mm stereo audio port for embedded audio or connection to external audio devices, providing flexibility in sound routing alongside video.
• Power and reset: Two reset buttons to restore factory settings when needed, and two DC power jacks (5V/1A) to power each unit from separate outlets or supply lines for redundancy.

how to install SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR

Before you begin, verify that your Cat6 cables are rated for high‑speed HDMI extension and that displays and source devices support 4K at 60Hz. Ensure you have two power supplies ready and that you have identified the sender and receiver units in your setup to avoid confusion during installation.

Step 1: Connect the HDMI source device (such as a Blu‑ray player, computer, or media streamer) to the extender’s HDMI input using a high‑quality HDMI cable.

Step 2: If you want a local display at the source location, connect a display to the HDMI loop‑out port with another HDMI cable.

Step 3: Run a Cat6 cable from the sender unit to the receiver unit, keeping runs as clean and shielded as possible to minimize interference. Use standard, well‑made cables for best results.

Step 4: At the remote display location, connect the HDMI output of the receiver to your distant monitor or projector using an HDMI cable. This allows the audience to view the content from the receiver position.

Step 5: Attach the 3.5mm IR emitter to the sender or source device and the 3.5mm IR receiver to the display location, enabling remote control functionality across the extended link. If you do not need IR control, you can leave these ports unused.

Step 6: Connect both units to power using the included 5V/1A DC adapters. If you’re installing in a setup with multiple power zones, you can place power supplies on separate outlets for redundancy. Once powered, press the reset buttons if you need to restore factory settings or re‑initialize the link after plugging in cables.

Step 7: Power on your source and displays. Verify that the video appears on the remote display and that the local loop‑out (if used) continues to show content. Test the IR control by using the remote to operate functions from the remote location and ensure responses are timely and accurate. Adjust as needed for optimal picture quality and audio alignment.

Tip: For best results, ensure the Cat6 run is free from excessive electromagnetic interference, and keep cables away from power lines or fluorescent fixtures. If you encounter issues with compatibility or handshake between devices, a simple power cycle of both units usually resolves most problems.

Frequently asked questions

• Q: What resolution and refresh rate does this extender support?

  A: The system is designed for 4K resolution at 60Hz, delivering sharp, fluid video on compatible displays and sources.

• Q: How many displays can be driven in a single setup?

  A: The extender provides one HDMI input, one HDMI loop‑out, and one HDMI output. This enables a local display plus a remote display over Cat6, suitable for multi‑room or classroom environments.

• Q: Do I need special software or drivers?

  A: No software or drivers are required. The extender is a plug‑and‑play hardware device designed to work with standard HDMI sources and displays.

• Q: How is IR functionality used across the extended link?

  A: The 3.5mm IR emitter and receiver ports allow you to control the source or display remotely from the extended location, providing convenient, unobtrusive operation.

• Q: What about power requirements and reliability?

  A: The unit features two DC power jacks (5V/1A), enabling stable power delivery and potential redundancy. The two reset buttons also help restore operation quickly if needed.

• Q: Is this extender suitable for classroom or boardroom deployments?

  A: Yes. Its versatile port configuration, 4K performance, loop‑out capability, and IR control make it ideal for educational and professional environments where reliable HDMI distribution and ease of use are essential.
