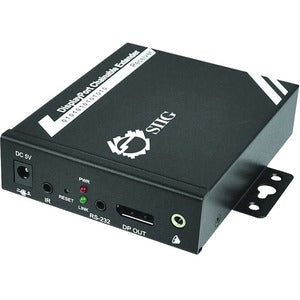

SIIG DisplayPort to CAT5e Daisy Chain HD Extender Kit with RS-232 & IR - Repeater

Experience seamless DisplayPort extension over cost-effective CAT5e/6 cabling with SIIG’s DisplayPort to CAT5e Daisy Chain HD Extender Kit. This repeater-enabled system is designed to receive a DP signal from a source and reliably deliver high-definition video to distant displays, using inexpensive network-grade cables. Built for versatility, it includes RS-232 and IR control to integrate with room automation, digital signage networks, and education or corporate AV installations. Whether you’re distributing content across a single long run or building a multi-display daisychained setup, this extender kit combines performance, flexibility, and ease of use.

With a focus on delivering crisp visuals and stable control, the repeater helps maintain signal integrity over extended distances. The kit is ideal for conference rooms, classrooms, retail displays, and command centers where cost savings on wiring are crucial without compromising on image quality or control capabilities. RS-232 support allows integration with legacy control systems, while IR pass-through makes it possible to run source commands from a remote location. The result is a scalable, reliable, and simple-to-deploy solution for distributing DisplayPort content across larger venues or across multiple displays in a daisy-chained configuration.

• Extends DisplayPort signals over economical CAT5e/6 cabling with a built-in repeater to preserve image quality on distant displays.
• RS-232 control enables seamless integration with room automation, projectors, and legacy AV equipment for centralized management.
• IR control pass-through provides convenient, remote operation of displays and sources, enhancing user experience in classrooms and meeting spaces.
• Daisy-chain capable, allowing scalable deployment by linking additional extenders for longer reach and multi-monitor layouts.
• HDCP-compliant design supports protected content, delivering reliable performance for high-definition video and multimedia playback.

Technical Details of SIIG DisplayPort to CAT5e Daisy Chain HD Extender Kit

• Product Type: DisplayPort to CAT5e Daisy Chain HD Extender Kit with RS-232 & IR - Repeater
• Interfaces and Ports: DisplayPort input, DisplayPort output, CAT5e/6 link via RJ-45 connectors, RS-232 port, IR input/output for remote control
• Video/Resolution Support: Supports DisplayPort signals with high-definition output; capable of handling high-resolution content including 4K within DP specifications and cable limits
• Control Capabilities: RS-232 control for integration with automation systems; IR pass-through for convenient remote operation
• Daisy Chain Capability: Designed to link additional extenders to extend reach and create multi-display configurations
• Power Requirements: External power supply required to power extender and repeater units
• HDCP Compliance: HDCP-compliant to ensure secure content delivery and compatibility with protected media
• Cable Type: Uses standard CAT5e/6 cables for the data link between transmitter, repeater, and display segments
• Compatibility: Works with DisplayPort sources and displays that support DP video and audio, subject to device specifications

how to install SIIG DisplayPort to CAT5e Daisy Chain HD Extender Kit

• Power down your DisplayPort source, displays, and any connected control equipment before making connections.
• Connect the DisplayPort source to the DP input on the transmitter unit using a standard DisplayPort cable.
• Run a CAT5e/6 cable from the transmitter’s link interface to the next extender or to the receiver segment in your chain, ensuring proper alignment of the run.
• Connect the DisplayPort output from the repeater or the final link to the display using a DisplayPort cable, preserving correct orientation in your daisy-chain layout.
• Attach RS-232 control devices to the RS-232 port and connect IR controllers or emitters to the IR input/output as required for your installation.
• Plug in the external power supplies for the transmitter, repeater, and any additional extenders in the chain. Power on the system and verify that the video displays correctly across all linked displays.

Frequently asked questions

• What does this product do? It extends DisplayPort video across CAT5e/6 cabling using a repeater, and it supports RS-232 and IR control for integrated AV and automation systems, with the ability to daisy-chain to additional extenders for larger installations.
• Do I need drivers to use this extender? No drivers are required. The system is designed to work with standard DisplayPort sources and displays, configured through the connected hardware and control interfaces.
• Can I daisy-chain multiple extenders? Yes. The kit is designed to support daisy-chain configurations, allowing you to connect additional extenders to cover longer distances and support more displays.
• What resolutions are supported? The extender supports DisplayPort video and can handle high-resolution content up to DP specifications, including 4K under appropriate conditions and with compatible hardware and cabling.
• Is HDCP supported? Yes. The extender is HDCP-compliant, ensuring secure playback of protected content when used with compatible sources and displays.
