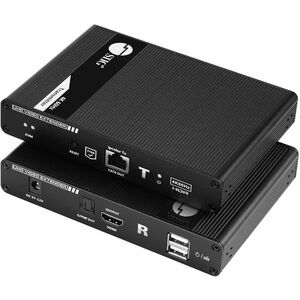

SIIG HDMI 2.0 KVM Over Cat6 Extender with Loopout & S/PDIF

The SIIG HDMI 2.0 KVM Over Cat6 Extender with Loopout & S/PDIF is the ultimate solution for extending your HDMI signals with exceptional quality and performance. Designed for users who demand high-definition video and audio transmission over long distances, this advanced extender allows you to send 4K@60Hz Ultra HD signals up to 230 feet (70 meters) with virtually no latency. Whether for home entertainment, professional applications, or gaming, this device ensures you enjoy seamless connectivity and stunning visuals.

• Extended Range: Transmit HDMI signals over long distances of up to 230ft (70m) using standard Cat6/6a/7 network cables, making it ideal for large spaces.
• Ultra HD Support: Enjoy 4K@60Hz resolution with 18Gbps bandwidth, ensuring crystal-clear image quality and vibrant colors for all your video needs.
• KVM Functionality: The device provides USB 2.0 extension, allowing you to connect wired or wireless keyboards and mice, giving you complete control of your computer from a distance.
• Audio Extraction: With built-in S/PDIF audio extraction, you can get high-quality audio output that supports PCM 2-channel, Dolby, and DTS 5.1 sound formats, elevating your audio experience.
• Robust Protection: Featuring lightning, surge, and ESD protection, this extender ensures safety for your electronic devices while enhancing durability with a high-quality aluminum alloy housing.

Technical Details of the Product

• Video Resolution: Up to 4K@60Hz
• Bandwidth: 18Gbps
• Distance: Up to 230ft (70m) via Cat6/6a/7 cable
• Audio Support: S/PDIF with PCM 2ch, Dolby, and DTS 5.1
• USB: Supports USB 2.0 for keyboard and mouse extension
• HDCP: Supports HDCP 2.2
• Housing: High-quality aluminum alloy
• Warranty: 2 years

How to Install

Installing the SIIG HDMI 2.0 KVM Over Cat6 Extender is simple and straightforward. Follow these steps:

1. Connect the HDMI source (e.g., a computer) to the HDMI input of the transmitter using an HDMI cable.
2. Connect the Cat6/6a/7 Ethernet cable to the transmitter's output and run it to the location of the receiver.
3. Connect the HDMI output of the receiver to your display device (monitor or TV) using another HDMI cable.
4. If using USB devices, connect your keyboard and mouse to the USB ports on the receiver for remote access.
5. For audio output, connect an S/PDIF cable from the receiver to your audio system if needed.
6. Power on the devices, and your setup is ready to use without the need for additional drivers or software.

Frequently Asked Questions

1. What types of cables can be used with the extender?

The extender is compatible with standard Cat6, Cat6a, or Cat7 network cables for optimal performance.

2. Can I use this extender for gaming?

Yes, the SIIG HDMI 2.0 KVM Over Cat6 Extender is designed to provide low latency performance, making it ideal for gaming applications.

3. Do I need to install any drivers for this product?

No, the extender is plug and play, meaning no driver installation is required for operation.

4. Is there a warranty with this product?

Yes, the SIIG HDMI 2.0 KVM Over Cat6 Extender comes with a 2-year warranty for peace of mind.

5. Can I use multiple displays with this extender?

Yes, the transmitter's HDMI loop-out feature allows for local monitoring and can work as an HDMI splitter for multiple screens.
