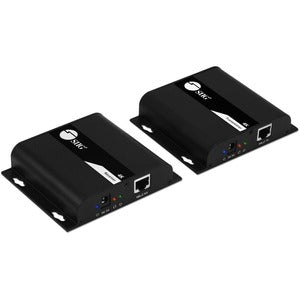

SIIG HDMI 4K30Hz HDbitT over IP Extender - 120m

The SIIG HDMI 4K30Hz HDbitT over IP Extender is the ultimate solution for extending HDMI audio and video signals without compromising on quality. Designed for both home and office environments, this powerful device allows you to transmit signals over an impressive distance of up to 120 meters (394 feet) using cost-effective Cat 6 or Cat 7 cables. Enjoy superior audio and video quality with the support of 4K resolution at 30Hz, ensuring seamless integration into your existing network infrastructure. Here are the standout features that make this extender a must-have:

• Extended Range: Transmit HDMI signals up to 120m (394ft) over affordable Cat 6/7 cables, ensuring flexibility in installation without sacrificing quality.
• High-Quality Video and Audio: Supports resolutions up to 4K @ 30Hz and 1080p with HDCP 1.4 compliance, delivering exceptional image clarity and sound quality.
• Versatile Configuration Options: Features direct one-to-one connections, one-to-many setups using unmanaged Gigabit network switches, or many-to-many connections via VLAN through smart Ethernet switches.
• IR Control Functionality: One-directional IR control allows for easy remote operation of HDMI source devices from a distance, enabling greater convenience in managing your media.
• Efficient Heat Dissipation: Constructed with high-quality surface-mountable metal housing, this extender effectively dissipates heat to ensure stable performance and reliability.

Technical Details of the SIIG HDMI 4K30Hz HDbitT over IP Extender

• Model: CE-H25E11-S2
• Video Resolution Support: Up to 4K @ 30Hz and 1080p
• Audio Support: 2-channel Stereo Audio
• HDCP Compliance: HDCP 1.4
• Maximum Transmission Distance: 120m (394ft)
• Cable Type: Cat 6/7
• IR Control: One-directional from RX to TX
• Receiver Compatibility: Up to 255 Receivers (CE-H25E11-S2) per Transmitter

How to Install the SIIG HDMI 4K30Hz HDbitT over IP Extender

1. Connect your HDMI source device (such as a PC, Blu-ray player, or media player) to the HDMI input on the Transmitter.
2. Using a high-performance pure copper Cat6 or Cat7 cable, connect the Transmitter's output to your existing Ethernet network.
3. At the remote location, connect another Cat6 or Cat7 cable from your Ethernet network to the HDMI Receiver unit.
4. Finally, connect your HDTV or display to the HDMI output on the Receiver.
5. For IR control, connect the included IR cables to the respective ports on the Receiver and Transmitter to enable remote functionality.

Frequently Asked Questions

1. What is the maximum distance the SIIG HDMI 4K30Hz HDbitT over IP Extender can transmit signals?

The extender can transmit HDMI signals up to 120 meters (394 feet) using Cat 6 or Cat 7 cables.

2. Does this product support 4K video?

Yes, the SIIG HDMI 4K30Hz HDbitT over IP Extender supports video resolutions of up to 4K at 30Hz.

3. Can I control my HDMI source device remotely?

Absolutely! The extender comes with one-directional IR control functionality, enabling you to manage your HDMI source device from a remote location.

4. How many Receivers can I connect to a single Transmitter?

You can connect up to 255 Receivers (CE-H25E11-S2) to a single Transmitter using the HDBitT transport protocol.

5. What type of cables do I need to use for optimal performance?

For the best results, we recommend using high-performance pure copper Cat6 cables to ensure reliable performance and signal integrity.
