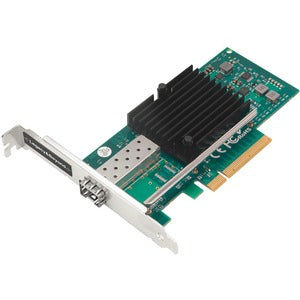

SIIG Single Port 10G SFP+ Ethernet Network PCI Express

SIIGSKU: 5850024

Price:
Sale price$180.23

Description

SIIG Single Port 10G SFP+ Ethernet Network PCI Express

Upgrade your server or desktop with a single, high-performance 10 Gigabit Ethernet NIC that fits directly into a PCI Express slot. The SIIG Single Port 10G SFP+ Ethernet Network PCI Express brings a reliable, scalable, and versatile networking solution to data centers, workstations, and storage servers. Powered by an Intel X520 chipset, this card delivers robust throughput, low latency, and a smooth path to virtualization-ready networks. With a single 10GbE SFP+ port, you can connect to a fiber or copper network infrastructure using standard SFP+ transceivers, enabling fast data transfers for backups, virtual machine migrations, large file transfers, and real-time data replication. Whether you’re expanding capacity in a virtualization host, accelerating a backup server, or enhancing a high-performance workstation, this PCIe NIC is designed to meet demanding workloads with reliability and ease of deployment.

  • High-speed 10 GbE SFP+ port: Delivers up to 10 gigabits per second of network throughput to support bandwidth-intensive applications, storage networks, and virtualization tasks with minimal latency.
  • PCI Express 2.0 x8 interface: Fits into standard PCIe slots and provides ample bandwidth for reliable 10G networking; backwards-compatible with smaller x4/x1 configurations when available, ensuring flexible deployment across various systems.
  • Intel X520 chipset: Leverages proven Intel networking technology for stability, performance, and robust virtualization features to optimize VM networking and data center workloads.
  • Flexible SFP+ connectivity: Compatible with a wide range of 10G SFP+ transceivers and cables, enabling fiber or copper-based connections to switches, storage arrays, and remote networks.
  • Easy deployment and broad compatibility: Designed for rapid installation in servers and desktops with driver support across major operating systems, enabling seamless integration into existing IT environments.

Technical Details of SIIG Single Port 10G SFP+ Ethernet Network PCI Express

  • Interface: PCI Express 2.0 x8
  • Port(s): 1 × 10GbE SFP+ Ethernet port
  • Chipset: Intel X520-based
  • SFP+ support: Uses standard 10G SFP+ transceivers for fiber or copper connections
  • Form factor: PCIe network adapter card (designed for server and desktop use)
  • virtualization support: Optimized for virtualization environments with Intel technology for VM networking
  • Driver compatibility: Supported by common Windows and Linux distributions with available drivers

How to install SIIG Single Port 10G SFP+ Ethernet Network PCI Express

  • Power down your computer or server and unplug the power cord from the power supply.
  • Open the chassis side panel to access available PCIe expansion slots.
  • Identify an available PCI Express slot (preferably PCIe 2.0 x8 or x16 for maximum bandwidth).
  • Insert the SIIG 10G SFP+ PCIe card firmly into the slot until it is seated and aligned, then secure the bracket with a screw.
  • Install an appropriate 10G SFP+ transceiver module and attach the fiber or copper cabling as required by your network design.
  • Power on the system and install the required drivers from the SIIG/Intel support page or the included media; reboot if prompted.
  • Configure the network interface in your operating system’s network settings and verify connectivity to your 10G network or switch.

Frequently asked questions

  • Q: What type of network connection does this card provide?

    A: It provides a single 10GbE SFP+ Ethernet port, allowing you to connect via compatible 10G transceivers for fiber or DAC copper links.

  • Q: Which systems and operating systems are supported?

    A: The card is designed for server and desktop use and includes driver support for major Windows and Linux distributions, with virtualization-grade features optimized for VM environments.

  • Q: Do I need a specific PCIe slot?

    A: The card uses a PCI Express 2.0 x8 interface. It will function in x8 lanes and is typically compatible with x4/x1 slots, though performance will scale with the available lanes.

  • Q: Can I use this card in a virtualization environment?

    A: Yes. The Intel X520-based chipset and 10G SFP+ port are well-suited for virtualization workloads, enabling high-throughput VM networking and efficient data transfer between hosts and storage networks.

  • Q: What kind of transceivers do I need?

    A: You will need compatible 10G SFP+ transceivers appropriate for your network (fiber or copper DAC). Check your switch or storage array’s compatibility list to select the correct module.
