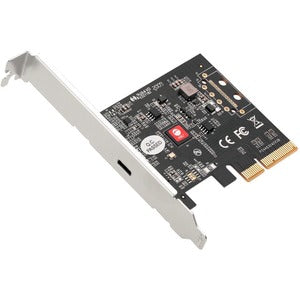

SIIG USB 3.2 Type-C Gen 2x2 PCIe Card – 20G USB-C Expansion, Dual-Profile

Unlock next‑level connectivity with the SIIG Single USB 3.2 Type-C Gen 2x2 PCIe Card. This compact, high‑performance PCIe expansion card adds a single USB-C port capable of USB 3.2 Gen 2x2 at 20 Gbps, delivering blazing-fast data transfers to external drives, hubs, and periphery devices. Built for versatility, its dual‑profile design supports both full‑height and low‑profile chassis, making it an ideal upgrade for a wide range of desktops and workstations. With robust safety features, plug‑n‑play ease, and efficient power delivery, this card is designed to streamline your workflow without sacrificing reliability or compatibility.

• Blazing-fast USB 3.2 Gen 2x2 (20 Gbps) performance enables rapid backups, media editing, and large‑file transfers through a dedicated USB‑C port, maximizing throughput for compatible devices.
• Single USB‑C port with up to 3A power output and built‑in over‑current protection to safeguard connected devices while delivering stable, sufficient power for demanding peripherals.
• UASP Revision 1.0 compliance enhances transfer efficiency and reduces CPU load on supported systems, helping your PC perform more tasks in parallel with less bottleneck.
• Dual‑profile design supports installation in either full‑height or low‑profile PCIe slots, providing flexible integration across a broad range of PC cases and form factors.
• Plug‑and‑play USB‑C expansion for desktops, with automatic OS detection in modern environments; minimal setup and straightforward operation for immediate productivity gains.

Technical Details of SIIG USB 3.2 Type-C Gen 2x2 PCIe Card

• Product type: PCIe USB-C expansion card for desktops
• USB specification: USB 3.2 Gen 2x2 with up to 20 Gbps total bandwidth
• Port configuration: 1 x USB-C port
• Power delivery: 3 A power output to support high‑current devices
• Protection: Over‑current protection for safe operation of connected peripherals
• Protection standard: UASP Revision 1.0 compliant for optimized data transfers
• Form factor: Dual‑profile (full‑height and low‑profile) bracket design
• Installation: Plug‑and‑play capable; compatible with modern operating systems without complex driver setup

How to install SIIG USB 3.2 Type-C Gen 2x2 PCIe Card

• Power down your computer and unplug the power cord from the outlet. Ground yourself to avoid static discharge before handling internal components.
• Open the computer case to access an available PCIe slot on the motherboard. Confirm there is clearance for the card and its bracket inside the chassis.
• Insert the SIIG PCIe card into an open PCIe slot (protective tabs removed if necessary) until it sits firmly in place. Ensure the card is aligned properly with the slot and seated fully to avoid connectivity issues.
• Secure the bracket to the case with a screw to hold the card firmly in position. This prevents movement and ensures stable contact.
• Reconnect power, boot the system, and allow the operating system to detect the new hardware. In most modern OS environments, the USB‑C port will be recognized automatically with no driver installation required. If prompted, install any recommended drivers from SIIG’s support resources to ensure full functionality.
• Test the USB‑C port by connecting a compatible device, such as an external SSD or high‑speed USB‑C hub, and verify data transfer speeds and charging capability (up to 3A per device as applicable).

Frequently asked questions

• What speed does the USB‑C port support? The card supports USB 3.2 Gen 2x2 with up to 20 Gbps of total bandwidth on the USB‑C port, enabling fast data transfers for high‑speed peripherals.
• Does the card provide power to connected devices? Yes, the USB‑C port can deliver up to 3A of current to supported devices, helping with performance and charging where applicable.
• Is there protection for power surges? The card includes over‑current protection to guard both the card and connected devices against power surges or faults.
• Can I install this in any PC case? The dual‑profile design enables installation in both full‑height and low‑profile chassis, making it compatible with a wide range of desktops and workstations.
• Is it really plug‑and‑play? Yes. The card is designed for plug‑and‑play operation in modern operating systems. Some systems may require a driver or firmware update from SIIG for optimal compatibility.
• How many USB ports does it add? The card provides a single USB‑C port on the PCIe expansion card, expanding your computer’s USB‑C capabilities without clutter.
