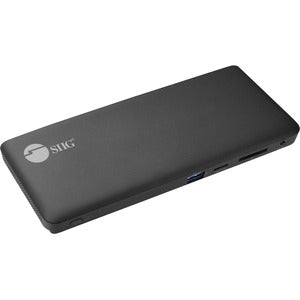

SIIG USB-C Triple Video MST Docking Station with PD

Meet the SIIG USB-C Triple Video MST Docking Station with PD, a compact, high-performance hub designed to transform a single USB-C connection into a powerhouse workstation. This MST docking station delivers triple 1080p video across 1x DisplayPort and 2x HDMI outputs, while supplying up to 65W of Power Delivery to keep your laptop charged during long work sessions. In addition to booming video capability, it provides USB-A 5Gbps data transfer, Gigabit Ethernet, SD and Micro SD slots, and a handy 3.5mm audio jack. Built for versatility and reliability, this dock leverages DisplayPort 1.4 Alt-Mode and Multi-Stream Transport to deliver seamless multi-monitor productivity from a single USB-C host.

• Triple-monitor MST capability: Convert one USB-C connection into a three-display workflow using 1x DisplayPort and 2x HDMI outputs. Perfect for multitasking with a dedicated screen for charts, a second for communication, and a third for reference materials, all at 1080p resolution per display.
• 65W Power Delivery: Keep your laptop charged while you work thanks to up to 65W of USB-C PD. This reduces desk clutter by minimizing the need for a separate charger and ensures your device remains ready for action during long sessions.
• High-speed data and wired networking: Enjoy USB-A 5Gbps data transfers for peripherals and a reliable Gigabit Ethernet connection for fast, stable network access—ideal for video conferences, large file transfers, and cloud work.
• SD/Micro SD slots and 3.5mm audio: Quickly transfer photos and media from SD or Micro SD cards and connect headphones, headsets, or speakers via the 3.5mm audio jack for meetings and media playback.
• Flexible, compatibility-driven design: Built to work with USB-C devices that support DP Alt-Mode and MST, offering a compact, plug-and-play solution for Windows and compatible USB-C laptops and tablets seeking a versatile multi-monitor setup.

Technical Details of SIIG USB-C Triple Video MST Docking Station with PD

• Video outputs: 1x DisplayPort, 2x HDMI
• Video capability: Triple 1080p displays supported via MST
• Power Delivery: 65W USB-C PD
• USB data connectivity: USB-A 5Gbps
• Networking: Gigabit Ethernet
• Card slots: SD and Micro SD slots
• Audio: 3.5mm stereo headphone/microphone jack
• Ports and compatibility: Designed for USB-C devices with DP Alt-Mode and MST support

How to install SIIG USB-C Triple Video MST Docking Station

Step 1 — Connect to your computer: Attach the dock to your USB-C-enabled host using the included USB-C cable. Ensure your device supports DisplayPort Alt-Mode and MST for full multi-monitor capabilities.

Step 2 — Attach displays: Connect one display to the DisplayPort port and the other two to the HDMI ports using standard DisplayPort and HDMI cables. Configure display order and extended/mirrored modes in your operating system settings.

Step 3 — Supply power (optional): If you want to maximize charging to your laptop, connect a USB-C PD charger to the dock to provide up to 65W of power delivery. This is especially helpful during extended work sessions.

Step 4 — Add peripherals and media: Plug keyboards, mice, USB drives, and other USB-A devices into the dock’s USB-A ports. Insert SD or Micro SD cards into the respective slots for quick data transfer and media access.

Step 5 — Strong network and audio: Connect an Ethernet cable to the Gigabit Ethernet port for reliable network access, and use the 3.5mm audio jack for headphones or speakers as needed. Once everything is connected, power on your devices and adjust display and audio settings to your preference.

Frequently asked questions

Q: How many displays can I run with this dock?

A: The SIIG USB-C Triple Video MST Docking Station supports triple 1080p displays across 1x DisplayPort and 2x HDMI outputs via MST and DP 1.4 Alt-Mode.

Q: What is the power delivery specification?

A: It provides up to 65W of Power Delivery through the USB-C connection to charge a connected laptop while docked, when used with a compatible USB-C PD charger.

Q: Which ports are available for data and peripherals?

A: The dock includes USB-A 5Gbps for high-speed peripherals, SD and Micro SD slots for memory cards, a Gigabit Ethernet port for wired networking, and a 3.5mm audio jack for audio needs.

Q: Do I need drivers for this dock?

A: The dock relies on standard USB-C DP Alt-Mode MST connectivity. Most systems recognize the device without special drivers, though some features may benefit from OS updates or vendor-specific firmware considerations.

Q: Is this dock compatible with both Windows and Mac?

A: The dock targets USB-C devices that support DP Alt-Mode and MST. It is commonly used with Windows-based laptops and many MacBooks with USB-C ports, but MST availability can vary by operating system and device configuration.
