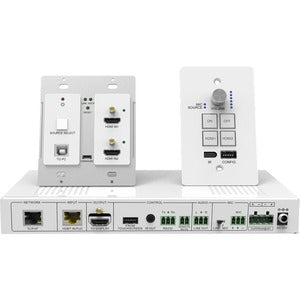

SIIG Wallplate HDMI HDBaseT Kit

The SIIG Wallplate HDMI HDBaseT Kit is a discreet, high-performance AV solution designed for modern education spaces, boardrooms, waiting rooms, and any environment that demands reliable, long-range HDMI delivery with simple source management. This wallplate-style system consolidates two HDMI source inputs into a single HDMI display pathway, extending signal transmission up to 30 meters while preserving video quality and delivering synchronized audio and microphone capabilities. Built for professional environments, the kit blends seamlessly into walls and podiums, delivering a clean, uncluttered installation without compromising performance. Whether you’re sharing a laptop presentation, a streaming device, or a media player, this kit makes it easy to switch between sources at the touch of a button, ensuring your message comes through loud and clear in spaces where clarity and reliability matter most.

• Dual HDMI source switching: Seamlessly select between two HDMI devices (such as laptops or media players) to display on a single HDMI monitor or projector, simplifying room layouts and reducing cable clutter.
• HDBaseT-enabled long-range delivery: Transmits high-definition video, audio, and control signals over a single Category cable up to 30 meters (approximately 98 feet), ideal for classrooms and conference rooms where displays are mounted at a distance from sources.
• Integrated audio output and microphone inputs: Built-in options to route HDMI audio to external systems and to connect microphones for conferencing, teaching, or presentations, delivering clear, synchronized sound alongside video.
• Compact wallplate design: A low-profile, flush-mount form factor that blends into any wall or lectern, providing a professional appearance while reducing equipment footprint and cable runs.
• Education, boardroom, and waiting room ready: Engineered to meet the demands of modern AV environments, with easy source selection, reliable performance, and a clean installation that keeps focus on the content being presented.

Technical Details of SIIG Wallplate HDMI HDBaseT Kit

• HDBaseT transmission distance: up to 30 meters (approximately 98 feet) over a single Cat5e/6/7 cable, providing robust, loss-tolerant video and audio delivery.
• Inputs and outputs: 2 HDMI input sources and 1 HDMI output to a display, enabling simple source management in a wall-mounted configuration.
• Audio and microphone integration: Supports HDMI audio output and dedicated microphone inputs for conferencing, education, or public addressing needs.
• Wallplate form factor: Slim, flush-mount enclosure designed for easy installation in standard wall boxes or mounting plates, delivering a clean, professional look.
• Compatibility and use cases: Optimized for education rooms, boardrooms, and waiting areas where two source devices must be switched efficiently without sacrificing signal quality.

How to install SIIG Wallplate HDMI HDBaseT Kit

• Plan the installation: Choose a convenient wall location near displays and sources, ensuring there is an accessible wall box or mounting surface for the wallplate, and confirm cable routing paths for HDMI and control signals.
• Mount the wallplate: Secure the wallplate into a compatible wall box or mounting surface, making sure it sits flush and aligns with surrounding panels for a neat, professional appearance.
• Connect HDMI sources: Attach HDMI Source A and HDMI Source B to the two HDMI input ports on the back of the wallplate, ensuring secure, fully seated connections for reliable signal integrity.
• Connect display and audio: Run a single HDMI cable from the wallplate’s HDMI output to the display (monitor or projector). If needed, route the wallplate’s audio output to an external audio system and connect any required microphones to the microphone inputs for conferencing or classroom use.
• Power and test: If the unit requires external power, connect the power supply and power on the system. Use the wallplate to switch between Source A and Source B, verifying that video and audio are correctly delivered to the display and that microphones function as intended.

Frequently asked questions

• Q: How many HDMI sources can I connect to the wallplate?
  A: The kit supports two HDMI input sources, enabling quick switching between two devices for presentations, lessons, or signage.
• Q: What is the maximum cable length for reliable HDMI transmission?
  A: The system is designed for HDMI HDBaseT extension up to 30 meters (approximately 98 feet) over a standard Category cable, which helps keep source desks close to equipment while displaying content at a distant screen.
• Q: Does the wallplate provide audio and microphone support?
  A: Yes. It includes audio output capabilities and dedicated microphone inputs, making it suitable for meetings, lectures, and training sessions without needing additional adapters.
• Q: Is this solution suitable for education and corporate environments?
  A: Absolutely. The compact wallplate design, two-source switching, and HDBaseT extension make it ideal for classrooms, conference rooms, and waiting areas where a clean, reliable AV setup is essential.
• Q: Do I need special software or drivers to operate the system?
  A: No software is required. The unit switches between the two HDMI sources directly via the wallplate controls, providing immediate source selection without setup complexity.
