Description

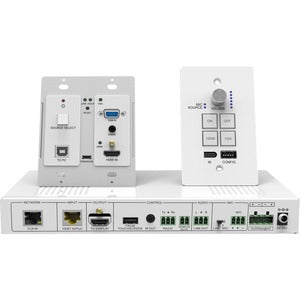

SIIG Wallplate HDMI/VGA HDBaseT Kit
Discover a sleek, high-performance AV solution designed for modern classrooms, boardrooms, and reception areas. The SIIG Wallplate HDMI/VGA HDBaseT Kit combines a compact wallplate transmitter and receiver with flexible source selection, robust long-distance transmission, and integrated audio—delivered through a clean, in-wall installation that preserves room aesthetics while delivering professional-grade video, audio, and conferencing capabilities. This kit is engineered to simplify AV integration, reduce clutter, and provide reliable, crystal-clear signal delivery from your HDMI or VGA sources to an HDMI display up to 30 meters away, all with synchronized audio and optional microphone inputs for interactive presentations and learning environments.
- Seamless source switching: The wallplate design lets you quickly select and switch between two input sources—one HDMI and one VGA—and display the chosen source on a single HDMI display. A convenient front-panel control makes it easy for teachers, presenters, or technicians to toggle inputs during a session without leaving the room or interrupting the flow of a presentation.
- Long-distance HDBaseT extension: Built around HDBaseT technology, this kit transports high-quality video, audio, and control signals over a single, cable-friendly link for up to 30 meters (approximately 98 feet). It minimizes cable clutter and installation complexity, making it ideal for rooms where displays are mounted far from the source equipment.
- Integrated audio and microphone capabilities: In addition to video, the system carries audio to the HDMI display and offers microphone input options for interactive use. This makes the kit perfect for classrooms and conference spaces that require enhanced audio capture and clear voice amplification during lectures, webinars, or collaborative sessions.
- Elegant wallplate form factor: The wallplate design fits discreetly into a standard wall box, delivering a clean, professional look that blends with modern interiors. Its compact footprint minimizes disruption to interior design while providing rugged, reliable AV connectivity that stands up to daily use in busy environments.
- Education and enterprise-ready versatility: Whether you’re outfitting a school, corporate training room, or a waiting area, this HDBaseT kit is engineered for dependable performance, flexible source management, and straightforward installation. It supports typical HDMI-enabled displays and integrates smoothly with existing projectors or large-format monitors used in teaching, training, and corporate communications.
Technical Details of SIIG Wallplate HDMI/VGA HDBaseT Kit
- Transmission technology: HDBaseT-based extender for uncompressed, high-quality video, audio, and control signals over a single cable
- Inputs: 1x HDMI input and 1x VGA input; Output: 1x HDMI output
- Maximum extension distance: Up to 30 meters (approximately 98 feet) from transmitter to receiver
- Audio features: HDMI audio passthrough with built-in audio output; supports microphone input for conferencing or interactive use
- Power requirements: External power supply required for both transmitter and receiver units
- Form factor: Wallplate transmitter and receiver designed for in-wall installation with a clean, space-saving profile
- Compatibility and usage: Suitable for education, boardrooms, waiting rooms, training facilities; supports standard HDMI resolutions as supported by connected sources and displays
How to Install SIIG Wallplate HDMI/VGA HDBaseT Kit
Installing the SIIG Wallplate HDMI/VGA HDBaseT Kit is designed to be straightforward for AV professionals and capable on-site installers. Follow these steps to achieve a clean, reliable setup that delivers crisp video, solid audio, and effortless source switching in classrooms, boardrooms, or public spaces.
- Plan your installation layout by identifying a central location for the wallplate transmitter and the HDMI display. Confirm the path for a single HDBaseT-enabled run capable of carrying both video and audio signals up to 30 meters, and ensure power supplies are accessible for the external adapters.
- Prepare the mounting locations by selecting the appropriate wall box or recessed enclosure. Confirm that your wallbox supports the wallplate footprint and that there is room for the required cabling behind the wall plate for a clean, flush finish.
- Connect the input sources to the wallplate transmitter: plug the HDMI source into the HDMI input and the VGA source into the VGA input. Use high-quality, shielded cables to minimize interference and preserve signal integrity over the distance.
- Route a single HDMI output cable from the transmitter to the HDMI input on your display or projector. If your installation requires audio integration with external speakers, connect the wallplate’s audio output to the appropriate audio system or amplifier as needed.
- Attach any microphones or conferencing accessories to the wallplate’s microphone input (where applicable) or route to an audio input on your conferencing system. Secure all cables to prevent strain or accidental disconnection during use.
- Power up the system by connecting the transmitter and receiver to their external power supplies. Verify that the display is receiving the selected input and that audio and microphone signals are properly routed and synchronized with the video signal.
- Test switching between HDMI and VGA inputs to ensure the front-panel control (or the intended method of selection) reliably changes the source without lag or signal degradation. Validate 30-meter transmission by performing a room-scale test to confirm video clarity and audio quality at the display end.
- Secure the wallplates and cabling, tidy the installation area, and document the configuration for future maintenance. If needed, calibrate any display settings to optimize color accuracy, brightness, and audio levels for the room’s specific acoustics and lighting conditions.
Frequently Asked Questions
- Q: What sources can I connect to the SIIG Wallplate HDMI/VGA HDBaseT Kit? A: The transmitter supports one HDMI source and one VGA source. You can switch between these two sources to display on a single HDMI monitor, projector, or display.
- Q: How far can I extend the signal? A: The system is designed to extend up to 30 meters (approximately 98 feet) over HDBaseT, depending on cable quality and environmental conditions.
- Q: Does it carry audio and microphone signals? A: Yes. The kit includes HDMI audio output and supports microphone inputs for conferencing, teaching, and interactive sessions, enabling clear, synchronized sound with the video signal.
- Q: What about mounting and installation? A: The wallplate transmitter and receiver are intended for in-wall, flush installation in standard wall boxes. Ensure you have the appropriate mounting hardware and proper cable routing behind the wall for a neat, professional finish.
- Q: Is this kit suitable for educational and corporate environments? A: Absolutely. The design emphasizes reliability, easy source switching, and clean aesthetics, making it highly suitable for schools, training rooms, boardrooms, waiting areas, and other spaces that require flexible AV distribution with a tidy appearance.
