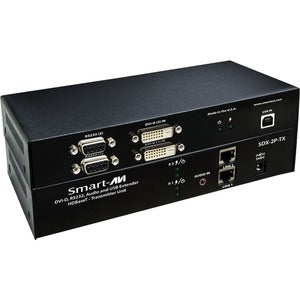

SmartAVI HDBaseT Dual DVI-D + USB + RS232 + Audio Extender

Experience true long-range multimedia extension with the SmartAVI SDX-2P HDBaseT Dual DVI-D + USB + RS232 + Audio Extender. Harnessing HDBaseT technology, it can transport dual DVI-D video signals along with USB peripherals, RS232 control, and audio over two standard CAT5e/6 cables up to 400 feet (approximately 122 meters). This design eliminates the need for costly shielded cables while delivering crisp, high-definition video to multiple displays in conference rooms, classrooms, retail environments, and digital signage networks. The SDX-2P is built for reliability and ease of installation, offering a scalable solution for modern AV setups that demand flexibility, centralized control, and high-quality video across sizable spaces.

• Long-range HDBaseT extension: Transmit two DVI-D video streams, plus USB, RS232, and audio, up to 400 feet away using standard CAT5e/6 cables—no expensive shielded cabling required. The HDBaseT protocol provides robust signal integrity, simplified routing through walls or racks, and better resistance to interference compared with older DVI extenders. This makes it ideal for boardrooms, auditoriums, and digital signage where distance matters.
• Dual DVI-D video support: Send two high-definition DVI-D signals from a single transmitter to a pair of displays, enabling mirrored content or independent streams for multi-monitor presentations. Whether you’re delivering a single presentation across two screens or displaying complementary content on each display, the SDX-2P keeps visuals sharp and synchronized.
• Comprehensive multimedia pass-through: USB, RS232, and audio passthrough are supported along with the DVI-D video signals, allowing you to connect keyboards, mice, control devices, speakers, or other peripherals without compromising signal quality. This functionality is especially useful for interactive kiosks, lecture halls, and control rooms where centralized management and multimedia integration are critical.
• Plug-and-play installation: Designed for straightforward deployment by IT staff, installers, or power users, the extender pairs quickly with minimal configuration. Its user-friendly setup reduces downtime during room conversions, renovations, or new deployments, enabling fast, reliable setup for regular AV schedules or spontaneous events.
• Flexible CAT5e/6 cabling: Leverage common, affordable Ethernet cabling to achieve dependable performance while maintaining easy routing behind furniture, in ceiling spaces, or within rack enclosures. The SDX-2P provides a practical blend of cost efficiency and performance for growing multi-display or multi-room installations.

Technical Details of SmartAVI HDBaseT Dual DVI-D + USB + RS232 + Audio Extender

• Technology: HDBaseT-based extender designed to carry dual DVI-D video and multimedia signals over standard category cables.
• Distance: Up to 400 feet (approximately 122 meters) when using two CAT5e/6 cables, enabling broad coverage across rooms or adjacent spaces.
• Video support: Dual DVI-D video channels, allowing either mirrored content across two displays or independent streams for separate outputs.
• Interfaces: DVI-D input/output on the transmitter and receiver, plus USB, RS232, and audio pass-through to support peripherals, control devices, and audio devices.
• Cabling: Uses two conventional CAT5e/6 cables, avoiding the need for specialty shielded cables for the stated distance.
• Power: External power supplies are required for both transmitter and receiver units to operate the HDBaseT link.

How to install SmartAVI HDBaseT Dual DVI-D + USB + RS232 + Audio Extender

• Step 1: Connect the SDX-2P transmitter to your video source using DVI-D cables, routing any USB peripherals and audio devices to the transmitter as needed for pass-through.
• Step 2: Run two CAT5e/6 cables from the transmitter to the receiver, ensuring the cables are neatly routed and meet any building code requirements for in-wall or in-ceiling installation.
• Step 3: Attach the receiver to your display(s) with DVI-D cables from the receiver’s DVI-D outputs, and connect any local audio devices or controllers as required for your setup.
• Step 4: Connect power adapters to both the transmitter and receiver units and plug them into a suitable power source to enable the HDBaseT link.
• Step 5: Power on the source device and displays, then verify the image and audio are present on the displays. If necessary, adjust EDID settings, display arrangement, or control device connections to achieve the desired configuration.

Frequently asked questions

• Q: What is the maximum extension distance of the SDX-2P? A: Up to 400 feet (approximately 122 meters) over two CAT5e/6 cables using HDBaseT technology.
• Q: Can I pass USB devices through the extender? A: Yes. USB peripherals can be connected to the transmitter or configured for pass-through, enabling interaction with the connected computer or control system.
• Q: Do I need shielded CAT6 cables for this extender? A: No. The SDX-2P is designed to operate over standard CAT5e/6 cables within the specified distance.
• Q: Can I run two different video signals or must they be the same? A: The SDX-2P supports dual DVI-D channels, allowing either mirrored content on two displays or independent streams depending on your configuration.
• Q: Is setup designed to be user-friendly for non-technical users? A: Yes. The system emphasizes plug-and-play deployment with straightforward connections and minimal configuration.
