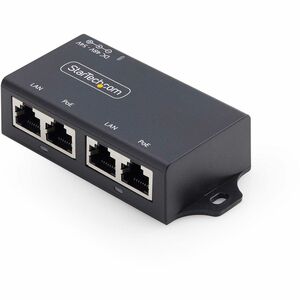

StarTech.com 2-Port PoE+ Injector – 30W, 802.3af/at, 1Gbps, Wall Mountable

Power over Ethernet (PoE) just got simpler with this StarTech.com 2-Port PoE+ Injector. Designed to be a compact, reliable Power Sourcing Equipment (PSE), it delivers both data and power over Ethernet to two Powered Devices (PDs) without the need for a full PoE switch. Supporting IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), this unmanaged injector is ideal for expanding network capabilities in small offices, retail spaces, and secure installation environments where space is at a premium. With multi-speed capability up to 1 Gbps, you can run IP cameras, wireless access points, VoIP phones, and other networked devices at full speed while keeping installation simple, tidy, and cost-effective. The wall-mountable design makes it easy to place in closets, utility rooms, or under desks, helping you maximize space, minimize cable clutter, and streamline maintenance.

• Dual-port PoE injector that powers two PDs simultaneously while maintaining data throughput. With a total budget of up to 30W, compatible with both PoE (802.3af) and PoE+ (802.3at) devices, it offers flexibility for current and future edge devices.
• Supports Ethernet speeds from 10 Mbps to 1000 Mbps, ensuring solid performance for a wide range of devices—from legacy IP cameras to high-speed wireless access points and VoIP systems.
• Long-range power and data delivery, delivering both power and data up to 100 meters (328 feet) to each PD. This makes it ideal for installations where the network device is located far from a power outlet or switch.
• Unmanaged, plug-and-play operation means no configuration is required. Simply connect to a network switch or router, attach PDs to the injector’s PoE ports, and power on. LED indicators simplify setup and ongoing monitoring.
• Space-saving, wall-mountable design built for discreet integration into compact environments. Its compact housing helps you keep critical cabling organized and accessible for maintenance or future upgrades.

Technical Details of StarTech.com 2-Port PoE+ Injector

• Standards supported: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), enabling compatibility with a broad range of PDs and future-proofing for growing networks.
• Ports: 2 x RJ-45 PoE+ output ports to power two devices simultaneously, providing flexible edge deployment without an external power source for each device.
• Data rate: Supports 10/100/1000 Mbps Ethernet throughput, ensuring reliable performance for both legacy devices and gigabit-capable equipment.
• Power budget: Up to 30W total across both ports, appropriate for common PoE-powered devices like cameras, APs, and phones within typical enterprise consumption.
• Distance: Up to 100 meters (328 feet) from injector to each PD, enabling versatile placement in rooms, hallways, or outdoor enclosures where power access is limited.
• Type: Mid-span inline PoE injector, designed to insert power into Ethernet cables without requiring a full PoE-enabled switch for every connection.
• Enclosure and mounting: Wall-mountable design to save space and simplify installation in tight spaces or equipment closets.
• Operation: Unmanaged and maintenance-free, providing reliable power and data transfer with minimal setup and ongoing management.

How to install StarTech.com 2-Port PoE+ Injector

Follow these practical steps to install the StarTech.com 2-Port PoE+ Injector quickly and confidently. The process is designed to be intuitive for IT staff, technicians, and office administrators alike, delivering a clean and dependable edge network solution.

Step 1: Determine placement. Choose a location near your network switch and near the devices you plan to power. If space is constrained, consider a wall-mountable position to keep cables tidy and accessible for maintenance.

Step 2: Connect the data path. Use a Cat5e/Cat6 Ethernet cable to connect the input port on the injector to a port on your network switch or router. This cable carries the data signal that will be forwarded to the Powered Devices (PDs).

Step 3: Attach the Powered Devices. Connect each PD to one of the injector’s two PoE output ports using high-quality Ethernet cables. Ensure that the PDs support IEEE 802.3af or IEEE 802.3at as required by the device’s power needs.

Step 4: Provide power to the injector. Plug the injector into a standard electrical outlet using the appropriate power supply. This step energizes the injector so it can simultaneously deliver power to the PDs and pass data through the Ethernet links.

Step 5: Verify operation. Check the LED indicators on the injector and the PDs to confirm power delivery and a healthy data connection. If a device fails to power on or establish a link, re-check cable connections, confirm PD compatibility, and ensure the devices are within the 100-meter range.

Step 6: Mount and organize. If desired, secure the injector to a wall or inside a cabinet using the mounting provisions. Route cables neatly to avoid interference or accidental disconnections and to keep airflow unobstructed for equipment behind the unit.

Frequently asked questions

• What devices can I power with this PoE+ injector? This dual-port injector supports IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at powered devices within a combined 30W budget. Verify each device’s power consumption to ensure you stay within the total limit.
• How far can I place PDs from the injector? Each PD can be powered up to 100 meters (328 feet) away from the injector, provided the Ethernet cable quality and wiring conditions meet standard PoE requirements.
• Is this injector compatible with PoE switches? Yes. It can operate alongside PoE-enabled switches or work independently to power PDs without a dedicated PoE switch for each device, offering flexibility in network design.
• Do I need to configure the injector? No. The injector is unmanaged and plug-and-play, designed for straightforward deployment. No software or firmware configuration is required for operation.
• Is the unit suitable for wall-mount installations? Yes. The injector is designed to be wall-mountable, making it a practical choice for compact spaces, network closets, or behind equipment racks where space is limited.
