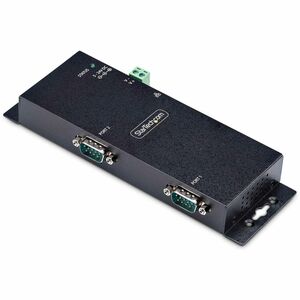

StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mount, LAN To DB9 Converter

Unlock the power of remote connectivity with the StarTech.com 2-Port Serial to Ethernet Adapter. This innovative IP Serial Device Server is designed to streamline the management and operation of RS232 devices over an IP-based network. Whether you are looking to enhance your POS systems, barcode readers, sensors, or CNC controllers, this device offers a reliable solution for seamless remote access and control. With its robust features and customizable options, the StarTech.com 2-port adapter is the ideal choice for businesses looking to modernize their serial device management.

• SERIAL TO IP CONVERTER: Connect up to two RS232 serial devices remotely over an IP-based network, facilitating remote access for POS systems, barcode readers, sensors, weighing systems, CNC controllers, and PLCs. The DB9 serial ports support speeds of up to 921.6Kbps, ensuring fast and reliable data transmission.
• ETHERNET AND POWER OPTIONS: This TAA-compliant converter features a single RJ45 10/100 Mbps Ethernet port that is compatible with auto-negotiation, allowing for flexible network connectivity. The serial device server operates seamlessly over Telnet (RFC2217), UDP, and TCP client/server protocols. Additionally, it includes a universal power adapter and supports providing 5V over pin 9 for added convenience.
• VIRTUAL COM AND WEBUI: Easily manage multiple serial device servers with the Windows-based Device Server Manager (DSM) software. This tool allows for the creation of virtual COM ports, enabling existing serial applications to migrate effortlessly to new virtual settings. The device is fully configurable through a user-friendly web interface, ensuring compatibility with various operating systems.
• MOUNTING OPTIONS: Installation is a breeze with the included mounting hardware for both wall and DIN rail setups. The StarTech.com adapter features multiple mounting holes allowing for installation in the most advantageous orientation for your application, providing the flexibility to fit in diverse environments.
• RUGGED ENCLOSURE: Built to withstand tough conditions, the adapter is housed in a robust all-metal enclosure that ensures durability and longevity. With dimensions of 7 x 2.3 x 0.9 inches (178 x 59.4 x 23 mm), it supports Level-4 ESD protection (15kV air/8kV contact) to safeguard against electrostatic discharge.

Technical Details of Product

• Product Type: 2-Port Serial to Ethernet Adapter
• Connection Type: DB9 Serial Ports
• Ethernet Port: RJ45 10/100 Mbps
• Protocols Supported: Telnet (RFC2217), UDP, TCP Client and Server
• Power Supply: Universal Power Adapter, supports 5V over pin 9
• ESD Protection: Level-4 (15kV air/8kV contact)
• Dimensions: 7 x 2.3 x 0.9 inches (178 x 59.4 x 23 mm)
• Installation: Wall and DIN Rail Mounting

How to Install

Installing the StarTech.com 2-Port Serial to Ethernet Adapter is straightforward. Follow these easy steps:

1. Unbox the adapter and gather the mounting hardware included in the package.
2. Determine the optimal location for installation, whether on a wall or DIN rail.
3. Use the included mounting holes to secure the adapter firmly in place.
4. Connect your RS232 serial devices to the DB9 ports on the adapter.
5. Plug the power adapter into the device, ensuring a secure connection.
6. Connect an Ethernet cable from the adapter's RJ45 port to your network.
7. Access the Device Server Manager (DSM) software to configure your settings and create virtual COM ports as needed.

Frequently Asked Questions

• What is the maximum data transmission speed supported by the DB9 ports? The DB9 serial ports support data transmission speeds of up to 921.6Kbps.
• Can this adapter work with non-Windows operating systems? Yes, the adapter is fully configurable through a web-based interface, making it compatible with mixed operating system environments.
• What mounting hardware is included with the adapter? The package includes all necessary hardware for wall and DIN rail mounting.
• Is the device suitable for outdoor installation? While it has a rugged metal housing, it is recommended for use in controlled environments to prevent exposure to harsh outdoor conditions.
• Does the adapter come with a warranty? Yes, the StarTech.com adapter typically comes with a limited warranty. Please check the product details for specific terms.
