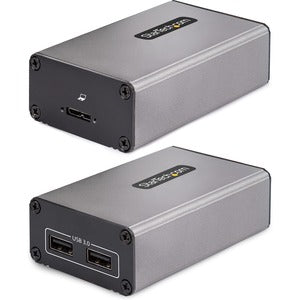

StarTech.com 2-Port USB 3.0 Extender over OM3 Multimode Fiber

Expand USB reach beyond traditional copper limits with the StarTech.com 2-Port USB 3.0 Extender over OM3 Multimode Fiber. This robust, high-performance solution is designed for environments where USB devices must operate far from the host computer, such as industrial control rooms, digital signage, laboratories, healthcare facilities, and secure data zones. By transmitting USB 3.0 signals (5Gbps Gen 1) over an OM3 multimode fiber link with LC/LC connectors, you can place peripherals like external hard drives, cameras, scanners, or HID devices up to 350 meters (1150 feet) away while preserving near-local USB performance. The system combines a transmitter and receiver with a built-in 2-port USB-A hub, enabling a convenient, point-to-point extension that minimizes latency, reduces EMI susceptibility, and simplifies cable routing in complex installations. Its durable metal housing is engineered to withstand demanding environments, while its plug-and-play design reduces installation time and avoids complicated configuration. Whether you’re updating an existing facility layout or deploying a new multimedia workstation in a remote location, this USB fiber extender provides a scalable, future-ready solution that grows with your needs.

• Delivers dual USB 3.0 (5Gbps) connections over a single OM3 multimode fiber link, enabling fast data transfers for external storage devices, high-definition webcams, audio interfaces, and other USB peripherals from a remote host.
• Extends USB signals up to 350 meters (1150 feet) using LC/LC fiber connectors, dramatically surpassing copper USB extenders and enabling flexible deployments across rooms, floors, or distant workstations.
• Two USB-A downstream ports on the receiver side provide convenient hub functionality, allowing you to connect multiple peripherals at the remote site without needing additional hubs or repeaters.
• Rugged, durable metal enclosure offers reliable operation in heat, dust, and vibration-prone environments, with EMI shielding to guard against interference from nearby equipment.
• Plug-and-play installation with optional external power for high-power USB devices; streamlined setup means minimal downtime and quick integration into existing IT or industrial networks.

Technical Details of StarTech.com 2-Port USB 3.0 Extender over OM3 Multimode Fiber

• USB interface: 2 x USB-A 3.0 ports (5Gbps) on the downstream side to support multiple USB devices at the remote end
• Fiber interface: LC to LC multimode fiber connectors for OM3 fiber cabling
• Distance supported: Up to 350 meters (1150 feet) over OM3 multimode fiber
• Fiber type and wavelength: OM3 multimode fiber optimized for 850 nm transmission
• Data rate: USB 3.0 Gen 1, up to 5Gbps theoretical throughput per link
• Enclosure: Durable metal housing designed for rugged usage and EMI protection
• Power requirements: External power supply recommended to ensure stable operation for power-demanding USB devices
• Topology: Point-to-point USB extension via fiber with built-in 2-port USB hub on the remote end

How to install StarTech.com 2-Port USB 3.0 Extender over OM3 Multimode Fiber

• Plan the installation by identifying the host (computer or controller) location and the remote USB device area; confirm fiber path is clear of excessive bending and physical hazards.
• Install the transmitter (TX) unit near the USB host and connect the host computer’s USB port to the TX unit’s USB-A port using a standard USB cable.
• Connect the receiver (RX) unit to the remote USB devices by plugging each peripheral into the RX unit’s two USB-A ports; ensure devices are compatible with USB 3.0 speeds.
• Join the TX and RX units with a compatible OM3 multimode fiber patch cable; ensure the fiber runs without sharp bends and that the LC/LC connectors are fully seated.
• Apply the appropriate external power supply to the transmitter and/or receiver if required by your USB devices; this ensures high-power peripherals (like external HDDs) receive adequate current.
• Power on both transmitter and receiver units; verify status LEDs indicate a healthy link and correct fiber connection before attaching any USB devices.
• Connect and test your USB devices at the remote end; perform file transfers and peripheral control checks to confirm stable operation across the fiber link.
• If needed, install any device-specific drivers on the host or ensure drivers are up to date; monitor the system for any USB errors and re-check fiber integrity if performance issues arise.

Frequently asked questions

• Q: What distance can this USB extender cover? A: The system supports up to 350 meters (1150 feet) over OM3 multimode fiber with LC/LC connections, making it suitable for long-distance USB deployments.
• Q: Can I connect USB 2.0 devices with this extender? A: Yes. The extender supports USB 3.0 (5Gbps) devices and is backwards compatible with USB 2.0/1.1 devices, though performance will align with the device’s USB specification.
• Q: Do I need an external power supply? A: External power is recommended for high-power devices or when full USB device performance is required; some low-power peripherals may operate without external power depending on the host capabilities.
• Q: Is this a KVM extender? A: This device functions as a USB extension with a built-in USB hub; it does not include keyboard-video-mouse (KVM) switching capabilities by default. You can use USB peripherals (mouse, keyboard, storage, etc.) across the link, but separate KVM functionality would require additional equipment.
• Q: What type of fiber is required? A: OM3 multimode fiber with LC connectors is required; ensure the fiber path maintains proper bend radius and that connectors are clean for optimal performance.
