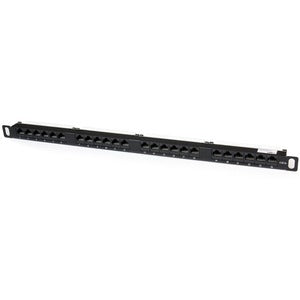

StarTech.com 24 Port 0.5U Cat5e Patch Panel - RJ45 Ethernet Rackmount Cat 5e 110 Patch Panel

Introducing the StarTech.com 24 Port 0.5U Cat5e Patch Panel, a perfect addition to your networking setup that optimizes space without sacrificing performance. Designed specifically for smaller installations, this high-quality patch panel delivers exceptional functionality and reliability for both voice and LAN applications. With a robust construction, easy installation, and clear labeling, this patch panel is an excellent choice for any networking professional.

• Compact and Efficient Design: The 0.5U form factor condenses 24 ports into a sleek panel, allowing for optimized use of rack space even in the tightest environments.
• Color-Coded Wiring: This patch panel is equipped with dual wiring standards, T568A and T568B, clearly marked to help ensure that installations are straightforward and error-free.
• Easy Identification: Each RJ45 port is clearly numbered, providing quick and convenient identification of cable runs, making troubleshooting and maintenance much simpler.
• Durable Construction: Built with high-impact plastic housing that is flame retardant (UL 94V-0), this patch panel is designed to withstand the rigors of daily use while ensuring safety and long-lasting performance.
• Meets Industry Standards: The StarTech.com patch panel meets and exceeds ANSI/TIA-568-C.2, ISO/IEC 11801, and EN 50173-1 specifications, ensuring that it provides reliable connectivity that you can trust.

Technical Details of Product

• Model: StarTech.com PANELHU24
• Port Count: 24 Ports
• Rack Mount: 0.5U
• Connector Type: RJ45 Ethernet
• Wiring Standards: T568A and T568B
• Termination Type: Dual-type IDC headers (110-type punch tool required)
• Construction: High-impact plastic housing, flame retardant UL 94V-0
• Warranty: 2 Years

How to Install

Installing the StarTech.com 24 Port 0.5U Cat5e Patch Panel is simple and straightforward. Follow these steps for successful installation:

1. Begin by selecting a suitable location in your rack for the patch panel. Ensure it is accessible for easy cable management.
2. Align the patch panel with the mounting holes of your rack and secure it using the provided screws.
3. Connect Ethernet cables to the rear of the patch panel, following the appropriate wiring standard (T568A or T568B) as needed.
4. Using the 110 punch-down tool, terminate the cables into the dual-type IDC headers located on the back of the panel.
5. Double-check all connections and ensure that each port is clearly labeled for easy identification.
6. Finally, connect your network devices to the front-facing RJ45 ports to complete the installation.

Frequently Asked Questions

• What is the difference between T568A and T568B wiring?
  The primary difference between T568A and T568B wiring is the arrangement of the color-coded wires. Both standards will work for Ethernet connections, but it’s essential to maintain consistency throughout your network.
• Can I use this patch panel for other types of cables?
  This patch panel is designed specifically for Cat5e cables. For optimal performance, it is recommended to use it with Ethernet cables that meet Cat5e specifications.
• Is this patch panel suitable for outdoor use?
  No, the StarTech.com 24 Port Cat5e Patch Panel is designed for indoor use only. For outdoor installations, consider using enclosures that protect networking equipment from the elements.
• What tools do I need for installation?
  You will need a 110 punch-down tool to terminate the cables and screwdrivers to mount the panel in your rack. Additional tools may be required for cable management.
• Does the patch panel come with a warranty?
  Yes, the StarTech.com 24 Port Cat5e Patch Panel is backed by a 2-year warranty, providing peace of mind for your purchase.
