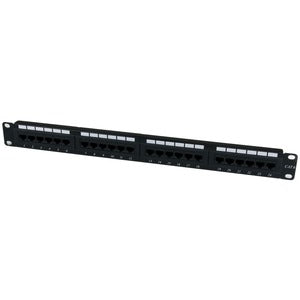

StarTech.com 24 Port 1U Rackmount Cat6 110 Patch Panel

The StarTech.com 24 Port 1U Rackmount Cat6 110 Patch Panel is engineered to deliver organized, high-performance network terminations for both voice and LAN applications. With 24 straight Cat6 ports and 110-type termination, this patch panel makes it effortless to manage, label, and deploy high-speed Ethernet connections in a standard 19-inch rack. Its color-coded design supports both T568A and T568B wiring schemes, giving you flexible compatibility with evolving networks while reducing the risk of mis-wiring during upgrades or maintenance. Built for durability and long-term reliability, this patch panel is the ideal backbone for data centers, small to mid-size offices, and server rooms that demand clean cable management and scalable performance.

• 24-port Cat6 patch panel in a 1U rackmount form factor to maximize rack density and keep your network room organized.
• 110-type termination for quick, secure terminations with standard punch-down tools, enabling reliable gigabit Ethernet performance.
• Color-coded labeling supports both T568A and T568B wiring schemes, simplifying upgrades, cross-connects, and mixed-wiring environments.
• Durable steel chassis designed for rackmount deployment in data centers, telecom rooms, and office networks, with sturdy build quality for long-term use.
• Ideal for voice and LAN applications, providing a clean, scalable, and easily navigable cabling backbone for growing networks.

Technical Details of StarTech.com 24 Port 1U Rackmount Cat6 110 Patch Panel

• Port count: 24
• Form factor: 1U rackmount
• Cable category: Cat6
• Termination type: 110-type
• Wiring support: Color-coded for T568A and T568B
• Port orientation: Straight Cat6 ports
• Chassis material: Durable steel
• Mounting: 19-inch rack-compatible
• Brand: StarTech.com

how to install StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel

Install in a standard 19-inch server rack or cabinet by aligning the patch panel with the vertical rack rails. Use the included mounting screws to secure the panel in place, ensuring it is level and stable within the rack space. Plan your cable runs first, labeling each conductor to match your network topology so that termination follows a clear scheme (T568A or T568B).

Prepare your Cat6 cables by trimming to the desired length, leaving a little slack for routing through cable management arms or ties. Route cables neatly to avoid sharp bends, and keep runs separate from power lines to minimize interference. As you approach the patch panel, strip back the outer jacket and separate the individual conductors in preparation for termination.

Terminate the cables using a standard 110-type punch-down tool. Follow the color-coding for the chosen wiring scheme (T568A or T568B) to insert each conductor into the corresponding slot on the 110 block. Double-check that each conductor seats firmly and does not bridge into adjacent slots. A clean termination ensures stable signal integrity and reduces the risk of crosstalk or data loss.

After all cables are terminated, connect the patch panel to the rest of your network by running patch cords from the patch panel ports to your network switch, router, or distribution frames as appropriate. Use labeling on the front of the panel to document port assignments for easy future maintenance. Finally, employ cable management accessories to secure slack and guide cables along the back of the rack, maintaining a tidy, accessible, and safe environment.

Test the completed installation with a reliable cable tester to verify continuity, pair integrity, and proper termination. Address any mis-wired or open circuits immediately by re-terminating affected ports. With proper testing and organization, the 24-port Cat6 110 patch panel delivers dependable performance across the network, supporting high-speed LAN traffic and voice services with minimal latency and excellent signal quality.

For ongoing reliability, periodically inspect the panel for loose connections or signs of wear in the termination blocks. A well-maintained patch panel reduces downtime, enhances troubleshooting efficiency, and preserves network performance as your organization scales. The combination of 24 ports, 1U form factor, and dual-wiring compatibility makes this patch panel a versatile solution capable of handling evolving network requirements without rework or hardware substitutions.

Frequently asked questions

Q: What is the purpose of a 110-type patch panel?

A: A 110-type patch panel provides a standardized termination block for Cat6 cabling, enabling clean, reliable terminations with a punch-down tool and facilitating straightforward cross-connects and network upgrades.

Q: Does this patch panel support both T568A and T568B wiring?

A: Yes. The panel is color-coded to accommodate either T568A or T568B wiring schemes, giving you flexible compatibility with existing installations and future changes.

Q: Can this be installed in a standard 19-inch rack?

A: Absolutely. It is designed for a 19-inch rack and requires 1U of vertical space, making it ideal for compact data centers, server rooms, and office network closets.

Q: Is Cat6 sufficient for Gigabit Ethernet and beyond?

A: Cat6 patch panels are designed to support Gigabit Ethernet and can handle higher speeds when paired with appropriate cabling and networking hardware, ensuring robust performance for modern LAN environments.

Q: Do I need special tools to terminate the cables?

A: A standard 110-type punch-down tool is typically used to terminate Cat6 conductors on 110 blocks. Always follow the wiring scheme you choose (T568A or T568B) to ensure clean, reliable terminations.
