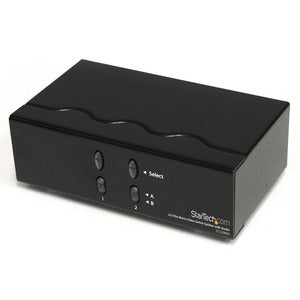

StarTech.com 2x2 VGA Matrix Switcher/Splitter with Audio

Engineered for flexible, professional-grade AV routing, the StarTech ST222MXA 2x2 VGA Matrix Switcher/Splitter delivers reliable video switching and audio management in a compact, durable package. This device lets you share two distinct VGA sources across two independent displays or projectors, with synchronized audio both directions. Whether you’re running a classroom lecture, a corporate presentation, a control room feed, or a home theater setup, this matrix switcher simplifies source management and presentation flow by eliminating the clutter of cable swaps. With front-panel push-button control, you can switch between sources quickly and confidently, ensuring you present the right content to the right screen at the exact moment you need it. The result is a cleaner rack, less downtime, and a more professional viewing experience for audiences of any size.

The ST222MXA brings you the practical benefits of a matrix switcher and a splitter in one compact unit. It supports two distinct VGA inputs and maps each to your choice of two displays, enabling independent routing to two outputs or mirroring one source to both displays as your application demands. This versatility is perfect for multi-display setups where you need to demonstrate, compare, or alternate between sources without moving cables around or reconfiguring complex signal paths. The integrated audio support further enhances the user experience by ensuring that high-quality audio accompanies the selected VGA source, making it easier to synchronize video with sound during presentations, lessons, or demonstrations.

Key features and benefits for your setup

• 2x2 VGA matrix switching — route two independent VGA sources to two displays or projectors with the freedom to choose which input goes to which output.
• Dual-output versatility — drive two screens from the same source or route different sources to different displays, enabling seamless side-by-side comparisons and multi-display presentations.
• Integrated audio support — preserves and maps the corresponding audio signal with each VGA input, so you can deliver synchronized video and sound across displays without extra hardware.
• Front-panel push-button control — quick, tactile switching that minimizes downtime during live presentations, training sessions, or classroom demonstrations.
• Compact, rugged design — built for everyday use in AV racks and classrooms, with a sturdy enclosure that fits neatly in small spaces while offering dependable signal integrity.

The ST222MXA is designed to handle standard VGA workflows with ease, providing a simple, reliable solution for environments where content needs to move smoothly between sources and displays. By consolidating source selection, display routing, and audio handling into a single device, it reduces setup time and helps presenters stay focused on the message rather than the hardware. Its intuitive operation complements more complex AV ecosystems, enabling effortless integration with existing equipment and workflows. In addition, its straightforward compatibility with common VGA peripherals ensures that teachers, executives, IT staff, and home theater enthusiasts can deploy it quickly, reducing the learning curve associated with multi-display configurations.

Technical Details of StarTech.com 2x2 VGA Matrix Video Switch Splitter with Audio

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

how to install StarTech.com 2x2 VGA Matrix Switch Splitter with Audio

Step 1: Power down all equipment before making connections to avoid damaging inputs or outputs. This includes your source devices, displays, and any audio peripherals.

Step 2: Connect the two VGA sources to Input 1 and Input 2 on the ST222MXA using standard VGA cables. Ensure they are firmly seated at both ends to minimize signal issues.

Step 3: Connect your two displays or projectors to Output A and Output B on the matrix switcher with VGA cables. Position cables neatly to reduce strain on connectors and maintain a clean installation.

Step 4: If you plan to use audio with your VGA sources, connect the corresponding audio signals to the switcher’s audio inputs, matching each input to its respective VGA source. This ensures that selecting a video input also provides synchronized audio on the chosen display.

Step 5: If the unit requires external power, connect the included power supply and verify the power indicator is active. Power up the connected displays and sources, then use the front-panel push-buttons to route the desired input to each output.

Step 6: Test each combination of inputs and outputs to confirm that video appears on the correct display and that audio follows appropriately. Make any necessary cable management adjustments to ensure stable operation during use.

Frequently asked questions

Q: What is the StarTech ST222MXA best used for?

A: It’s ideal for environments where two VGA sources must be shared between two displays or projectors with synchronized audio—such as classrooms, conference rooms, control centers, and home entertainment setups—allowing seamless switching without unplugging cables.

Q: Do I need software to operate the matrix switcher?

A: No software is required. The ST222MXA uses front-panel push-buttons for direct, hardware-based switching, making it quick and reliable in any live or noisy presentation environment.

Q: Can different sources be shown on different displays at the same time?

A: Yes. The matrix switching functionality supports routing each input to the desired output independently, enabling different sources to appear on separate displays or projectors as your presentation demands.

Q: What about audio compatibility and quality?

A: The device includes audio routing that accompanies the VGA inputs. This allows synchronized video and audio across displays, enhancing the overall viewing experience in meetings, classrooms, and demonstrations. For best results, use quality VGA cables and properly matched audio connectors to minimize interference and maintain signal integrity.

Q: What resolutions are supported?

A: VGA is an analog standard, and compatibility depends on the input sources and display capabilities. The matrix switcher is designed to preserve signal integrity for typical VGA resolutions supported by standard displays. If you require a specific resolution, check your source and monitor compatibility to ensure reliable operation at that setting.
