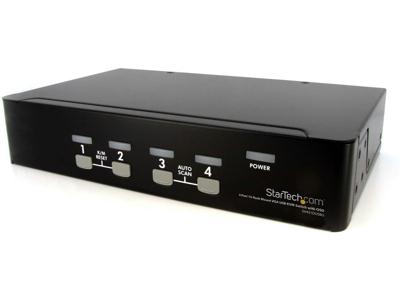

StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD

The StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD is a powerful tool designed to streamline your computing experience. This advanced KVM switch allows you to control multiple USB-based computers using a single console, making it an essential device for IT professionals and anyone who needs to manage several systems simultaneously. With its compact 1U design, this KVM switch fits perfectly into standard server racks, ensuring that your workspace remains organized and efficient.

• Multiple Computer Control: Effortlessly manage up to four USB-based computers from a single setup. This KVM switch allows you to switch between connected systems via convenient push-button controls or hot-key commands, making it straightforward to access the computer you need.
• On-Screen Display (OSD): The integrated OSD gives you additional control capabilities, allowing you to easily identify and select connected computers by the names you assign. This feature enhances usability and simplifies navigation between systems.
• Space-Efficient Design: With a slim 1U form factor, the KVM switch is designed to fit neatly into server racks or cabinets. Optional mounting brackets are available, allowing for easy installation while minimizing cable clutter and ensuring a clean workspace.
• Advanced Switching Options: Choose between manual push-button switching, hot-key commands, and an auto-scan feature that sequentially selects computers. This flexibility ensures quick access to any connected system, optimizing your workflow.
• High Resolution Support: The KVM switch supports a wide range of screen resolutions, including widescreen (up to 1920x1200) and 4:3 formats (up to 1920x1440). This capability ensures that you can maintain high-quality visuals while managing multiple computers.

Technical Details of the Product

• Model: SV431DUSBU
• Number of Ports: 4
• Design: 1U Rackmountable
• Connectivity: USB console connections
• Supported Resolutions:
  • Widescreen: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
  • 4:3: 1920x1440, 1600x1200, 1280x1024, 1024x768
• Security: OSD security with password protection for each PC
• Warranty: 3-year warranty with free lifetime technical support

How to Install

Installing the StarTech.com 4 Port 1U Rackmount USB KVM Switch is a straightforward process:

1. Unpack the KVM switch and optional mounting bracket.
2. Connect the USB and VGA cables from each computer to the corresponding ports on the KVM switch. Ensure you use compatible 2-in-1 USB VGA cables available from StarTech.com.
3. If using the optional mounting bracket, secure the KVM switch into your server rack or cabinet.
4. Connect your USB keyboard, USB mouse, and monitor to the KVM switch’s console ports.
5. Power on the connected computers and the KVM switch. You should now be able to switch between computers using the push-button controls or hot-key combinations.

Frequently Asked Questions

• Do I need any special drivers to use the KVM switch?
  No, the StarTech.com KVM switch is OS independent and requires no additional drivers or software.
• Can I password-protect the computers connected to the KVM switch?
  Yes, the OSD feature allows you to set up password protection for each connected PC for enhanced security.
• What type of cables do I need to use with this KVM switch?
  You will need specific 2-in-1 USB VGA cables, which are sold separately. StarTech.com offers a range of compatible cables in different lengths.
• Can I use this KVM switch without a monitor?
  While it's possible to operate the switch without a monitor, having one connected is essential for visual feedback and ease of use when switching between computers.
• Is the KVM switch compatible with Mac and Windows computers?
  Yes, the StarTech.com KVM switch is compatible with both Mac and Windows computers, making it versatile for various systems.
