Description

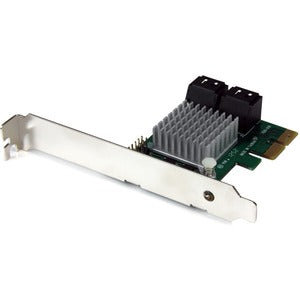

The StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering is a powerful solution designed for users who wish to elevate their storage capabilities. This advanced RAID controller card not only adds additional SATA ports but also integrates innovative technologies that optimize performance, making it the perfect choice for both casual users and professionals alike.
- Enhanced Storage Capacity: Expand your computer's storage significantly with four additional AHCI SATA III ports. This controller card supports up to seven drives, allowing you to connect multiple SSDs and HDDs efficiently.
- HyperDuo Technology: Experience intelligent SSD auto-tiering with HyperDuo, which automatically moves frequently accessed files to the SSD. This ensures faster data access and optimizes performance, leveraging up to 80% of the SSD throughput.
- Flexible RAID Solutions: The controller card supports various RAID levels including 0, 1, and 1+0. Customize your drives for enhanced data protection and superior performance, giving you peace of mind with your data integrity.
- Port Multiplier Support: Maximize performance and reduce cable clutter through Port Multiplier technology, allowing for efficient connection of multiple SATA drives via a single port.
- Easy Installation: With a low-profile/half-height installation bracket included, the StarTech.com RAID controller card is compatible with a wide range of systems for hassle-free installation.
Technical Details of Product
- Product Type: PCI Express SATA Controller Card
- Port Count: 4 AHCI SATA III (6Gbps) ports
- Compatible with: PCI Express 2.0
- RAID Levels Supported: 0, 1, 1+0
- Drive Compatibility: SATA III, SATA II, and SATA I
- Data Throughput: Up to 6Gbps per port
- Native Command Queuing (NCQ): Supported
- Operating System Compatibility: Windows
- Warranty: 2-year limited warranty with free lifetime technical support
How to Install
- Power down your computer and unplug it from the electrical outlet.
- Open the computer case to access the PCI Express slots on the motherboard.
- Locate an available PCIe x2 slot and gently insert the StarTech.com SATA controller card into the slot.
- Secure the card with the appropriate screws to ensure a stable connection.
- Connect the SATA drives to the appropriate SATA ports on the controller card.
- Close the computer case and reconnect the power supply.
- Power on your computer and enter the BIOS settings to configure the RAID options as desired.
- Install any necessary drivers from the StarTech.com website, if prompted by your operating system.
Frequently Asked Questions
- What is HyperDuo technology? HyperDuo is a smart SSD auto-tiering technology that combines SSDs with HDDs to optimize storage performance and capacity by automatically moving frequently accessed files to the SSD.
- Can I use this card with my existing SATA drives? Yes, the StarTech.com SATA controller card is backwards compatible with SATA I and II drives while providing enhanced performance for SATA III drives.
- What operating systems are compatible with the card? The card is primarily compatible with Windows operating systems. Make sure to check the StarTech.com website for any specific driver requirements.
- How many drives can I connect to the card? You can connect a total of seven drives: four drives directly to the SATA ports and up to three additional drives through Port Multiplier technology on a single port.
- Is there any warranty offered with this product? Yes, the StarTech.com 4 Port PCI Express SATA controller card comes with a 2-year limited warranty and free lifetime technical support.
