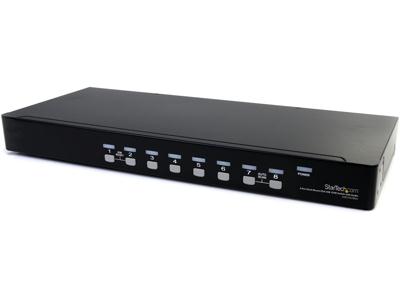

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio

The StarTech.com 8 Port Rackmount USB VGA KVM Switch with Audio is an ideal solution for anyone looking to manage multiple USB computers efficiently. With its advanced features and robust design, this KVM switch allows users to control up to eight computers from a single workstation, simplifying both operations and workspace management. Whether you're a tech enthusiast or a professional looking to streamline your setup, this KVM switch is the perfect choice.

• Efficient Control: Manage up to 8 USB computers using just one keyboard, mouse, and monitor. This KVM switch enables seamless switching between systems, making multitasking a breeze.
• Audio and Microphone Support: Equipped with dedicated audio and microphone ports, this switch allows you to effortlessly switch between audio signals, enhancing your multimedia experience.
• Space-Saving Design: The 1U rack mountable slim form factor maximizes your workspace by utilizing rear cable connections, ensuring a tidy and organized setup.
• Scalability: Easily cascade multiple KVM units together to control up to 64 computers, providing a highly scalable solution that can grow with your needs.
• User-Friendly Operation: Features such as automatic and manual scan modes, hot-key and front panel push-button switching, and an on-screen display (OSD) for configuration make it easy to operate.

Technical Details:

- Model: SV831DUSBAU
- Ports: 8 USB VGA ports
- Rackmount: 1U Slim Design
- Audio Support: Yes (Includes audio and microphone ports)
- Supported Resolutions:

• Wide Screen: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
• 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768

- Cascading: Yes, supports up to 64 computers
- OSD: Yes, with security features
- Warranty: 3-year warranty with free lifetime technical support

How to Install:

1. Ensure that all computers are powered off before connecting them to the KVM switch.
2. Connect the 2-in-1 VGA and USB cables (sold separately) from each computer to the respective ports on the KVM switch.
3. Connect your keyboard, mouse, and monitor to the KVM switch using the designated console ports.
4. If using audio, connect the audio output from the KVM switch to your speakers or headset.
5. Power on the KVM switch and then power on your computers. You can now switch between systems using the hotkeys or front panel buttons.

Frequently Asked Questions:

1. What type of cable do I need to use with the SV831DUSBAU?

The KVM switch requires specific 2-in-1 VGA and USB cables that are sold separately. Recommended options include:

• 6ft Ultra Thin USB VGA 2-in-1 KVM Cable
• 10ft Ultra Thin USB VGA 2-in-1 KVM Cable
• 15ft Ultra Thin USB VGA 2-in-1 KVM Cable

2. Can I connect more than 8 computers?

Yes, you can cascade multiple KVM switches together to manage up to 64 computers in total.

3. Is the KVM switch compatible with all operating systems?

The StarTech.com KVM switch is compatible with most operating systems, including Windows, Linux, and macOS. However, it is recommended to check compatibility based on your specific setup.

4. What resolutions are supported by this KVM switch?

The KVM switch supports a variety of resolutions, including wide-screen and 4:3 formats, ensuring compatibility with most monitors.

5. What kind of technical support is provided?

StarTech.com provides free lifetime technical support along with a 3-year warranty, ensuring you can get help whenever you need it.
