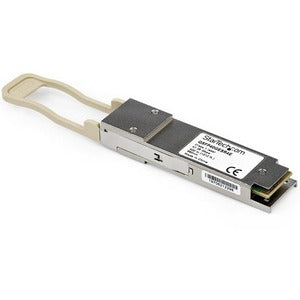

StarTech.com Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module — 40GBASE-SR4 Fiber Transceiver

The StarTech.com Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module is a purpose-built, plug-and-play fiber transceiver designed to deliver reliable 40 Gigabit Ethernet connectivity on multimode fiber networks. Engineered to be fully compatible with Dell EMC brand switches and routers, this QSFP+ module ensures seamless, high-performance operation in data centers, uplinks, and high-density switching environments. Built to meet or exceed industry standards for QSFP+ 40GBASE-SR4, it provides robust performance, excellent compatibility, and an affordable option for expanding or upgrading 40G connectivity across your Dell EMC infrastructure.

• Dell EMC compatibility — Tested, programmed, and validated to work with Dell EMC switches and routers, ensuring seamless integration and reliable operation in mixed-brand or Dell-only deployments.
• 40GBASE-SR4 over MMF — Delivers high-speed 40 Gigabit Ethernet transmission across multimode fiber using the SR4 4-lane parallel design, ideal for data center uplinks and campus backbone connections.
• QSFP+ form factor with DDM — A standard QSFP+ transceiver that supports Digital Diagnostic Monitoring (DDM) for real-time health and link information, enabling proactive management and quick troubleshooting.
• Up to 150 meters on MMF — Optimized for multimode fiber links, enabling scalable, cost-effective connections within data centers and server closets without sacrificing performance.
• Plug-and-play upgrade — Designed for easy installation with compatible Dell EMC devices, reducing downtime and enabling rapid deployment of high-speed 40 GbE links across your network.

Technical Details of StarTech.com Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module

• Interface: QSFP+ (4x10 Gbps lanes) supporting 40GBASE-SR4
• Fiber type: Multimode Fiber (MMF) suitable for SR4 transmission
• Wavelength: 850 nm (typical SR4 interface specification)
• Distance: Up to 150 meters over MMF, depending on fiber type and installation conditions
• DDM support: Digital Diagnostic Monitoring available for real-time optics health data
• Form factor: QSFP+ hot-swappable transceiver module for easy field replacement
• Compliance: Designed to meet QSFP+ and 40GBASE-SR4 specifications; compatible with Dell EMC certified devices
• Operating environment: Standard optical transceiver operating parameters compatible with typical data center cooling and power provisions

How to install StarTech.com Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module

Installing this QSFP+ transceiver is straightforward and designed to minimize downtime while maximizing performance. Follow these general steps to ensure a successful deployment in compatible Dell EMC environments:

1) Power down or prepare the device as per your data center protocol. If you are replacing an existing module, ensure the system is prepared for hot-swapping if supported by the chassis and switch.

2) Identify the correct QSFP+ slot on the Dell EMC switch or router that supports 40GBASE-SR4 connections. Check your device’s documentation for slot compatibility, insertion orientation, and any slot-specific constraints.

3) Align the module with the slot and gently insert it until it seats securely. Do not force the module; a proper click or seating indication should confirm a successful installation.

4) Connect the MMF fiber cables to the transceiver’s LC connectors, ensuring the fiber type (OM3/OM4, as applicable) matches your SR4 link requirements. Use the correct fiber polarity and maintain clean, secure connections to minimize insertion loss.

5) If your system supports Digital Diagnostic Monitoring, verify DDM readings through the device’s management interface to confirm linkage, temperature, supply voltage, and optical power levels are within expected ranges. Power up the device if you powered it down for the installation and monitor the link status.

6) Validate the 40G link by running end-to-end throughput tests, latency measurements, and error checks. Monitor for any alarms or alerts in the management software and review DDM data to preempt potential issues.

7) Document the installation for future reference, including the exact module model, slot location, fiber type, link distance, and test results. This helps in rapid troubleshooting and future maintenance or upgrades.

From a best-practices perspective, ensure your fiber infrastructure uses properly terminated MMF cables with secure LC connectors and strain relief. Maintain clean connectors and avoid bending fibers beyond recommended radii to preserve signal integrity. For Dell EMC environments, pairing this StarTech.com module with compatible switches and routers helps guarantee a stable 40 GbE transport layer with predictable performance characteristics.

Frequently asked questions

• Q: Is this StarTech.com QSFP-40G-SR4 module truly Dell EMC compatible?
  A: Yes. It is designed, programmed, and tested to work with Dell EMC brand switches and routers, providing reliable 40 GbE connectivity with Dell EMC equipment.
• Q: What fiber type and distance does it support?
  A: It is a multimode fiber (MMF) SR4 transceiver and can reach up to 150 meters on appropriate MMF cables, depending on fiber grade (OM3/OM4) and installation conditions.
• Q: Does it support digital diagnostic monitoring (DDM)?
  A: Yes. It includes DDM support, enabling real-time monitoring of optical power, temperature, and other critical parameters for proactive maintenance.
• Q: Is installation difficult for a standard data center technician?
  A: No. The module uses a standard QSFP+ form factor and is designed for plug-and-play installation in compatible Dell EMC devices. Basic handling and clean fiber practices are recommended.
• Q: Can I mix this module with other manufacturers’ 40GBASE-SR4 transceivers?
  A: In Dell EMC networks, it’s generally best to use compatible modules to ensure unified management and predictable performance. This StarTech.com module is specifically tested for Dell EMC compatibility, which helps minimize interoperability concerns.
• Q: Does this module come with a warranty?
  A: Warranty terms vary by seller and region. Check the vendor’s warranty policy at the time of purchase to confirm coverage duration and support options for the transceiver.
