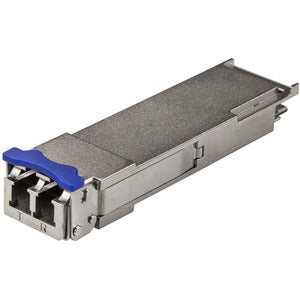

StarTech.com Extreme Networks 10320 Compatible QSFP+ Module — 40GBASE-LR4

Designed to deliver dependable, high-performance 40 Gigabit Ethernet over single-mode fiber, this StarTech.com QSFP+ module is specifically compatible with Extreme Networks 10320 switches and routers. The 40GBASE-LR4 transceiver combines robust build quality with precise engineering to ensure reliable, long-range connectivity in data centers, enterprise backbones, and high-demand network environments. This module is engineered, programmed, and tested to work seamlessly with Extreme Networks brand hardware, providing peace of mind and a straightforward upgrade path for organizations seeking to scale their networks to 40G speeds without compromising interoperability.

• 40GBASE-LR4 QSFP+ transceiver for high-density 40 GbE links over single-mode fiber (SMF).
• Reach up to 10 kilometers on SMF, making it ideal for campus backbones, data center interconnects, and long-haul links.
• Digital Diagnostic Monitoring (DDM) support for real-time visibility into link health, temperature, optical power, and other critical operating parameters.
• Extreme Networks 10320 compatibility: tested and tuned to deliver reliable performance with compatible Extreme Networks switches and routers.
• MSA-compliant QSFP+ form factor with hot-swappable design, enabling easy upgrades and minimal downtime in busy data-center environments.

Technical Details of StarTech.com Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4

• Product Type: QSFP+ transceiver module
• Standard: 40GBASE-LR4
• Data Rate: 40 Gbps (4 x 10 Gbps lanes)
• Wavelength: 1310 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Reach: Up to 10 km
• Diagnostic Monitoring: Digital (DDM) supported
• Form Factor: QSFP+; Interface aligns with standard QSFP+ port connectivity
• Compatibility: Certified or tested for use with Extreme Networks 10320 series equipment

how to install StarTech.com Extreme Networks 10320 Compatible QSFP+ Module

To install and deploy this 40GBASE-LR4 QSFP+ module, follow these best practices for a smooth, downtime-minimizing upgrade:

• Power down the device or port where you plan to install the QSFP+ module, or follow your vendor’s hot-swap procedures if the switch supports hot-swapping.
• Insert the QSFP+ transceiver firmly into the available QSFP+ slot until it seats with a click, ensuring the connectors are clean and free of debris.
• Connect the appropriate single-mode fiber optic cable to the transceiver’s fiber interface, using the correct breakout or MPO-to-LC breakout cables as required by your deployment scenario.
• Power on the device or return it to service, then verify the link status on the switch and check that the 40GBASE-LR4 port comes online with the expected speed.
• Utilize the DDMM (Digital Diagnostic Monitoring) data to monitor optical power, temperature, and other parameters, and adjust link settings or replacement if you notice deviations from normal operating ranges.

Frequently asked questions

• Q: What is 40GBASE-LR4? A: 40GBASE-LR4 is a 40 Gigabit Ethernet transceiver standard that uses four 10 Gb/s lanes over single-mode fiber, typically supporting distances up to about 10 kilometers depending on fiber quality and connectors.
• Q: Is this module compatible with my Extreme Networks 10320 switch? A: Yes. The module is designed, programmed, and tested to work with Extreme Networks brand switches and routers, specifically including the 10320 series, ensuring reliable interoperability.
• Q: Does the transceiver support Digital Diagnostic Monitoring (DDM)? A: Yes. DDM provides real-time data on parameters such as optical power, temperature, laser bias, and transceiver health for proactive maintenance.
• Q: What kind of fiber optic cable do I need? A: You will need single-mode fiber (SMF) with the appropriate connector configuration (commonly LC or MPO/MTP with breakout cables, depending on your network design). Confirm your patch panel and host device requirements before purchasing cables.
• Q: Can I use this module as a direct drop-in replacement? A: In most cases, this module is intended as a compatible replacement for Extreme Networks 10320 environments, but always verify compatibility with your exact switch model, firmware version, and any required vendor advisories before installation.
