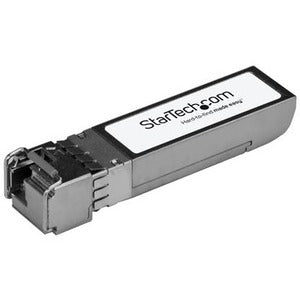

StarTech.com HPE JD094B-BX-D Compatible SFP+ Module - 10GBASE-BX BiDi SMF Transceiver

Elevate your 10 Gigabit Ethernet deployments with the StarTech.com HPE JD094B-BX-D compatible SFP+ module. Engineered to pair seamlessly with HP JD094B-BX-D and JD094B-BX-U-ST hardware, this 10GBASE-BX BiDi SMF transceiver delivers reliable, high-performance fiber connectivity for data centers, campuses, and enterprise networks. Designed, programmed and tested to ensure interoperability with HP switches and routers that support 10GBASE-BX, it provides a plug-and-play upgrade path that minimizes downtime while maximizing throughput and efficiency. Whether you're refreshing an aging link, expanding a backbone, or building a new high-speed fiber network, this SFP+ transceiver is built to meet the demands of modern, bandwidth-hungry applications.

• Compatibility and interoperability: Specifically designed to work with HP JD094B-BX-D devices and StarTech.com's JD094B-BX-U-ST pairings. This module has been tested to deliver reliable 10GBase-BX performance with HP switches and routers, ensuring smooth integration into existing JD094B-BX-D-based networks without complex configuration.
• BiDi design for fiber efficiency: Bi-directional (BiDi) operation over a single fiber strand reduces fiber count and simplifies cabling. By multiplexing TX and RX signals over a single SMF fiber, you can extend reach and simplify your cabling architecture without compromising bandwidth or signal integrity.
• High-speed 10 Gbps performance: Supports 10GBASE-BX transceiver operation, delivering full-duplex 10 Gigabit Ethernet for rapid data transfer, low latency, and improved application performance across storage networks, clustering, and virtualization environments.
• Single-mode fiber (SMF) compatibility: Optimized for long-distance links on SMF networks, the module enables robust transmission over standard single-mode fiber cabling, enhancing link budgets and reliability in campus backbones and data-center interconnects.
• Plug-and-play reliability and form factor: SFP+ form factor ensures easy installation into standard SFP+ ports, with hot-swappable deployment to minimize maintenance downtime. It’s designed for quick replacement in both blade and switch/router environments without bespoke adapters.

Technical Details of StarTech.com HPE JD094B-BX-D Compatible SFP+ Module

• Interface and speed: SFP+ transceiver module configured for 10GBASE operation, delivering full-duplex 10 Gigabit Ethernet performance over BiDi SMF links.
• Fiber type: Single-Mode Fiber (SMF) compatible, ideal for longer-distance links and backbone connectivity where reduced fiber count and interference are prioritized.
• BiDi wavelengths: BiDi Tx/Rx wavelengths tuned for the 1310/1550 nm pair, enabling efficient bidirectional communication on a single fiber strand while maintaining proper isolation and signal integrity between transmit and receive paths.
• Compatibility footprint: Verified compatibility with HP JD094B-BX-D and JD094B-BX-U-ST platforms—a trusted option for HP-based networks seeking reliable StarTech.com interoperability.
• Form factor: Standard SFP+ module design to fit into any SFP+ slot, enabling straightforward upgrades and replacements in existing switches, routers, and media converters that support 10GBASE-BX BiDi transceivers.
• Operating considerations: Optimized for enterprise and data-center environments with typical industrial-grade reliability. Ensure proper fiber polarity and clean LC connectors to maximize link reliability and performance.

How to Install StarTech.com HPE JD094B-BX-D Compatible SFP+ Module

Installing this StarTech.com SFP+ module is a straightforward, plug-and-play process. Follow these steps to ensure a successful deployment and maximize your link reliability:

Step 1 — Power down or prepare for hot-swap: If your hardware supports hot-swapping, you can install without powering down the chassis. If not, power down the device according to your equipment’s guidelines before proceeding.

Step 2 — Remove the existing module (if upgrading): If you are replacing an existing transceiver, carefully remove the current SFP+ module from its slot by releasing the retaining clip and pulling it straight out with a gentle, even pressure.

Step 3 — Insert the JD094B-BX-D compatible module: Align the module with the SFP+ slot and gently slide it in until it-clicks into place. Confirm the module is fully seated and the retention clip is engaged. The front panel indicators on the switch or router will typically show that the module is recognized.

Step 4 — Connect the single-mode fiber: Use a high-quality single-mode fiber patch cord with LC connectors. Ensure correct polarity: BiDi links require TX/RX alignment between devices. Connect the Tx fiber from one device to the Rx fiber on the other. Secure the connectors and avoid excessive bending to maintain signal integrity.

Step 5 — Verify link status and configuration: Power on the device (if needed) and access the management interface. Enable the corresponding SFP+ interface if required, and verify link status, data rate, and duplex settings. If cross-checking with HP gear, you may review the interface in HP management software to confirm 10GBASE-BX operation and stable_link.

Step 6 — Perform a basic throughput test: If your environment supports it, run a small, representative throughput test to confirm stable performance across the BiDi link. Check for error rates, CRCs, and any signaling warnings. If issues arise, recheck fiber polarity, connector cleanliness, and compatibility with the HP hardware.

Step 7 — Document the installation: Record the module model, serial number (if available), fiber type, link distance, and port configuration for future maintenance and troubleshooting. Proper documentation helps sustain performance over the life of the installation.

Frequently asked questions

• Q: Is this module compatible with HP JD094B-BX-D switches and routers?
  A: Yes. It is designed to be fully compatible with HP JD094B-BX-D, and it has been tested to work with HP switches and routers that support 10GBASE-BX BiDi transceivers.
• Q: What does BiDi mean for this transceiver?
  A: BiDi stands for bidirectional. The transceiver uses a single fiber pair to transmit and receive data in opposite directions, effectively doubling fiber efficiency and reducing cabling in appropriate networks.
• Q: What type of fiber should I use?
  A: This module is intended for Single-Mode Fiber (SMF). Use SMF with LC connectors and ensure proper polarity between devices for BiDi operation.
• Q: What bandwidth and speed does it support?
  A: It supports 10 Gbps full-duplex Ethernet (10GBASE). This makes it suitable for data-intensive applications such as storage networks, virtualization, and high-speed inter-switch links.
• Q: How do I verify that the link is up?
  A: After installation, check the SFP+ interface status in your switch/router management interface. Look for a link light, an established 10G link rate, and normal error counters. If the link does not come up, verify fiber polarity, connector cleanliness, and compatibility with the HP gear.
• Q: Do I need any special drivers or firmware?
  A: In most cases, plug-and-play operation with standard SFP+ ports should not require special drivers. Ensure your HP devices have the latest firmware and that the SFP+ module is compatible with your specific model and firmware version.
