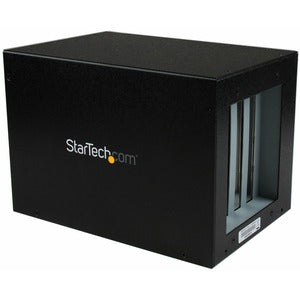

StarTech.com PCI Express to 4 Slot PCI Expansion System

The StarTech.com PCI Express to 4 Slot PCI Expansion System is a versatile external chassis designed to dramatically boost I/O capabilities for servers, workstations, and even select laptops with PCIe support. By bridging a PCIe host connection to four full-size PCI expansion slots, this system makes it simple to add legacy PCI or PCI-based expansion cards without modifying the motherboard or opening the main system enclosure. It’s a smart, cost-effective solution for IT teams seeking quick access to additional network cards, RAID controllers, PCI graphics, USB controllers, and other peripherally essential devices. Built for reliability, this expansion chassis emphasizes straightforward setup, robust compatibility, and flexible deployment in data centers, development labs, and high-performance workstations.

• Effortless I/O expansion with four external PCI slots: Quickly unlock additional hardware capabilities by housing four PCI expansion cards in a single, compact enclosure connected to any PCIe-enabled host. This approach minimizes downtime and dramatically increases the range of devices you can attach to your system.
• Versatile compatibility for PCI-based cards: Designed to accommodate a broad spectrum of PCI cards, from enterprise-class NICs and storage controllers to legacy PCI adaptors. This makes it ideal for upgrading older systems or expanding functionality in a modern PCIe environment without replacing hardware.
• External chassis for flexible deployments: By placing expansion slots in an external bay, you can keep high-availability servers and workstations shielded inside their racks while still gaining access to powerful PCI devices, simplifying maintenance and future upgrades.
• Streamlined integration with PCIe hosts: The system is engineered to connect seamlessly to PCIe-enabled systems, offering a practical, plug-and-play pathway to extend I/O without internal motherboard changes or complex configurations.
• Cost-effective, time-saving expansion: Adding four PCI slots externally eliminates costly motherboard swaps or discrete adapter upgrades, enabling rapid scaling of your workstation or server capabilities as project demands evolve.

Technical Details of StarTech.com PCI Express to 4 Slot PCI Expansion System

• Product type: External PCI Express to PCI expansion chassis
• Slots provided: Four PCI expansion slots in an external enclosure
• Host interface: PCI Express (PCIe) connection to the host system
• Bus extension: System bus extender enabling PCI cards to operate outside the main chassis
• Card compatibility: Supports standard PCI expansion cards; compatible with a broad range of PCI, PCI-X (where applicable), and related add-in cards depending on card and host capabilities
• Form factor: External expansion chassis designed for modular integration in data centers, labs, and workstations
• Power and cooling: Independent power for the expansion bay with ventilation suitable for multiple PCI cards
• LED indicators: Status indicators to help monitor connections and operation at a glance
• Dimensions and weight: Compact footprint designed to fit in standard rack or desk installations; exact measurements vary by model

How to install StarTech.com PCI Express to 4 Slot PCI Expansion System

• Prepare the host system: Power down the computer, unplug it from the power source, and ensure you have access to an available PCIe slot or suitable expansion interface on your motherboard.
• Unpack and inspect the expansion chassis: Remove packaging, verify all components are present, and check for any shipping damage. Prepare the four PCIe expansion slots housing by ensuring clearance for PCI cards you plan to install.
• Connect the expansion chassis to the host: Attach the expansion system to the host using the provided PCIe interface cable or connector specified by the manual. Ensure the connection is secure and aligned correctly to avoid misalignment stress.
• Install PCI cards into the external slots: Slide the PCI cards into the four expansion slots in the chassis, securing them with the appropriate screws or latches. Confirm each card is seated firmly and sits level within its slot.
• Power on and configure: Reconnect power to the host and the expansion chassis if required. Power up the system, then install any necessary drivers or firmware updates as indicated by the PCI cards’ manufacturers. Check BIOS/UEFI settings if you need to enable the external expansion or adjust I/O priorities.

Frequently asked questions

• What problem does this StarTech expansion system solve? It provides a straightforward path to add four PCI expansion slots to a PCIe-enabled host, enabling the use of additional PCI-based peripherals without opening the main chassis or replacing existing motherboards.
• Which devices can I install in the four external PCI slots? You can install standard PCI expansion cards that are compatible with your system’s power and bandwidth limits. This includes networking adapters, storage controllers, capture cards, and other PCI-based devices supported by your host platform.
• Is the external chassis compatible with PCIe laptops or only desktops/servers? The design targets PCIe-enabled desktops, workstations, and servers; some laptops with appropriate docking or PCIe expansion support may also work, depending on the specific model and interface offered by the host system.
• Do I need special drivers for the PCIe to PCI expansion chassis? Most PCI expansion cards will require their own drivers, which should be installed in the same way as if the cards were installed directly in the host system. The expansion chassis itself typically does not require separate drivers beyond standard system recognition.
• Can I hot-swap cards in the external slots? Hot-swapping PCI cards is generally not supported due to potential system instability or power/BIOS constraints. It is recommended to power down the host before removing or inserting cards unless the documentation explicitly confirms hot-swap capability.
