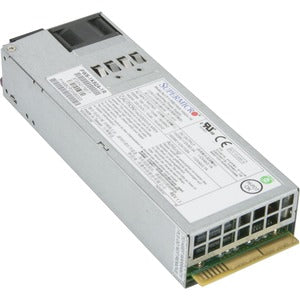

Supermicro 1000W/1600W 1U Redundant Power Supply (PWS-1K62A-1R)

Power reliability is non-negotiable in today’s data centers and enterprise server rooms. The Supermicro PWS-1K62A-1R delivers a robust 1600W maximum output in a compact 1U form factor, engineered to keep your Supermicro 1U servers running smoothly under demanding workloads. This power supply combines high efficiency, flexible redundancy, and advanced management features to minimize downtime and optimize energy use in mission-critical environments. With PMBus 1.2 support for remote monitoring and control, you gain real-time visibility into voltage rails, currents, temperatures, and fault status—empowering proactive maintenance and streamlined operations. The 80 Plus Titanium certification underscores a commitment to top-tier efficiency, reducing heat generation and lowering electricity costs over the life of the system.

Designed for uptime and ease of service, the PWS-1K62A-1R is built for hot-swappable redundancy in 1U servers. This means you can swap failed units without powering down the host system, maintaining service continuity for essential applications. The integration of active PFC further boosts efficiency across a broad range of loads, helping to meet stringent energy standards and reducing thermal load inside the chassis. Whether you’re deploying dense blade servers, high-density racks, or compute-heavy workloads, this power supply is engineered to handle sustained peak demand while delivering stable, clean power to the motherboard, CPUs, memory, and PCIe devices.

Beyond raw power, the PWS-1K62A-1R emphasizes manageability and safety. The PMBus 1.2 interface enables digital communication with compatible server management controllers, enabling remote voltage adjustment, fault signaling, and load balancing across redundant units. This remote capability simplifies monitoring across multiple servers and cabinets, and it integrates neatly with existing ITSM tooling and DCIM platforms. The packaging and connector layout are optimized for quick maintenance in rack environments, minimizing downtime during replacements and routine servicing. In short, this power supply pairs high-capacity output with intelligent control, delivering reliability, efficiency, and streamlined administration for your Supermicro 1U fleet.

Key features make this model stand out for server environments where performance, efficiency, and availability matter most. Its 1U redundant design supports seamless hot-swap operation, enabling you to replace a failing unit without interrupting critical services. The Titanium efficiency rating means higher overall system efficiency and reduced heat output, which translates to lower cooling costs in dense deployments. PMBus 1.2 compatibility provides actionable, programmable insights into power delivery, enabling tighter control of energy use and faster remediation of potential issues. By combining these capabilities with a proven track record of compatibility with Supermicro 1U servers, the PWS-1K62A-1R is a compelling choice for data centers, edge deployments, and enterprise IT environments that demand reliability, scalability, and energy-conscious operation.

• High-capacity 1600W output in a compact 1U form factor to power demanding Supermicro 1U servers without compromising space or performance.
• 1U redundant, hot-swappable design for uninterrupted service and rapid field replacement of failed units, minimizing downtime and maintenance windows.
• PMBus 1.2 remote management enables real-time monitoring, fault reporting, and programmable control from compatible server management controllers.
• 80 Plus Titanium efficiency with active PFC delivers superior power conversion, reduces heat, and lowers energy costs across the workload spectrum.
• Flexible redundancy control and integration with Supermicro server ecosystems provide scalable power protection for growing deployments and mission-critical applications.

Technical Details of Supermicro 1000W/1600W 1U Redundant Power Supply (PWS-1K62A-1R)

• Model: PWS-1K62A-1R
• Power capacity: Up to 1600W maximum output to support high-density, performance-critical workloads
• Form factor: 1U redundant hot-swappable power supply designed for Supermicro server chassis
• Redundancy: 1+1 hot-swappable redundancy to maintain uptime during maintenance or failure
• Efficiency: 80 Plus Titanium certified for high-efficiency operation and reduced energy waste
• Input voltage range: 100–240 VAC, suitable for global deployments with 50/60 Hz power
• Management: PMBus 1.2 support for remote monitoring, control, and fault notification
• Protection: Active PFC and protective features to guard against over-voltage, over-current, and short-circuit conditions
• Compatibility: Optimized for Supermicro 1U server systems to ensure seamless integration and reliability

how to install Supermicro 1000W/1600W 1U Redundant Power Supply (PWS-1K62A-1R)

• Power down and prepare: Shut down the server and disconnect all power cables. If possible, enable maintenance mode in the server’s management interface to prevent unintended wakeups.
• Access the PSU bay: Remove the chassis cover or access panel that provides entry to the PSU bay. Ensure you are grounded to prevent static damage to sensitive components.
• Remove the existing unit (if replacing): If replacing an existing supply, disconnect its cables, release any retention latches, and slide the unit out carefully. Note the orientation and connector positions for reference.
• Install the new PSU: Align the PWS-1K62A-1R with the chassis rails and slide it into the PSU bay until it seats firmly. Engage any retention mechanisms to secure the unit in place.
• Connect power and management cables: Attach the appropriate power input cables to the PSU and connect the PMBus or management cables to the server management controller if required. Route cables neatly to avoid obstructing fans and other components.
• Configure redundancy and test: If your deployment uses standby redundancy, ensure the second PSU is recognized by the system and configured for automatic failover. Power on the server and verify that the PSU is detected, fans are functioning, and power rails are within expected ranges. Use the PMBus interface to verify monitoring data and, if applicable, test a simulated fault to confirm failover behavior.

Frequently asked questions

• What is the main purpose of the PWS-1K62A-1R? It is a 1U redundant power supply designed for Supermicro servers, delivering up to 1600W with high efficiency and remote monitoring capabilities to maximize uptime and energy efficiency.
• What kind of redundancy does it offer? The unit is built for 1+1 hot-swappable redundancy, enabling seamless replacement of a failed unit without powering down the server.
• What management features are included? PMBus 1.2 support provides remote monitoring, status reporting, voltage/current measurements, and fault notification to compatible management controllers.
• Is this compatible with all Supermicro 1U servers? It is designed to integrate with Supermicro 1U server systems, ensuring reliable compatibility and support within that ecosystem.
• What does 80 Plus Titanium mean for my data center? Titanium efficiency indicates superior energy conversion efficiency, reduced heat generation, and lower cooling and electricity costs over the life of the system.
• How do I ensure proper installation? Follow the installation steps outlined above, verify connectivity, confirm management access via PMBus, and conduct a controlled power-on self-test to confirm rails and protections are functioning as expected.
