Description

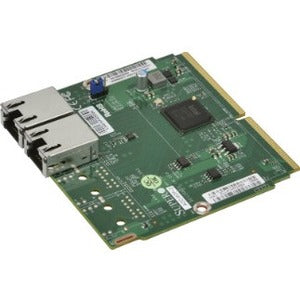

Supermicro 2-Port Gigabit Ethernet Adapter
The Supermicro 2-Port Gigabit Ethernet Adapter is the pinnacle of flexible, high-reliability networking for servers that demand scalable I/O performance. Part of Supermicro’s renowned Super I/O Module (SIOM) ecosystem, this adapter equips your system with two robust Gigabit Ethernet ports powered by a proven Intel GbE controller. Designed to deliver dependable throughput, versatile deployment options, and straightforward integration, the AOC-MGP-i2-based SIOM solution fits seamlessly into a wide range of data center, enterprise, and high-density server configurations. If you value easy management, solid performance, and the flexibility to adapt to evolving networking needs, this two-port GbE SIOM card is engineered to meet and exceed those expectations.
- Intel i350-based Gigabit Ethernet performance — reliable, industry-proven GbE performance with robust offload capabilities for virtualization, multi-VM environments, and dense server workloads.
- Two 1 GbE ports (RJ-45) — flexible, hot-plug-ready networking with auto-negotiation, Auto-MDI/MDIX, and full duplex operation to support diverse cabling and topology options.
- Flexible Super I/O Module (SIOM) integration — part of the scalable SIOM family, designed to maximize I/O options in server platforms, enabling modular networking that can be tuned to changing workloads without replacing core server components.
- Server-grade reliability in a compact form — optimized for server environments with durable design, stable driver support across major operating systems, and compatibility with a broad ecosystem of Supermicro hardware.
- Easy deployment and broad OS support — deploy quickly on Windows, Linux, VMware, Hyper-V, and other enterprise OSes with widely available drivers and straightforward configuration to get your network up and running fast.
Technical Details of AOC-MGP-i2 2-Port GbE SIOM
- Product line — Supermicro Super I/O Module (SIOM) family
- Model — AOC-MGP-i2
- Ports — 2 x 10/100/1000BASE-T RJ-45 Ethernet ports
- Controller — Intel GbE network controller based on the i350 architecture
- Host interface — PCIe-based connection to the server motherboard (typical SIOM PCIe integration supports x4 lanes)
- Form factor — SIOM module designed for Supermicro server platforms, enabling flexible I/O expansion without sacrificing chassis space
- Data throughput — supports dual Gigabit Ethernet links for parallel traffic and failover resilience
- Networking features — supports standard Ethernet features such as VLAN tagging, MAC-based filtering, jumbo frames, and link aggregation in compatible environments
- Power and cooling — designed for reliable operation in data center conditions with server-grade thermal and power management
- Compatibility — broad operating system support with drivers available for Windows, Linux, VMware, and other common enterprise platforms
- Quality and compliance — built to meet enterprise reliability standards and compliant with common hardware guidelines for SIOM components
how to install [product]
Installing the Supermicro AOC-MGP-i2 SIOM is a straightforward process designed for quick integration into compatible server platforms. Follow these general steps to add the two-port GbE adapter to your system and begin leveraging its networking capabilities.
- Power down the server and disconnect it from any power sources. Remove the chassis cover according to your server’s maintenance procedures to access the motherboard and PCIe slots.
- Identify a suitable PCIe slot in your server that supports SIOM modules or the dedicated SIOM expansion bay outlined in your chassis documentation. Ensure there is enough clearance for the SIOM module and any adjacent components.
- Insert the AOC-MGP-i2 SIOM module into the appropriate PCIe slot or SIOM connector, aligning the connector and gently seating it until it is firmly secured. If your chassis supports hot-swap or hot-plug, follow manufacturer guidance for safe removal and insertion.
- Reconnect any required cables and reattach the server cover. Power the system back on and enter the BIOS/UEFI to confirm the SIOM module is detected. Some systems may require enabling the SIOM device in hardware configuration menus.
- Install or update drivers within the operating system. Use your OS vendor’s standard driver package or the latest Supermicro driver bundle for the AOC-MGP-i2. After installation, verify that both Ethernet ports appear as active interfaces and can establish network connectivity.
- Configure network settings as needed, including VLANs, link aggregation (if supported by your switch), and any desired offload or performance features. Test connectivity locally and across your network to ensure stability and throughput.
Note: The exact installation steps can vary slightly depending on your server model and BIOS/UEFI interface. Always consult your Supermicro server documentation for slot compatibility, hot-swap capabilities, and recommended driver versions to maximize performance and reliability.
Frequently asked questions
What is the AOC-MGP-i2 used for? The AOC-MGP-i2 is a two-port Gigabit Ethernet SIOM module from Supermicro designed to extend server I/O capabilities. It plugs into a compatible Supermicro system and provides two independent GbE links, enabling flexible network topologies, traffic segmentation, and improved bandwidth management for servers, storage nodes, or virtualization hosts.
What networks and workloads benefit most from this SIOM? Workloads that require reliable network connectivity, virtualization environments with multiple virtual machines, clustering, storage networks, and environments needing modular, scalable I/O can benefit. The Intel i350-based GbE controller offers solid performance, low latency, and efficient handling of common day-to-day data center traffic.
What operating systems are supported? The AOC-MGP-i2 supports a broad range of enterprise OSes through compatible drivers, including Windows Server, Linux distributions, VMware, Hyper-V, and other mainstream server platforms. Ensure you install the latest drivers from Supermicro or the OS vendor to achieve optimal performance and compatibility.
Does this SIOM support advanced features like VLANs and link aggregation? Yes. The module provides standard Ethernet functionality such as VLAN tagging and supports link aggregation through compatible switches and drivers. Consult your network switch configuration to align with your NIC capabilities for best performance and reliability.
How do I verify installation and performance? After installation and driver setup, verify that both ports are visible to the operating system and have link status, then run basic connectivity tests (ping/throughput) across the network. Use the OS’s network tools to confirm speed, duplex settings, and offload features are functioning as expected.
