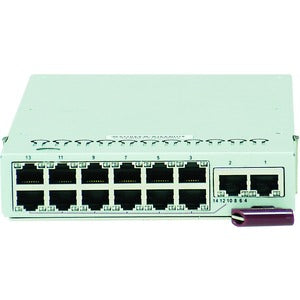

Supermicro 24 Port Expansion Module SBM-GEM-002

The Supermicro 24 Port Expansion Module, identified as SBM-GEM-002, delivers a robust, plug-and-play Gigabit Ethernet pass-through solution tailored for SuperBlade deployments. This non-configurable module is designed to extend your LAN connectivity with a precise, balanced layout: fourteen external 1-Gb/s RJ45 uplink ports paired with fourteen internal 1-Gb/s downlink ports that connect directly to the SuperBlade’s LAN interfaces. Built to integrate seamlessly into your blade enclosure, SBM-GEM-002 emphasizes simplicity, reliability, and steady performance for data centers, enterprise server rooms, and all workloads that benefit from predictable, tier-1 networking access without the overhead of configuration management.

• 24-port pass-through architecture: The module ships with fourteen external uplink RJ45 ports and fourteen internal downlink ports, enabling direct, straightforward LAN connectivity without intermediate routing or software configuration.
• Gigabit performance per port: Each of the 1-Gb/s ports is designed to handle consistent, high-throughput Ethernet traffic, supporting a range of office, data-center, and backbone connectivity needs while maintaining low latency in PCIe backplane environments.
• Non-configurable, plug-and-play design: SBM-GEM-002 requires no software or management interface. Install, connect, and power up—the backplane and chassis manage the integration, delivering a streamlined upgrade path for expanding blade network capacity.
• Designed for SuperBlade LAN interfaces: This expansion module is purpose-built to augment the SuperBlade network fabric, ensuring optimal alignment with Supermicro’s blade-centric architectures and backplane signaling.
• Two internal Ethernet paths to the blade fabric: The module provides dual internal paths to the SuperBlade LAN interfaces, which helps maintain consistent connectivity and supports stable traffic distribution across the blade ecosystem.

Technical Details of SBM-GEM-002

• Part ID: SBM-GEM-002
• Module type: Gigabit Ethernet Pass-through Module
• External uplink ports: 14 × 1-Gb/s RJ45
• Internal downlink ports: 14 × 1-Gb/s
• Speed per port: 1 Gb/s
• Configurable options: Non-configurable (plug-and-play)
• LAN compatibility: Designed for SuperBlade LAN interfaces
• Internal paths: Two internal Ethernet paths to the SuperBlade LAN interfaces

How to install SBM-GEM-002

Installing SBM-GEM-002 is a straightforward process designed to minimize downtime and maximize compatibility with your existing SuperBlade setup. Follow these steps to ensure a smooth deployment in your data center or server room:

• Power down and unplug the SuperBlade chassis or the specific enclosure slot where you will install the expansion module, following your facility’s safety and lockout procedures.
• Identify an available backplane expansion slot or bay that accommodates the SBM-GEM-002 and is compatible with the SuperBlade architecture.
• Insert the SBM-GEM-002 firmly into the designated expansion slot, ensuring proper alignment with the backplane connectors and securing it according to the chassis guidelines.
• Connect the fourteen external 1-Gb/s RJ45 cables to the corresponding uplink ports on the module, routing cables to your network switches, routers, or aggregation devices as required by your topology.
• Power up the chassis and verify that the SBM-GEM-002 is recognized by the blade system. Check the backplane indicators or management console to confirm linkage on all uplink and downlink ports.
• Test network connectivity by transmitting representative traffic across the uplink and downlink paths to validate performance, confirm no port errors, and verify stable operation within your SuperBlade environment.

Frequently asked questions

• What is SBM-GEM-002? A 24-port Gigabit Ethernet Pass-through Module designed for SuperBlade systems, featuring 14 external uplink RJ45 ports and 14 internal downlink ports, with non-configurable, plug-and-play deployment.
• How many ports does SBM-GEM-002 have? It provides a total of 24 ports: 14 external uplink ports and 14 internal downlink ports, each operating at 1 Gb/s.
• What speed do the ports support? Each port supports 1 Gb/s, delivering reliable Gigabit Ethernet performance across the module’s connectivity fabric.
• Is this module compatible with all Supermicro servers? SBM-GEM-002 is designed specifically for SuperBlade systems and their LAN interfaces, ensuring seamless integration within compatible Supermicro blade environments.
• Do I need to configure SBM-GEM-002 after installation? No. It is a non-configurable, plug-and-play pass-through module that does not require software configuration to function.
