Description

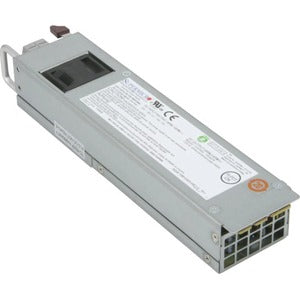

Supermicro 600W 1U - 48V DC Input Power Supply
The Supermicro PWS-601D-1R delivers reliable, high-efficiency power for your 1U short-depth Supermicro servers. Engineered to provide up to 600W of continuous output, this DC -48V input power supply is designed for compact data center deployments where space and uptime matter most. With hot-swappable design and redundancy support, it minimizes downtime and simplifies maintenance in demanding environments, making it an ideal choice for edge, rugged, and enterprise deployments that rely on compact chassis but cannot compromise on power availability.
- Up to 600W continuous output tailored for 1U short-depth Supermicro servers, ensuring dependable performance in tight rack spaces.
- DC -48V input compatibility with key Supermicro platforms (PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, and PWS-608P-1R), enabling seamless integration into existing power architectures.
- Redundancy capable to help maximize uptime and minimize service interruptions in critical workloads.
- Hot-swappable design for easy maintenance and rapid replacement without system downtime.
- Supermicro Certified Compatibility, providing confidence in reliable operation and streamlined warranty support across supported servers.
Technical Details of Supermicro 600W 1U - 48V DC Input Power Supply
- Model: PWS-601D-1R
- Power output: up to 600W
- Input type: DC -48V
- Form factor: 1U short depth power supply
- Redundancy support: Yes
- Hot-swappable: Yes
- Compatibility: PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, PWS-608P-1R platforms
- Certification: Supermicro Certified Compatibility
How to install Supermicro 600W 1U - 48V DC Input Power Supply
Installing the PWS-601D-1R is straightforward and designed to minimize server downtime. Before you begin, ensure you have the correct spare power supply and that your server is powered down and unplugged. Follow these steps to replace or install the 1U power supply in a compatible chassis:
- Power down the server completely and unplug all power cords. Ground yourself to avoid static discharge.
- Open the server chassis and locate the redundant power supply bay. Identify the hot-swappable bay designed for PWS-601D-1R or a compatible unit.
- Remove the existing module if you are replacing a failed unit. If you are adding a second supply for redundancy, align the PWS-601D-1R with the bay guides and slide it into the slot until fully seated.
- Engage the latch or securing mechanism to lock the power supply in place. Confirm that the DC -48V input connector and any power cables are correctly connected according to manufacturer guidelines.
- Reconnect the server cover, plug in power, and power on the system. Enter the BIOS or management interface to verify power status and confirm redundancy is active if applicable.
- Monitor the system for normal operation and check for any fault indicators. If you experience unusual behavior, reseat the unit or consult Supermicro support for compatibility confirmation.
Frequently asked questions
- Q: What systems is the Supermicro PWS-601D-1R designed for?
- A: It powers 1U short-depth Supermicro servers requiring a DC -48V input with support for redundancy and hot-swapping, aligning with compatible platforms like PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, and PWS-608P-1R.
- Q: Does this power supply support redundant configurations?
- A: Yes. The PWS-601D-1R is designed to work in systems that require redundancy to maximize uptime and minimize service interruptions.
- Q: What is the input voltage for this power supply?
- A: It uses DC -48V input, which is common in many Supermicro 1U server deployments and aligns with compatible rails and backplanes.
- Q: Is the power supply hot-swappable?
- A: Yes. The hot-swappable design allows for field replacement or maintenance without powering down the entire system, reducing downtime.
- Q: How do I verify compatibility with my server?
- A: Ensure your server chassis and management platform list PWS-601D-1R or the specified compatible rails (PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, PWS-608P-1R) as supported components. For guaranteed compatibility, refer to Supermicro’s official compatibility matrix or contact support with your server model and SKU.
