Description

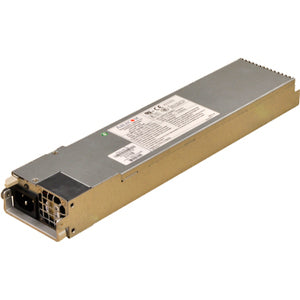

Supermicro 780W AC Power Supply
Engineered for enterprise-grade reliability, this Supermicro 780W AC power supply is a rugged, rack-mountable unit designed to keep critical servers powered with minimal downtime. It delivers a constant 12 V DC rail to ensure smooth functioning across demanding workloads, helping to stabilize system performance and reduce fluctuations that can impact uptime. Built to withstand the demands of data centers, colocation facilities, and dense server racks, this PSU offers robust power delivery, quiet operation, and a compact footprint that fits standard chassis configurations. Whether you’re refreshing an existing rack or expanding a new infrastructure, the 780W AC power supply provides dependable power, intelligent protection, and enduring performance for resilient server operations.
- High-performance 780W output with stable 12V rails Delivers dependable power to CPUs, memory, storage arrays, and expansion cards, while the constant 12 V DC ensures smooth functioning even during demanding workloads.
- Rack-mountable design for data center integration Engineered to fit standard server enclosures, enabling clean, scalable deployments in existing data centers and cloud infrastructure environments.
- Quiet operation and thermal efficiency Advanced thermal management and optimized fan control minimize noise during peak activity, helping maintain a comfortable data-center environment and reducing audible distractions in office settings with rack-mounted gear.
- Rigorous protection and reliability Built-in safeguards—over-current protection, short-circuit protection, and surge tolerance—shield your equipment from power anomalies, supporting longer component life and safeguarding critical workloads.
- Easy maintenance and broad compatibility Designed for flexibility in diverse server configurations; supports common backplanes and motherboard interfaces used in enterprise systems, enabling straightforward upgrades and replacements without compatibility issues.
Technical Details of Supermicro 780W AC Power Supply
- Power Output: 780W
- Input Voltage: 100–240 VAC, 50/60 Hz (configurations may vary by SKU)
- Output Rails: +12V DC primary rail to support critical server components
- Form Factor: Rack-mountable server power supply designed for standard chassis
- Protection Features: Over-current protection, over-voltage protection, short-circuit protection
- Efficiency: High-efficiency design with performance characteristics that vary by SKU
How to install Supermicro 780W AC Power Supply
- Step 1: Power down the server, unplug all power sources, and discharge any static electricity before handling components.
- Step 2: Open the chassis access panel or remove the existing power supply module according to your enclosure’s maintenance procedure.
- Step 3: Align the 780W PSU with the rack-mount rails or bay slots, ensuring the connectors and mounting holes line up with the backplane and chassis references.
- Step 4: Secure the PSU firmly to the rack or chassis using the provided screws or mounting hardware, confirming there is no wobble and that airflow channels remain clear.
- Step 5: Connect the power input and the essential server power cables to the PSU and to the motherboard, backplane, or other components as specified by your server configuration. Recheck cable routing to avoid obstruction to fans or airflow.
- Step 6: Replace the service panel, power on the system, and verify the PSU is detected by the server and operating normally. Monitor voltage rails and fan behavior through the system management interface.
- Step 7: If multiple power supplies are used, perform a load balance test to ensure reactor rails are delivering consistent power across units and that redundant paths engage correctly in fault scenarios.
Frequently asked questions
- Q: What is the power output of this supply? A: The unit provides 780W of continuous power to support server workloads and components.
- Q: Is this power supply hot-swappable? A: In many server configurations, the PSU can be hot-swapped when used in compatible chassis or redundant configurations; consult your enclosure’s documentation to confirm hot-swap support for your setup.
- Q: What kinds of servers is it compatible with? A: It is designed for use in enterprise servers and rack-mount environments that accommodate standard 1U/2U power supply modules and common backplanes; verify compatibility with your specific motherboard and chassis before installation.
- Q: What protection features does it include? A: It includes over-current protection, short-circuit protection, and over-voltage protection to safeguard connected components and maintain system reliability.
- Q: How can I verify that the PSU is functioning correctly? A: After installation, check the system management interface or BIOS/UEFI hardware monitor to confirm rail voltages are within acceptable ranges and that the PSU is recognized by the system. Listen for abnormal fan noise, and inspect for any warning indicators if present.
