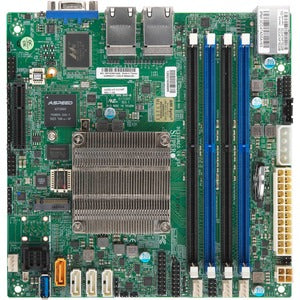

Supermicro A2SDi-4C-HLN4F Server Motherboard - Mini ITX, Intel Atom C3000 SoC

Discover compact, enterprise-grade server performance in a remarkably small footprint. The Supermicro A2SDi-4C-HLN4F is a Mini ITX motherboard built around Intel’s Atom C3000 series System-on-Chip, delivering efficient, always-on compute ideal for entry-level servers, edge deployments, embedded IPC, and compact data-center footprints. This motherboard blends the reliability of server-grade design with a compact form factor, giving you a versatile platform for virtualization, network storage, media server duties, and lightweight cloud workloads in a space-constrained environment.

Designed for continuous operation, the A2SDi-4C-HLN4F emphasizes low power consumption without sacrificing performance. The integration of the Atom C3000 SoC (formerly Denverton) brings a balance of multi-core efficiency, robust I/O, and persistent reliability, making it a compelling choice for budgets-conscious deployments that still demand enterprise-grade features. The board’s DDR4 SDRAM compatibility opens up flexible memory configurations, enabling you to tailor capacity and speed to your workload while maintaining energy efficiency. Whether you’re building a compact home lab, a small business server, or an embedded IPC solution, this motherboard is engineered to deliver steady performance with long-term serviceability.

• Compact, scalable server hardware: Mini ITX footprint designed for small form-factor enclosures, dense data centers, and edge deployments without sacrificing server-grade capabilities.
• Intel Atom C3000 SoC on a single board: System-on-Chip architecture combines processing, memory controller, and I/O into a single package optimized for low power and lower total cost of ownership.
• DDR4 SDRAM compatibility: Supports modern memory modules to deliver responsive performance for virtualization, databases, and multi-task workloads in a compact build.
• Flexible I/O and storage options: Integrated networking with options for additional NICs, native storage interfaces, and PCIe expansion to suit diverse workloads and configurations.
• Remote management and reliability: Enterprise-grade management features and a platform designed for 24/7 operation, making it suitable for always-on servers and embedded IPC applications.

Technical Details of Supermicro A2SDi-4C-HLN4F

• Form factor: Mini ITX
• CPU/SoC: Intel Atom C3000 series System-on-Chip (SoC)
• Socket: Socket BGA-1310 (on-chip CPU/SoC integration)
• Memory: DDR4 SDRAM compatibility
• Management: IPMI-enabled remote management interface for out-of-band administration
• Networking: Onboard Ethernet with options for additional network interfaces
• Expansion: PCIe slots and I/O options to support NICs, storage controllers, and other peripherals
• Storage: SATA connectivity for traditional drives and SSDs, with potential support for PCIe-based storage depending on configuration
• Form factor compatibility: Suitable for compact chassis while delivering server-class features
• Target use: Entry-level servers, embedded IPC, edge computing, and compact virtualization environments

How to Install Supermicro A2SDi-4C-HLN4F

Getting started with the A2SDi-4C-HLN4F is straightforward, especially if you are migrating from a traditional desktop board or building a dedicated small-form-factor server. Before you begin, ensure you have a compatible Mini ITX chassis, a power supply appropriate for your load, DDR4 memory modules, and any storage or PCIe expansion cards you plan to use. Remember that this motherboard uses an Intel Atom C3000 SoC, which means there is no traditional CPU socket to install.

Step-by-step guidelines:

• Prepare the chassis and environment: Power down all equipment, discharge static electricity, and ensure you have a clean workspace. Confirm that the chassis has the correct mounting standoffs for a Mini ITX motherboard and adequate cooling for sustained operation.
• Install the motherboard: Align the I/O shield and the mounting points with the chassis. Secure the board with the appropriate standoffs and screws, taking care not to overtighten.
• Install memory (DDR4 SDRAM): Insert the DDR4 memory modules into the designated DIMM slots on the board. Ensure they snap into place with uniform resistance and that any memory you select is supported by the board’s memory controller.
• Connect storage and PCIe devices: Attach SATA drives or SSDs to the onboard storage connectors as required. If you plan to add PCIe expansion cards (NICs, NVMe adapters, or storage controllers), install them securely into the PCIe slots and route power and data cables as appropriate.
• Power, fans, and peripherals: Connect the power supply to the motherboard and any case fans. Connect front-panel USB, power, and reset cables as needed, following the chassis and motherboard documentation.
• Power on and configure: Boot into the BIOS/UEFI to configure boot order, memory settings, and virtualized options if needed. Configure any IPMI or remote management features for out-of-band access, ensuring you set strong credentials and network access controls.
• Install the operating system and services: Install your preferred server OS (Linux, Windows Server, or virtualization platforms) and configure storage pools, networking, and services such as virtualization or file sharing according to your workload.

Note: Because the A2SDi-4C-HLN4F uses an Intel Atom C3000 SoC integrated on the board, there is no separate CPU socket to install. All processing power is delivered via the SoC, with memory, storage, and I/O integrated to provide a compact, efficient server solution. Always consult the official product documentation for exact BIOS settings, supported memory configurations, and expansion options tailored to your chassis and workload.

Frequently asked questions

• What is the primary use case for the A2SDi-4C-HLN4F? It is designed for entry-level servers, edge computing, embedded IPC, and compact virtualization environments where space and power efficiency matter, while still offering server-grade reliability and management capabilities.
• Does it use a removable CPU? No. The Intel Atom C3000 SoC is integrated on the motherboard as a System-on-Chip. There is no separate CPU socket to install.
• What memory type does it support? The board supports DDR4 SDRAM memory modules, enabling modern and efficient memory configurations for a range of workloads.
• Can I add expansion cards or more NICs? Yes. The board provides PCIe expansion slots and I/O headers to add NICs, storage controllers, or other peripherals as your workload requires.
• Is remote management available? Yes. The platform includes IPMI-enabled remote management, offering out-of-band access for monitoring, management, and maintenance—ideal for headless servers and remote sites.
• What kind of storage connectivity is available? The motherboard includes onboard storage interfaces (SATA) and supports adding PCIe-based storage options depending on configuration and expansion cards.
