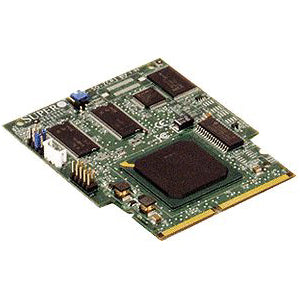

Supermicro AOC-SOZCR1 Socket DIMM All-in-One Zero-Channel RAID Card

The Supermicro AOC-SOZCR1 is a high-efficiency, highly compatible SAS/SATA/SCSI RAID controller designed to simplify enterprise storage while delivering powerful performance in a compact Socket DIMM form factor. This all-in-one zero-channel RAID card brings robust data protection and flexible deployment to servers and workstations, making it ideal for data centers, HPC clusters, and demanding workloads. By integrating multiple controller options from industry leaders like Marvell and Adaptec, the AOC-SOZCR1 provides a versatile RAID solution that adapts to a wide range of drive configurations and capacity needs, all without sacrificing reliability or manageability.

• Zero-Channel architecture for streamlined deployment — The AOC-SOZCR1 is built to reduce complexity by combining RAID functionality in a single socket DIMM-based card, minimizing cabling and host channel management while delivering solid performance across SAS, SATA, and SCSI storage devices.
• Flexible RAID levels for performance and protection — Configure RAID 0 for maximum throughput, RAID 1 for mirroring protection, RAID 5 and RAID 10 for a balance of redundancy and speed, or JBOD to present individual disks to the OS. This breadth of options helps you tailor storage to your application, budget, and uptime requirements.
• Broad compatibility with leading controllers — The AOC-SOZCR1 supports Marvell's 88SX6041/6081 (Hercules II) and Adaptec's AIC-7901/7902 Ultra 320 SCSI controllers, as well as Adaptec's AIC-9410S series. This mix of controller options ensures compatibility with a wide range of SAS/SATA/SCSI drives and legacy configurations, maximizing reuse of existing assets.
• Enterprise-grade reliability and management — Designed for 24/7 operations, the card emphasizes data integrity, fast rebuilds, and consistent error detection. With robust management utilities and firmware update possibilities, administrators can monitor health, optimize performance, and extend drive lifespans in busy data environments.
• Easy integration with standard servers and OS support — Built to slot into common server ecosystems, the AOC-SOZCR1 works with mainstream operating systems and is compatible with typical server management workflows, enabling straightforward deployment in existing racks and blade environments.

Technical Details of Supermicro AOC-SOZCR1

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to Install Supermicro AOC-SOZCR1

Installing the AOC-SOZCR1 is a straightforward process designed to minimize downtime and complexity in enterprise environments. Follow these steps to ensure a smooth deployment and optimal storage performance.

1) Prepare your server and equipment — Power down the system and unplug it from power. Verify that you have an available PCIe or DIMM slot (as specified by your server’s motherboard design) to accommodate the AOC-SOZCR1. Ensure you have the appropriate drive chassis or backplane ready for SAS/SATA/SCSI devices you plan to attach, and have any required cables and terminations on hand if your configuration calls for it.

2) Install the AOC-SOZCR1 card — Gently insert the card into the correct slot or socket per the server’s hardware manual, aligning with the connector keys to avoid bent pins. Secure the card with the chassis screw or retention mechanism provided by the enclosure. If your server uses a DIMM-based interface, ensure the module seats firmly and that the latches engage properly.

3) Connect storage devices — Attach SAS, SATA, or SCSI drives to the card’s connectors as required by your RAID plan. Maintain proper cabling discipline to support airflow and minimize interference. For cascaded or backplane configurations, follow the drive backplane manufacturer’s recommendations for channel assignments and drive order to ensure predictable rebuild and parity calculations.

4) Power up and enter the RAID configuration utility — Power on the server and watch for the system POST screen or a dedicated boot-time prompt that indicates the AOC-SOZCR1 RAID controller is present. Access the provided RAID configuration utility (BIOS-level or onboard management software) to initialize the controller, create your RAID arrays, and set disk monitoring options. If you are migrating from an existing controller, use the utility’s import or import/export features to preserve volumes and data structure where possible.

5) Create and verify RAID sets — Within the RAID utility, define your desired RAID level (0/1/5/10/JBOD), assign member disks, configure rebuild options, and designate hot spares if your environment requires automatic recovery. Run a quick consistency check after array creation to confirm data integrity before installing the operating system. If you are deploying a virtual environment or database workload, consider aligning stripe size, cache settings, and I/O priorities to your performance goals.

6) Install or migrate the operating system — If you are building a new system, proceed with the OS installation on the RAID array. If migrating from another storage controller, use standard data migration procedures and verify that all storage volumes mount correctly in the new environment. Install any required drivers or management utilities provided by the controller vendor and update to the latest firmware to ensure stability and performance enhancements are available.

7) Monitor and maintain — Use the controller’s management console to monitor drive health, temperatures, and rebuild progress. Set up alerting for degraded virtual disks, failed drives, or hot-spare activation. Schedule routine firmware updates and health checks to keep performance consistent and minimize the risk of data loss due to drive failures.

Note: While the general installation flow remains consistent across RAID controllers, always consult your server and motherboard documentation for slot compatibility, power, and airflow considerations. Due to the AOC-SOZCR1’s DIMM-based design and its reliance on integrated controller options, the exact steps may vary slightly depending on your hardware platform and firmware version. If you encounter a mismatch between the RAID utility and your operating system, verify BIOS-level settings and ensure the correct drivers are loaded during the OS installation process.
