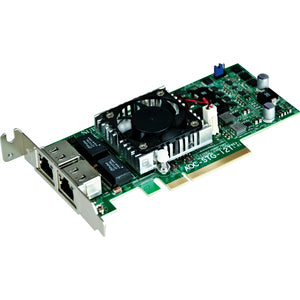

Supermicro AOC-STG-i2T 10GbE Adapter

SupermicroSKU: 3350625

Price:
Sale price$456.31

Description

Supermicro AOC-STG-i2T 10GbE Adapter

The Supermicro AOC-STG-i2T 10GbE Adapter is a high-performance dual-port network expansion card engineered to turbocharge data centers, virtualization environments, and enterprise servers. Built for reliability and scalability, this PCI Express x8 plug-in card delivers fast copper-based 10 Gigabit Ethernet connectivity via two RJ-45 ports. Its low-profile, half-height form factor makes it an ideal upgrade for dense 1U servers, blade chassis, and compact workstations, while preserving ample PCIe bandwidth for other peripherals. Whether you’re consolidating workloads, accelerating storage networks, or provisioning high-throughput uplinks, the AOC-STG-i2T is designed to help your infrastructure run more efficiently and productively.

  • Dual-port 10GbE connectivity: Two RJ-45 10GBASE-T ports provide simultaneous high-speed links for uplinks, storage networks, or multi-path server connectivity.
  • PCI Express x8 interface: Uses a PCIe 2.0 x8 host interface, ensuring ample bandwidth and headroom for demanding traffic patterns in modern servers.
  • Low-profile, space-saving design: Half-height card tailored for 1U and compact chassis, enabling flexible deployment in dense data-center environments.
  • Backward compatibility with copper Ethernet standards: Supports 10GBASE-T while remaining compatible with legacy 10/100/1000BASE-T networks for versatile integration.
  • Reliable, scalable networking expansion: Perfect for virtualization hosts, software-defined networking, and storage-area networks that require dependable 10G connectivity without sacrificing slots or power.

Technical Details of Supermicro AOC-STG-i2T 10GbE Adapter

  • Interface: PCI Express 2.0 x8 host interface for robust bandwidth and compatibility with a wide range of server platforms.
  • Ports: 2 x RJ-45 10GBASE-T network ports for copper-based 10 Gigabit Ethernet connectivity.
  • Network speeds: 10GBASE-T with backward compatibility to 10/100/1000BASE-T networks, enabling flexible deployment across mixed environments.
  • Form factor: Low-profile (half-height) PCIe plug-in card suitable for compact enclosures and dense server racks.
  • Cabling: Copper twisted-pair cabling supported; Cat6a or better recommended for reliable 10GBASE-T performance.
  • Hot-plug and serviceability: Designed for straightforward installation in compatible servers with minimal downtime.

How to Install Supermicro AOC-STG-i2T 10GbE Adapter

  • Prepare the server: Power down the system, unplug from power, and ground yourself to prevent static discharge. Remove the chassis cover to access the expansion slots.
  • Locate a suitable PCIe slot: Find an available PCI Express x8 (or larger) slot on the motherboard that fits the card’s profile. Ensure there are no obstructions and that nearby components won’t interfere with airflow.
  • Install the card: Align the AOC-STG-i2T with the slot and firmly press it into place until the connector seats snugly. Secure the card with the chassis PCIe screw or retention mechanism as required by the chassis design.
  • Connect cabling: Attach two RJ-45 cables to the two 10GBASE-T ports. Connect the other ends to a compatible 10G switch, network fabric, or NIC, ensuring the links are within the supported copper category (Cat6a or better recommended).
  • Reassemble and power up: Replace the chassis cover, reconnect power, and boot the server. Enter the OS or BIOS/UEFI as needed to verify hardware detection.
  • Install drivers and configure: Install the appropriate drivers for your operating system (Windows, Linux, or others) from Supermicro or the OS vendor. After installation, verify the device appears as a network interface and configure IP addresses, bonding, VLANs, or teaming according to your networking plan.
  • Test and optimize: Run basic connectivity tests, throughput benchmarks, and latency checks. Confirm link status on both ports and adjust NIC settings (offloading features, flow control, and jumbo frames) to match your workload and switch capabilities for optimal performance.

Frequently asked questions

  • What is the Supermicro AOC-STG-i2T?
    A dual-port 10 Gigabit Ethernet PCIe adapter that provides high-speed copper networking via two RJ-45 10GBASE-T ports. It is designed to expand bandwidth for servers, storage networks, and virtualization environments while fitting in tight chassis thanks to its low-profile form factor.
  • Which systems work with this adapter?
    The card is designed for servers and workstations with a PCIe slot compatible with x8 or larger and support for 10GBASE-T. It is intended for data-center, enterprise, and virtualization deployments, and should work with standard operating systems that support PCIe NICs.
  • What cables should I use?
    Use copper twisted-pair cables that meet or exceed the 10GBASE-T requirements. Cat6a or Cat7 copper cabling is recommended to achieve reliable 10 Gigabit performance over copper networks.
  • Does this card require additional power?
    No external power connector is typically required. The card draws power from the PCIe slot as part of the system’s standard power delivery.
  • Is this adapter suitable for virtualization or storage networks?
    Yes. The dual 10GBASE-T ports provide ample bandwidth for virtual machine uplinks, vSAN storage networks, and other high-throughput workloads, making it a solid choice for consolidated or hyper-converged infrastructures.
  • Are drivers available for multiple operating systems?
    Drivers are usually provided by the card’s vendor or the OS vendor. Check for the latest drivers from Supermicro or your operating system’s hardware support catalog to ensure compatibility and optimal performance.
