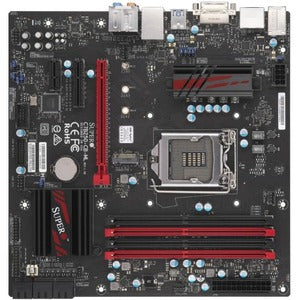

Supermicro C7B250-CB-ML Server Motherboard – Intel B250 Chipset, LGA-1151, Micro ATX

Discover compact, enterprise-ready performance with the Supermicro C7B250-CB-ML Server Motherboard. Engineered around the Intel B250 chipset and the versatile Socket LGA-1151, this Micro ATX board delivers reliable processing power for 7th Generation Intel Core i7/i5/i3 processors in a compact form factor. Designed for small server deployments, home labs, and workstations that demand dependable I/O, robust expansion, and efficient power delivery, the C7B250-CB-ML is a solid foundation for streamlined, energy-conscious computing. It blends server-grade design with consumer-friendly features to help you maximize uptime, scale your configurations, and simplify maintenance in demanding environments.

• Single-processor performance with enterprise-grade reliability: The C7B250-CB-ML centers on the Intel B250 chipset paired with Socket H4 LGA-1151, supporting 7th Generation Intel Core i7/i5/i3 processors. This combo delivers strong single-thread and multithread performance for workloads that demand steady processing, virtualization, media encoding, and data handling in compact server builds. With a focus on stability and efficiency, this motherboard is crafted to keep critical systems running smoothly around the clock.
• Memory and storage flexibility for dense configurations: Designed to support dual-channel DDR4 memory, the C7B250-CB-ML accommodates essential RAM capacity in a Micro ATX footprint. It provides multiple storage options, including SATA 6Gb/s ports and support for high-speed M.2 devices where available. The combination of fast memory and flexible storage lets you build responsive databases, caching servers, or small-scale virtualization nodes without sacrificing precious rack or desk space.
• Expansion and connectivity tailored to small servers: With PCIe expansion that fits compact server chassis, the motherboard offers essential slots for add-in cards and accelerators. It includes onboard Gigabit Ethernet for reliable network connectivity and supports plentiful USB ports for peripherals, backup devices, and management interfaces. The board’s layout is optimized for straightforward cabling and air-flow in dense environments, helping you keep thermals in check while maximizing expansion where it matters.
• Server-ready design and easy management: Supermicro focuses on durable components and thoughtful design to reduce downtime. The C7B250-CB-ML employs quality capacitors and robust power delivery to withstand prolonged operation and fluctuating loads. Its layout is crafted for easy servicing, with clear labeling and accessible connectors that simplify maintenance in data centers, labs, or remote sites.
• Compatibility and future-proofing for a variety of builds: As part of the 7th Generation Core ecosystem, this motherboard aligns with a broad range of compatible CPUs and software environments. It’s an appealing option for developers, testers, and IT professionals seeking a compact, dependable motherboard capable of handling everyday server tasks, light virtualization, and media-serving workloads without requiring a full-sized workstation motherboard.

Technical Details of Supermicro C7B250-CB-ML

• Chipset: Intel B250
• CPU Socket: LGA 1151 (Socket H4)
• Form Factor: Micro ATX
• CPU Support: 7th/6th Generation Intel Core i7/i5/i3 processors
• Memory: 2 x DIMM, DDR4, dual-channel, up to supported capacity per CPU
• Memory Type: DDR4 SDRAM, non-ECC/non-buffered (processor dependent)
• Expansion Slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
• Storage: SATA 6Gb/s ports (multi-port), M.2 slot (where available)
• Networking: Onboard Gigabit Ethernet (Intel NIC) with potential LAN features depending on model
• USB: USB 3.0 support for front/back panel and peripherals
• Power Connectors: Standard 24-pin ATX, 8-pin CPU power (for stable CPU operation)
• Other: Chipset-integrated features for reliability, expansion, and management in compact server environments

how to install Supermicro C7B250-CB-ML

Installing the C7B250-CB-ML is straightforward for users familiar with building standard desktop or small-form-factor servers. Begin by preparing your workspace with anti-static precautions and gathering a compatible 7th/6th Gen Intel Core processor, RAM, storage drives, and a suitable chassis. Follow these steps for a smooth build:

• 1) Prepare the chassis: Install standoffs in the motherboard tray that align with the Micro ATX form factor. Ensure proper clearance for CPU cooler installation and cable routing.
• 2) Install the CPU: Open the socket lever, place the CPU into the LGA 1151 socket with alignment markers, and secure it. Apply a suitable thermal paste if your cooler requires it, then mount the CPU cooler according to its instructions.
• 3) Install memory: Insert DDR4 DIMMs into the correct dual-channel banks as indicated by the motherboard manual. Ensure they click firmly into place.
• 4) Mount storage and add-ons: Connect SATA drives and, if using an M.2 device, install it into the M.2 slot (when available). Install any PCIe cards or add-in hardware in the appropriate slots and secure them.
• 5) Connect power and peripherals: Attach the 24-pin ATX power connector and the 8-pin CPU power connector. Connect the motherboard panel, fans, andUS B headers as needed. Double-check all cables for proper orientation and clearance to avoid interference with fans and heatsinks.
• 6) BIOS and first boot: Power on and enter the BIOS/UEFI to configure boot order, memory timing, and any server-specific settings. Update the BIOS to the latest version if possible to ensure continued compatibility with newer CPUs and features. Once configured, install your operating system and drivers, and perform a basic stability test to verify system integrity.

Frequently asked questions

• Q: Which CPUs are officially supported by this motherboard?
  A: The C7B250-CB-ML supports 7th and 6th Generation Intel Core i7/i5/i3 processors on the LGA 1151 socket. BiOS updates may extend compatibility with a broader range of CPUs within the same socket family.
• Q: How much memory can the board handle?
  A: The board provides 2 DIMM slots for DDR4 memory in a dual-channel configuration. The total supported memory depends on the CPU and memory modules used; refer to your CPU’s memory support and ensure you stay within official specifications for stability.
• Q: Does it support ECC memory?
  A: ECC memory support on consumer-grade 7th/6th Gen Core CPUs is typically not available. Server-grade CPUs may offer some ECC capabilities, but always verify CPU and BIOS compatibility for ECC features.
• Q: What type of storage options are available?
  A: The motherboard includes multiple SATA 6Gb/s ports and typically offers an M.2 slot where applicable, allowing you to install high-speed NVMe drives for fast OS and application loading.
• Q: Is IPMI or remote management available on this board?
  A: Server-grade features like IPMI are often part of higher-end server boards. The C7B250-CB-ML focuses on reliable single-processor performance and essential server-ready features; for advanced management, pairing with compatible chassis or add-ons may be required.
• Q: Can I use this motherboard in a home lab or small office server?
  A: Yes. Its compact Micro ATX form factor, solid PCIe expansion, and storage options make it an excellent choice for small-scale servers, virtualization labs, file/print servers, and media services where space efficiency matters.
