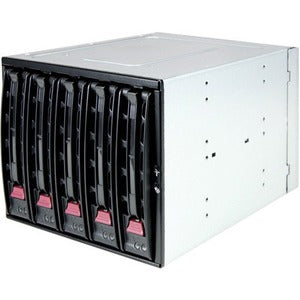

Supermicro CSE-M35TQB SATA Mobile Rack Enclosure
Experience enterprise-class storage versatility with the Supermicro CSE-M35TQB SATA Mobile Rack Enclosure. Designed to maximize drive density while minimizing downtime, this 5 x 3.5" hot-swappable SATA enclosure is built for reliability in data centers, server rooms, and high-demand media libraries. Featuring front-accessible hot-swappable bays, SAS support, and a robust cooling solution, it delivers scalable expansion for RAID configurations and heavy I/O workloads. The unit’s internal architecture and 3x 5.25" drive bay enclosure options provide flexible integration into existing racks and chassis, making it an ideal choice for organizations seeking resilient, scalable storage without compromising accessibility or airflow.
- Five 3.5-inch hot-swappable SATA drive bays with a SAS-compatible backplane enable scalable storage expansion and rapid drive replacement without powering down the host system. This design minimizes maintenance windows, keeping critical operations online while drives are serviced or refreshed.
- Internal construction with three 5.25-inch drive bay enclosure support offers additional expansion potential for auxiliary devices, optical drives, or other storage components, helping you consolidate hardware in a compact, organized chassis and maintain clear airflow paths for cooling.
- Front-accessible hot-swap drive trays simplify maintenance and upgrades. The front-loading design reduces need to reach behind the server, reducing risk during spur-of-the-moment hardware swaps and boosting uptime in busy data center environments.
- Comprehensive LED indicators provide precise, at-a-glance health monitoring: Drive Activity LED confirms active I/O, Drive Failure LED signals disk issues, Fan Failure LED and Alarm alert warn of cooling or power anomalies, and the Overheat LED flags thermal problems before they impact performance.
- Rugged black enclosure with a dedicated 9 cm cooling fan ensures effective thermal management in dense storage configurations. Consistent cooling protects drive longevity, stabilizes performance under sustained workloads, and supports reliability for RAID arrays and virtualization workloads.
Technical Details of Supermicro CSE-M35TQB SATA Mobile Rack Enclosure
- Drive bays: 5 x 3.5" hot-swappable SATA drive trays
- Backplane: SAS-compatible internal backplane designed for front-accessible hot-swapping
- Expansion bays: 3 x 5.25" drive bay enclosure slots for additional components or storage expansion
- Color/finish: Black metal enclosure
- Cooling: 9 cm cooling fan to maintain optimal operating temperatures
- Indicators: Drive Activity LED, Drive Failure LED, Fan Failure LED, and Overheat LED
- Intended use: Internal installation within a server chassis or rack-mount environment with front-accessible drive bays
- Drive compatibility: Supports SATA hard disk drives in 3.5" form factor; SAS compatibility for enterprise-grade data transfer
- Mounting compatibility: Designed to integrate with standard server chassis and 3.5" drive tray ecosystems while preserving airflow
How to install Supermicro CSE-M35TQB SATA Mobile Rack Enclosure
- Power down and unplug the server or workstation. Ensure the system is fully de-energized before handling internal components.
- Verify chassis compatibility and confirm you have available 5.25" and 3.5" drive bays in the enclosure or rack where the CSE-M35TQB will be installed.
- Mount the enclosure into the server chassis or rack using the supplied screws or rails, aligning mounting holes with the chassis to ensure a secure fit and proper airflow.
- Install the five 3.5" SATA hard drives into the hot-swap trays. Slide each tray into its corresponding bay until it clicks into place, making sure the backplane connectors align correctly with the drives.
- Connect the SATA/SAS data and power backplane cables from the server or RAID controller to the enclosure backplane. Route cables to avoid obstructing fans or airflow, and secure connections to prevent accidental disconnection during operation.
- Power on the system and enter the server BIOS or RAID controller utility to detect the new drives. Configure RAID volumes as needed and initialize drives according to your storage policy.
- Monitor the LED indicators on the front panel to verify drive health and cooling status. If any warning LEDs illuminate, follow standard troubleshooting procedures to identify and resolve issues promptly.
Frequently asked questions
- Q: How many drives does the enclosure hold? A: It supports five 3.5" hot-swappable SATA drives, with a SAS-compatible backplane for flexible enterprise storage configurations.
- Q: Is the drive tray hot-swappable? A: Yes. The unit features front-accessible hot-swappable 3.5" drive trays for minimal maintenance downtime.
- Q: What indicators are included? A: Drive Activity LED, Drive Failure LED, Fan Failure LED, and Overheat LED provide immediate status information for quick diagnostics and proactive maintenance.
- Q: Does it support expansion beyond the five drives? A: The enclosure includes 3 x 5.25" drive bay enclosure slots for additional expansion or components, enabling flexible integration into existing storage environments.
- Q: What cooling solution is included? A: A dedicated 9 cm cooling fan helps maintain stable temperatures across dense drive configurations, reducing the risk of thermal throttling and extending drive life.
