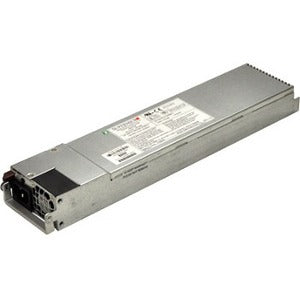

Supermicro PWS-1K03A-1R Power Module — 1000 W

The Supermicro PWS-1K03A-1R Power Module is a high-efficiency, hot-swappable power supply designed to power demanding data-center workloads with reliability and ease. Built to integrate seamlessly into Supermicro server backplanes, this 1000 W module delivers stellar performance under load while enabling simplified maintenance and robust redundancy. If you’re deploying dense, mission-critical applications, this power module ensures your servers stay online longer, with intelligent monitoring and protection that guard against common power-related issues. Engineered for modern data centers, the PWS-1K03A-1R provides a dependable, scalable solution that pairs perfectly with Supermicro chassis and management ecosystems. Its compact 1U form factor, universal input range, and resilient design make it a trusted choice for enterprise deployments, virtualization hosts, and high-performance compute nodes alike. Customers seeking stable uptime, predictable power delivery, and straightforward serviceability will appreciate the thoughtful engineering behind this module.

• 1000 W power output to support high-performance servers and dense compute configurations, ensuring headroom for peak workloads and future expansion without sacrificing stability.
• Hot-swappable design enables maintenance or replacement without powering down the entire system, maximizing uptime and simplifying chassis management in data centers and remote sites.
• Universal 100–240 VAC input accommodates global deployments, reducing the need for additional power adapters and ensuring compatibility with international power standards.
• Intelligent monitoring and safety protections include status indicators and built-in protections such as over-current and short-circuit safeguards, helping operators quickly assess health and mitigate risk.
• 1U form factor with seamless Supermicro compatibility is designed to drop into compatible Supermicro backplanes, combining with other modular components to build a reliable, scalable power architecture for a wide range of server configurations.

Technical Details of Supermicro PWS-1K03A-1R Power Module

• Model: PWS-1K03A-1R
• Power rating: 1000 W maximum output
• Input voltage: 100–240 VAC, 50/60 Hz (universal input)
• Output: DC power rail delivering up to 1000 W to server components via the backplane
• Form factor: 1U hot-swappable power module designed for Supermicro chassis/backplanes
• Protection features: Over-current protection, short-circuit protection, and thermal protection to safeguard both the module and system
• Monitoring and management: Integrated status indicators and compatibility with system management tools to provide real-time health information
• Efficiency and reliability: Engineered for stable operation under load with a focus on long-term reliability in data-center environments
• Compatibility: Built to align with Supermicro backplanes and chassis systems for straightforward integration into existing deployments

how to install Supermicro PWS-1K03A-1R Power Module

• Power down the server and unplug the power cord from the outlet to ensure a safe working environment before handling any internal components.
• Open the chassis access panel and locate the dedicated power-module bay within the backplane area. Identify the slot that corresponds to the PWS-1K03A-1R, ensuring no obstructions or cables will interfere with installation.
• If replacing an existing module, remove the existing unit by disengaging the retention latch and carefully pulling it straight out of the bay. Take care not to damage connectors or surrounding components.
• Orient the PWS-1K03A-1R so that its connectors align with the backplane interface. Slide the module into the bay with even pressure until the module is fully seated and the retention latch engages securely.
• Reconnect any cables or connectors that were detached during the removal process, reseal the chassis, and restore power. Once powered, use the system management tools or LED indicators on the module to verify operational status and confirm full integration with the backplane.

Frequently asked questions

• Q: Is the Supermicro PWS-1K03A-1R hot-swappable?
• A: Yes. The module is designed for hot-swapping, enabling maintenance and replacement without powering down the entire server in compatible Supermicro chassis.
• Q: What is the power rating of this module?
• A: It provides up to 1000 W of output power, suitable for high-demand servers and densely packed deployments.
• Q: What input voltage does it accept?
• A: The module supports universal input from 100 to 240 VAC at 50/60 Hz, allowing use in various regions around the world.
• Q: Is it compatible with all Supermicro servers?
• A: It is designed for Supermicro systems that support PWS-1K03A-1R modules and compatible backplanes. Always verify chassis compatibility and housing requirements before purchase.
• Q: How can I verify that the module is functioning properly after installation?
• A: Use the server’s management interface (IPMI or equivalent) to monitor a healthy power module status, check for LED indicators on the module, and confirm that the chassis reports normal operating temperatures and power rails.
