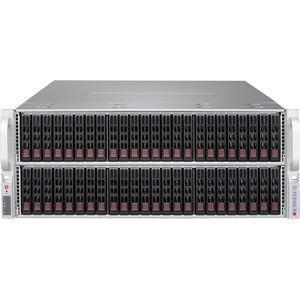

Supermicro SuperChassis 417BE1C-R1K28LPB
Introducing the Supermicro SuperChassis 417BE1C-R1K28LPB, a powerhouse 4U rack-mount chassis engineered to meet the demands of data centers, virtualization environments, and high-density storage deployments. Built to house EATXmotherboards and a vast array of expansion options, this black enclosure delivers exceptional scalability while maintaining a compact footprint. With 72 external 2.5" drive bays, it is tuned for versatile storage configurations—perfect for mixed workloads that require fast I/O, ample capacity, and straightforward management. The chassis ships with two 1280 W power supplies already installed, providing reliable redundancy to help keep critical services online. Designed for enterprise reliability and easy maintenance, the 417BE1C-R1K28LPB combines robust cooling pathways with accessible drive bays and expansion slots, making it a flexible foundation for virtualization clusters, private clouds, HPC nodes, and large-scale storage arrays. In short, this chassis is built to scale as your infrastructure grows, offering a dependable, high-density platform that supports ambitious workloads without compromising service levels or manageability.
- 72 external 2.5" drive bays deliver expansive storage capacity and flexible configurations for SSDs, HDDs, and mixed media within a single high-density 4U enclosure, ideal for enterprise storage and data-intensive workloads.
- 4U rack-mountable black chassis provides a compact, data-center-friendly footprint while offering straightforward serviceability, scalable storage deployment, and efficient airflow design to keep components cool under load.
- Dual 1280 W power supplies installed deliver reliable, redundant power for continuous operation of demanding workloads, helping downtime-sensitive applications stay online and accessible.
- Supports EATX motherboards and provides 7 PCI expansion slots, enabling multiple GPUs, NICs, RAID controllers, and other accelerators to enhance compute, networking, and storage performance in a single chassis.
- Extensive expansion and peripheral support with a large drive-count and multiple PCIe slots supports diverse, future-proof configurations for virtualization, private cloud, HPC, and large-scale storage deployments.
Technical Details of Supermicro SuperChassis 417BE1C-R1K28LPB
- Form Factor: 4U Rackmount
- Drive Bays: 72 external 2.5" bays
- Power Supply: 2 x 1280 W power supplies, installed
- Motherboard Support: EATX
- Slots: 7 PCI expansion slots
- Chassis Color: Black
how to install Supermicro SuperChassis 417BE1C-R1K28LPB
Installing the 417BE1C-R1K28LPB is a straightforward process that centers on proper rack-mounting, safe power connections, and organized cabling to maximize airflow and serviceability. Begin by verifying your data-center rack compatibility, including depth, width, and maximum weight capacity, and ensure appropriate clearance for cables and cooling. Prepare the chassis for installation by gathering the required mounting rails and screws that match your rack standards, and inspect the enclosure for any shipping damage before mounting.
- Mounting in the rack: Attach the provided rails to the chassis and position the enclosure in the rack rails, aligning mounting holes precisely. Secure the chassis with screws at the top and bottom of both sides, ensuring the unit is level and stable before proceeding.
- Power considerations: Since the chassis ships with two 1280 W power supplies installed, connect each PSU to a suitable, protected power circuit that supports redundancy. Verify that both power supplies are detected and that power indicators are functioning after enabling the rack power.
- Drive and motherboard configuration: Depending on your deployment, install or configure the EATX motherboard and attach required PCIe expansion cards in the seven available slots. Route data and management cables cleanly to minimize airflow obstruction and simplify future maintenance.
- Storage deployment: Install drives into the 72 external 2.5" bays according to your storage plan, ensuring proper alignment and secure connection to backplane interfaces where applicable. Organize cabling to promote airflow and simplify future replacements or upgrades.
- Final checks and power-on: Double-check that all cables are routed neatly, panels are closed, and that airflow paths are unobstructed. Power on the chassis and run initial hardware checks, including POST and BIOS configuration as required by your server software stack.
