Supermicro SuperChassis 823MTQC-R802LPB

SupermicroSKU: 5918005

Price:
Sale price$1,117.62

Description

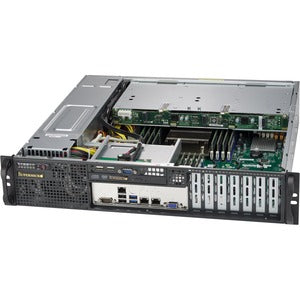

Supermicro SuperChassis 823MTQC-R802LPB

Introducing the Supermicro SuperChassis 823MTQC-R802LPB, a rugged, rack-mountable 2U chassis designed for enterprise-grade performance, dense storage, and scalable server configurations. Built with a durable black enclosure, this chassis is optimized for reliability, easy serviceability, and efficient cooling in data centers, server rooms, and high-density deployments. With dual 800W power supplies installed, it delivers essential uptime for mission-critical workloads while its thoughtful layout accommodates EATX, ATX, and EE-ATX motherboards, providing flexibility for a wide range of builds—from virtualization hosts to storage-focused servers. The chassis supports up to 7 expansion slots and 3 external 3.5" drive bays, delivering a balanced mix of expansion, I/O, and storage. Four pre-installed 1.57" fans, plus the option to add up to two more, ensure robust cooling for processors, memory, and PCIe cards in a compact 2U footprint. If you’re seeking a dependable, feature-rich chassis to anchor your next server or storage appliance, the 823MTQC-R802LPB offers a compelling blend of capacity, airflow, and reliability in a space-saving form factor.

  • Flexible motherboard support: Designed to accommodate EATX, ATX, and EE-ATX motherboards, offering expansive compatibility for diverse server builds and multi-GPU configurations without compromising space or airflow.
  • Enhanced storage options: Three external 3.5" drive bays provide convenient access to hot-swap storage, ideal for data-centric workloads, backups, and RAID-based configurations in a compact 2U chassis.
  • Robust expansion: Seven total PCIe/expansion slots in a streamlined 2U chassis enable powerful I/O layouts, high-speed networking, and PCIe card density for accelerators, RAID controllers, or NICs.
  • Efficient cooling and airflow: Four pre-installed 1.57" (40mm) fans deliver reliable cooling for mid-to-high performance workloads, with support for up to six fans to maximize thermal headroom for demanding deployments.
  • Resilient power configuration: Two 800W power supplies are installed, providing essential power redundancy and headroom for peak workloads and future upgrades without needing immediate components.

Technical Details of Supermicro SuperChassis 823MTQC-R802LPB

  • Chassis type: 2U rack-mountable enclosure, optimized for dense server deployments.
  • Color: Black powder-coated finish for durability and a professional data-center appearance.
  • External drive bays: 3 x external 3.5" bays for easy access to hot-swap storage and rapid maintenance.
  • Motherboard support: EATX, ATX, and EE-ATX form factors to cover a wide range of server configurations.
  • Expansion slots: 7 x PCIe expansion slots to accommodate high-density I/O, GPUs, NVMe adapters, RAID controllers, and advanced NICs.
  • Cooling: 4 x 1.57" (40mm) fans installed; chassis supports up to 6 fans for enhanced thermal performance in dense workloads.
  • Power supply: 2 x 800W power supplies installed to improve uptime and provide adequate headroom for power-hungry components.
  • Chassis height: 2U form factor suitable for standard 19" racks and moderate data-center footprints.
  • Overall design: Built for reliability, serviceability, and scalability, making it a solid foundation for virtualization, storage arrays, and multi-purpose servers.

How to install Supermicro SuperChassis 823MTQC-R802LPB

  • Verify that your rack space and rails are compatible with a 2U chassis and that the rack is stable and properly grounded.
  • Power down the facility and unplug all equipment before beginning installation to ensure safety and protect components.
  • Mount the chassis into the rack using the appropriate mounting hardware, ensuring it is level and securely fastened to prevent vibration during operation.
  • Install the motherboard into the chassis, aligning with the I/O shield and standoff pattern for EATX, ATX, or EE-ATX, then tighten screws to secure the board in place.
  • Insert memory, add PCIe cards, and connect any required storage controllers or NVMe adapters according to your build plan, keeping airflow paths clear of cables and obstructions.
  • Connect the dual 800W power supplies, ensuring both units are seated correctly and wired to provide redundant or shared power as your configuration requires.
  • Install the 3 external 3.5" bays with the desired drives, and configure storage in BIOS/UEFI or your operating system’s RAID controller software as needed.
  • Route all power, data, and fan cables neatly behind the motherboard tray or along cable management channels to maximize airflow and simplify maintenance.
  • Close the chassis panels, re-check all connections, and power on the system to perform initial POST tests and hardware recognition checks.
  • Fine-tune fan curves and thermal settings in BIOS/UEFI if needed, balancing cooling performance with noise considerations for your environment.

Frequently asked questions

  • Q: What motherboard sizes are supported by the 823MTQC-R802LPB?
    A: It supports EATX, ATX, and EE-ATX motherboards, offering flexibility for a wide range of server configurations.
  • Q: How many external drive bays does this chassis provide?
    A: It includes 3 external 3.5" drive bays for convenient hot-swap storage and easy maintenance.
  • Q: How many power supplies are included?
    A: The chassis arrives with two 800W power supplies installed, providing essential power headroom and potential redundancy depending on configuration.
  • Q: How many fans are installed, and can I add more?
    A: Four 1.57" (40mm) fans are installed, with support for up to six fans total for enhanced cooling in dense workloads.
  • Q: How many PCIe expansion slots does the chassis offer?
    A: The 823MTQC-R802LPB provides seven expansion slots, enabling a versatile mix of GPUs, NICs, RAID controllers, and other PCIe cards.
  • Q: What is the ideal use case for this chassis?
    A: It is well-suited for enterprise servers, virtualization hosts, storage arrays, and general-purpose 2U deployments that require reliable power, flexible motherboard support, and accessible storage.
