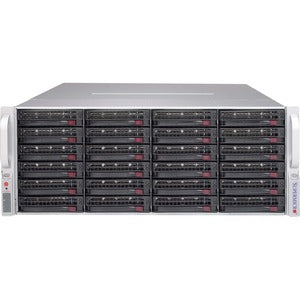

Supermicro SuperChassis Drive Enclosure — 4U Rack-Mount, 44-Bay Mini-SAS JBOD

The Supermicro SuperChassis Drive Enclosure is a high-density, enterprise-grade JBOD solution designed to boost storage capacity without sacrificing manageability or reliability. Built for data centers, labs, and archival workloads, this 4U rack-mountable chassis delivers up to 44 x 3.5" drive bays, enabling massive capacity within a conventional 19-inch rack. It is engineered to work with a wide range of SAS/SATA drives and storage controllers, making it a versatile backbone for expanding archives, backups, or demanding virtualized storage pools. The enclosure features four external Mini-SAS HD (SFF-8644) connectors for robust connectivity, coupled with an IPMI RJ45 port for remote monitoring and power control, giving administrators the control they need even from remote locations. A rugged steel frame and efficient cooling design ensure stable operation in busy data centers, while palletized Ethernet packaging protects the chassis during shipping and handling. For organizations seeking scalable, durable storage expansion with centralized management, the SuperChassis Drive Enclosure represents a dependable choice that grows with your storage needs.

• Dense, scalable capacity: This chassis supports up to 44 x 3.5" drives in a compact 4U form factor, enabling large-scale storage expansions for NAS, SAN, backup, and archival workloads. The design is compatible with a broad range of SAS/SATA drives and can be configured for various performance and capacity requirements, giving you the flexibility to tailor your storage infrastructure to specific workloads.
• Robust connectivity for expansion: Equipped with 4 external Mini-SAS HD (SFF-8644) connectors, the enclosure provides high-bandwidth pathways to your storage controllers or JBOD backplanes. This setup supports scalable data transfer rates and simplifies cabling for multi-controller environments, making it easy to grow capacity without re-architecting your storage layout.
• Integrated remote management: An IPMI RJ45 port enables out-of-band management, remote monitoring, event alerts, and power control. Administrators can manage, diagnose, and reboot the enclosure from anywhere on the network, helping to minimize downtime and accelerate incident response while keeping critical workloads online.
• Reliability and rugged design: The 4U rack-mountable chassis is built with a sturdy black enclosure designed for data center environments. Its cooling design, solid construction, and support for hot-swappable drives (depending on drive sleds and controller compatibility) help maximize uptime and simplify maintenance in high-demand situations.
• Secure packaging and shipping readiness: The enclosure ships in Ethernet palletized packaging, designed to protect the unit during transport and handling. This packaging approach reduces the risk of damage in transit, ensuring that customers receive a pristine chassis ready for deployment in production environments.

Technical Details of Supermicro SuperChassis Drive Enclosure

• Drive bays: 44 x 3.5" bays (total bays 44) for high-density storage expansion
• Form factor: 4U rack-mountable chassis compatible with standard 19" racks
• Connectivity: 4 external Mini-SAS HD (SFF-8644) connectors to connect to SAS/SATA backplanes or controllers
• Management: IPMI RJ45 port for remote management, monitoring, and power control
• JBOD support: Designed for JBOD deployments and expandable storage configurations
• Chassis finish: Black steel enclosure for durability in data center environments
• Packaging: Ethernet palletized packaging for secure shipping and handling
• Intended use: Ideal for data centers requiring dense storage expansion, backup, and archival storage solutions

How to install Supermicro SuperChassis Drive Enclosure

• Step 1: Prepare a standard 19" rack and ensure there is adequate clearance for airflow and cable management. If rails are included, install them according to your rack’s specifications and the enclosure’s mounting points.
• Step 2: Mount the chassis securely into the rack rails and attach any necessary anti-tip or stabilizing hardware. Verify that power distribution and cooling are configured to handle the full 44-drive load.
• Step 3: Connect the four external Mini-SAS HD (SFF-8644) cables from your storage controller, JBOD expansion unit, or backplane to the corresponding external ports on the enclosure. Use high-quality cables with secure latching to prevent accidental disconnects.
• Step 4: Connect the IPMI RJ45 management port to your out-of-band management network. Access the IPMI interface to configure alerts, user accounts, and remote power controls, enabling proactive monitoring and quick remediation.
• Step 5: Install drives into the 44 x 3.5" bays as required by your deployment. Confirm drive detection in your storage controller or JBOD management software, then configure your storage array or pass-through as needed. Ensure proper cooling and cable routing to maintain airflow and serviceability.

Frequently asked questions

• Q: How many drives can this enclosure hold? A: It supports up to 44 x 3.5" drives, providing 44 total bays in a single 4U chassis.
• Q: What connectivity options are provided? A: The enclosure includes four external Mini-SAS HD (SFF-8644) connectors for high-speed backplane connections, plus an IPMI RJ45 port for remote management and monitoring.
• Q: Is this suitable for JBOD deployments? A: Yes. It is designed to function as a JBOD chassis and can be integrated with compatible storage controllers and expansion enclosures to build scalable storage pools.
• Q: What is the physical form factor? A: The unit is a 4U rack-mountable chassis intended for standard 19-inch racks used in data centers and professional environments.
• Q: How is the enclosure shipped? A: It ships with Ethernet palletized packaging to protect the chassis during transport and handling, facilitating safer delivery to data centers or resellers.
