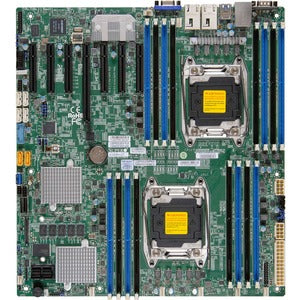

Supermicro X10DRH-iT Server Motherboard - Intel C612 Chipset, Socket LGA 2011-v3, Extended ATX

The Supermicro X10DRH-iT is a high-performance, enterprise-grade server motherboard built to power dense data-center workloads, virtualization environments, and mission-critical applications. Designed around the Intel C612 chipset and engineered for dual Xeon configurations, this Extended ATX board delivers exceptional memory bandwidth, expansive I/O options, and robust remote management features that IT teams rely on for consistent uptime and scalable growth. With its dual LGA 2011-v3 sockets, the X10DRH-iT enables flexible processor choices from the Xeon E5 family, empowering organizations to balance compute power, energy efficiency, and workload requirements in a single, future-proof platform. From virtualization hosts and database servers to HPC nodes and multi-GPU workstations, this motherboard is optimized for performance, reliability, and easy administration in demanding server environments.

• Dual Xeon support with LGA 2011-v3 sockets ensures ample multi-processor performance for virtualization, large databases, AI/ML workloads, and queueing-heavy enterprise apps, all while maintaining data integrity and predictable latency.
• Intel C612 chipset provides robust I/O, memory bandwidth, and platform reliability features tailored for 24/7 data-center operation, delivering stable performance across diverse workloads and high-availability configurations.
• DDR4 ECC memory compatibility supports error-correcting, registered DIMMs across multiple channels, enabling higher memory density and improved data integrity for critical applications and virtualized environments.
• Extensive PCIe 3.0 expansion options allow GPUs, storage controllers, RAID adapters, and accelerator cards to accelerate AI, analytics, and storage-intensive tasks while preserving bandwidth for each device.
• Integrated server-management capabilities, including IPMI 2.0 with remote KVM, hardware monitoring, and remote power control, plus flexible SATA/SAS storage connectivity to suit enterprise storage arrays and hot-swappable drives.

Technical Details of Supermicro X10DRH-iT Server Motherboard

Key specifications emphasize enterprise reliability and scalability, making this motherboard a versatile foundation for data centers and enterprise workloads. Highlights include an Extended ATX form factor for generous expansion, dual LGA 2011-v3 sockets to support a broad range of Xeon E5 v3/v4 processors, and the Intel C612 chipset that underpins robust I/O and memory architectures. The platform is designed for DDR4 ECC memory in multi-channel configurations, enabling high memory throughput and improved data integrity. With multiple PCIe 3.0 slots, administrators can deploy GPUs for compute acceleration, high-speed networking, or hardware RAID controllers to meet demanding storage and performance requirements. Onboard management features provide secure, remote control and monitoring, reducing the need for on-site administration and enabling rapid response to potential issues.

• Form Factor: Extended ATX (E-ATX) motherboard designed for dense server chassis and enterprise deployments.
• Chipset: Intel C612, delivering optimized I/O and memory pathways for dual-processor configurations.
• Socket: 2 x LGA 2011-v3 sockets, supporting Intel Xeon E5 v3/v4 family processors for scalable performance.
• Memory: DDR4 ECC DIMMs with multi-channel support, enabling high-density memory configurations and data integrity features.
• Expansion: PCIe 3.0 expansion slots for graphics, storage controllers, networking cards, and accelerators to boost throughput and I/O.
• Storage: SATA/SAS connectivity with RAID options to support local storage arrays and enterprise-grade redundancy.
• Management: IPMI 2.0 with remote KVM and environmental monitoring for centralized, out-of-band management.
• Networking: Onboard and add-on NIC options to satisfy diverse data-center networking topologies and bandwidth requirements.

How to Install Supermicro X10DRH-iT Server Motherboard

• Prepare the chassis: Ensure the chassis is compatible with an Extended ATX motherboard, verify standoff alignment with the motherboard tray, and install the I/O shield securely before any component installation.
• Install the CPUs: Open the LGA 2011-v3 socket levers, align the processors carefully with the notches, seat them evenly, and close the socket levers to lock the CPUs in place. If installing two processors, repeat the steps for the second socket and verify socket harness alignment.
• Apply cooling and mount heatsinks: Apply an appropriate amount of thermal interface material and mount the CPU heatsinks or coolers designed for dual-processor servers. Ensure proper mounting pressure and clearance for memory modules and PCIe cards.
• Install memory modules: Following the motherboard’s memory population guidelines, insert DDR4 ECC DIMMs into the recommended DIMM slots for every CPU, ensuring they click firmly into place. Verify memory channel balance across CPUs to maximize bandwidth and stability.
• Attach PCIe expansion cards: Install GPUs, RAID controllers, or high-speed NICs into the PCIe slots, securing each card with screws or retention brackets as required. Arrange slots to optimize airflow and maintain adequate cooling for hot components.
• Connect storage and power: Attach SATA/SAS cables to storage devices and the motherboard’s storage connectors. Connect power cables from the server PSU to the motherboard power connectors and any CPU power rails as needed, ensuring clean cable routing for airflow.
• Configure BIOS/UEFI: Power on the system and enter the BIOS/UEFI to configure processor settings, memory speeds, PCIe slot preferences, and storage controller modes. Apply the latest BIOS/firmware updates if available and set boot priorities to enable operating system deployment.
• Set up remote management: Enable IPMI and configure network access for out-of-band management, enabling remote monitoring, KVM, and alerting to streamline administration and rapid response to hardware events.

Frequently asked questions

• What processors does the X10DRH-iT support? It is designed to support Intel Xeon E5 v3 and v4 family processors in dual LGA 2011-v3 sockets, delivering scalable compute for virtualization, databases, and data-intensive workloads.
• Is ECC memory supported? Yes. The board supports DDR4 ECC memory, enabling error correction across multi-channel memory configurations for improved reliability in critical workloads.
• What kind of storage options does it offer? The motherboard provides SATA/SAS connectivity with RAID capabilities, allowing flexible local storage configurations and redundancy for enterprise deployments.
• Does it include remote management features? Yes. IPMI 2.0 with KVM over IP is included for out-of-band management, along with hardware monitoring to keep tabs on temperatures, voltages, and fans.
• What is the form factor and expansion potential? The X10DRH-iT uses an Extended ATX form factor and offers multiple PCIe 3.0 expansion slots for GPUs, storage controllers, NICs, and accelerators to meet diverse workload needs.
