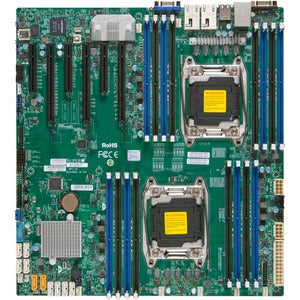

Supermicro X10DRi-T Server Motherboard - Intel C612 Chipset, Socket LGA 2011-v3, Extended ATX

The Supermicro X10DRi-T is engineered to be the backbone of high-performance servers and dense compute platforms. Built around the Intel C612 chipset and Socket R3 (LGA 2011-v3), this Extended ATX motherboard is purpose-built to harness the power of dual Intel Xeon E5-2600 v3 family processors. It delivers enterprise-grade reliability, abundant memory bandwidth, and expansive I/O capabilities that your data center, virtualization cluster, or HPC environment demands. Whether you’re deploying virtualization hosts, large-scale databases, or robust AI inference engines, the X10DRi-T provides a solid foundation for scalable, energy-conscious performance with advanced remote management features that keep your operations running smoothly around the clock.

• Dual-processor architecture for maximum compute power: Designed to pair with two Intel Xeon E5-2600 v3 (Haswell) CPUs, the X10DRi-T unlocks multi-core performance and outstanding parallel processing. This enables you to run multiple virtual machines, containerized workloads, and compute-intensive applications side by side with minimal contention, making it ideal for virtualization hosts and mission-critical workloads.
• Intel C612 chipset and LGA 2011-v3 socket: The C612 platform delivers robust memory bandwidth and flexible I/O to support high-throughput workloads. The LGA 2011-v3 socket provides compatibility with the latest Xeon E5-2600 v3 processors, ensuring efficient power delivery and scalable performance for demanding enterprise environments.
• Memory versatility with ECC DDR4 support: The X10DRi-T is designed to maximize memory resilience and density. It supports ECC DDR4 DIMMs across multi-channel configurations, enabling error-correcting memory for critical workloads and large-cache applications. This is essential for virtualization, databases, and in-memory processing where data integrity matters most.
• Extensive expansion and I/O options: With multiple PCIe 3.0 slots and rich storage connectivity, this motherboard accommodates GPUs, acceleration cards, RAID controllers, and high-speed NVMe or SATA/SAS storage adapters. You’ll enjoy flexible boot and data paths, faster I/O throughput, and scalable performance as your workloads evolve.
• Management, reliability, and enterprise-grade features: Integrated IPMI 2.0 with KVM over IP, robust server-grade components, and support for remote management features provide administrators with out-of-band access, monitoring, and control. These capabilities reduce downtime, streamline maintenance, and help you manage complex deployments with confidence.

Technical Details of Supermicro X10DRi-T

• Form Factor: Extended ATX (E-ATX)
• Chipset: Intel C612
• Socket: LGA 2011-v3 (Socket R3)
• CPU Support: Dual Intel Xeon E5-2600 v3 family processors (Haswell-EP)
• Memory: Supports ECC DDR4 DIMMs across multi-channel memory architecture; configuration depends on CPU and DIMM choices
• Expansion: PCIe 3.0 expansion slots for graphics, storage controllers, accelerators, and high-speed networking
• Storage Connectivity: SATA/SAS options with support for RAID configurations via onboard controllers or add-on cards
• Networking and Management: Built-in IPMI 2.0 with KVM over IP and dedicated management interfaces for remote server administration

how to install Supermicro X10DRi-T

Installing the X10DRi-T in a compatible 2U, 4U, or larger chassis follows standard server motherboard practices. The process emphasizes careful handling, proper static precautions, and correct CPU/memory configuration to ensure reliable operation after power-up. Below is a concise guide to help you get started.

• Prepare your chassis by ensuring sufficient clearance, power supply compatibility, and proper standoffs aligned to the motherboard mounting holes.
• Install the CPUs: Insert each Intel Xeon E5-2600 v3 processor into its LGA 2011-v3 socket, align the notches, and secure with the socket retention mechanism. Apply thermal paste if required, and attach the appropriate heatsinks or cooling solutions per the chassis/CPU cooler guidelines.
• Install memory modules: Populate ECC DDR4 DIMMs according to the motherboard’s memory population guide. Start with the recommended slots for your CPU configuration to maximize memory bandwidth and stability; ensure DIMMs are fully seated.
• Mount the motherboard: Place the X10DRi-T into the chassis, align I/O shield and holes, and secure with screws. Connect power delivery cables and ensure proper cable routing to avoid obstructing fans or other components.
• Connect storage and expansion: Attach SATA/SAS drives or NVMe/PCIe storage controllers as needed. Install PCIe expansion cards in the available slots, slotting them fully and securing with screws. Connect data cables or controllers according to your storage strategy.
• Power, test, and configure: Power on the system and enter the BIOS/UEFI setup. Verify CPU, memory, and PCIe devices are detected. Configure boot order, RAID settings, and any CPU/memory optimization options. Enable IPMI features if remote management is required, and update firmware to the latest revisions for improved stability and security.

Frequently asked questions

• Q: What CPUs are supported by the X10DRi-T? A: It supports dual Intel Xeon E5-2600 v3 family processors (Haswell-EP) compatible with the LGA 2011-v3 socket. Always verify exact CPU compatibility with your BIOS version and Supermicro's latest documentation.
• Q: How many DIMMs can I install? A: The board is designed to support multi-channel ECC DDR4 memory across two CPU sockets. The exact DIMM count depends on the chosen CPUs and memory configuration; refer to the official memory population guidelines for best results.
• Q: Does this motherboard include remote management? A: Yes. It features IPMI 2.0 with KVM over IP, providing out-of-band administration, monitoring, and remote access capabilities for data-center operations.
• Q: What form factor is supported? A: The X10DRi-T uses Extended ATX (E-ATX) form factor, suitable for larger chassis designed to accommodate dual-socket layouts and multiple expansion cards.
• Q: Can I use PCIe GPUs or accelerators? A: Absolutely. The motherboard offers multiple PCIe 3.0 expansion slots to support GPUs, NICs, storage controllers, and other accelerators, enabling versatile deployments from virtualization to AI workloads.
• Q: Is there built-in storage or RAID support? A: The board provides onboard SATA/SAS connections and supports RAID configurations via integrated or add-on controllers. For advanced RAID features, you may opt for dedicated RAID controllers compatible with your drives.
