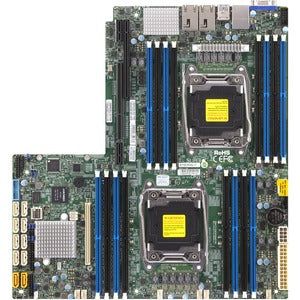

Supermicro X10DRW-iT Server Motherboard — Intel C612 Chipset, LGA 2011-v3 Dual-CPU Platform

The Supermicro X10DRW-iT is a premium dual-socket server motherboard built to tackle today’s most demanding data-center workloads. Leveraging the Intel C612 chipset and socket LGA 2011-v3, this board is engineered for enterprise-grade reliability, scalable performance, and expansive I/O support. Designed around Intel Xeon E5 family processors, the X10DRW-iT delivers robust multi-core performance for virtualization, databases, HPC workloads, and high-density compute clusters. Its proprietary form factor is optimized for seamless integration into Supermicro chassis and optimized thermal management in dense rack environments. Whether you’re deploying a virtualization host, a storage node, or a compute-intensive workstation cluster, this motherboard is engineered to maximize uptime, efficiency, and performance across mission-critical workloads.

• Dual-processor performance for demanding workloads: Built to host two Intel Xeon E5 family processors, the X10DRW-iT delivers superior multi-core throughput that powers virtualization platforms, large-scale databases, analytics, and HPC tasks with consistent, predictable performance.
• Enterprise-grade reliability and manageability: Equipped with robust power delivery and memory reliability features, including support for error-correcting code (ECC) memory, to maintain data integrity and uptime in 24/7 operations. Comprehensive remote management capabilities help administrators monitor, update, and diagnose systems from anywhere.
• Extensive expandability for growth: A rich assortment of PCIe expansion slots, storage interfaces, and I/O options enables deployment of GPUs, NICs, RAID controllers, and high-capacity storage configurations. This makes the X10DRW-iT ideal for virtualization hosts, storage-heavy nodes, and compute-intensive workloads that require flexible I/O.
• Optimized for virtualization and data-intensive workloads: The combination of the Intel C612 chipset and dual Xeon processors delivers excellent memory bandwidth and I/O throughput, enabling dense VM deployments, containerized workloads, and real-time data analytics with strong scaling and efficiency.
• Ready for modern data centers with proactive management: Built-in management features support remote administration, firmware updates, health monitoring, and firmware rollback, reducing downtime and easing ongoing maintenance in busy data-center environments.

Technical Details of Supermicro X10DRW-iT Server Motherboard

• CPU support: Dual Intel Xeon E5-2600 v3 family processors (Haswell) supported on LGA 2011-v3 sockets.
• Chipset: Intel C612 chipset for enterprise-class I/O and memory performance.
• Socket: LGA 2011-v3 sockets designed for dual-socket operation.
• Form factor: Proprietary Supermicro motherboard form factor optimized for integration with compatible chassis and cooling layouts.
• Memory: Supports ECC memory with multi-channel configuration to maximize reliability and throughput; capacity depends on modules installed and CPU capabilities.
• Expansion: Multiple PCIe 3.0 expansion slots to accommodate accelerators, network adapters, storage controllers, and other add-in cards.
• Storage: Onboard SATA/SAS interfaces and compatibility with additional storage controllers for scalable storage configurations; suitable for RAID-enabled deployments via compatible controllers.
• Networking: Onboard networking options with room for expansion to meet diverse network topologies in data centers.
• Management: IPMI 2.0-compliant remote management with KVM over IP capabilities for out-of-band administration and monitoring.
• Power and reliability: Robust VRMs and power delivery designed to support 24/7 operation in dense rack environments, with emphasis on stability and uptime.

How to install Supermicro X10DRW-iT Server Motherboard

• Prepare the chassis: Verify chassis compatibility with the X10DRW-iT’s proprietary form factor and ensure adequate cooling, power supply, and cable management for optimal airflow.
• Install CPUs: Install the two Intel Xeon E5-2600 v3 processors into the LGA 2011-v3 sockets, applying the correct amount of thermal interface material as recommended by Intel and Supermicro. Secure heatsinks and verify proper seating.
• Mount memory: Insert ECC RAM modules into the designated memory banks, following the manufacturer’s guidelines for channel population to maximize memory bandwidth and stability.
• Attach expansion cards: Install PCIe add-in cards (GPU, NICs, storage controllers) into the available PCIe slots, ensuring proper seating and screw mounting to prevent vibration.
• Connect storage and power: Attach SATA/SAS drives or storage controllers as required, connect power cables from the chassis, and route data cables to the appropriate ports on the motherboard or controller cards.
• Install I/O and management connections: Connect network interfaces, IPMI management headers, and any required fan or sensor headers, ensuring clean cable routing for optimal airflow.
• Secure into chassis and power up: Place the motherboard into the chassis, bolt it securely, connect the main power supply, and boot. Enter the system BIOS/UEFI to configure boot devices, memory timing, and CPU settings as needed.
• Update firmware and configure storage: Update BIOS/firmware to the latest versions, configure RAID or storage controllers, and set virtualization or cluster options according to workload requirements.
• Validate and deploy: Run diagnostic tests, verify post, confirm operating system installation, and configure IPMI/KVM access for remote management and ongoing monitoring.

Frequently asked questions

• Q: What processors are supported on the X10DRW-iT? A: The board is designed for dual Intel Xeon E5-2600 v3 family processors (Haswell) installed in the LGA 2011-v3 sockets.
• Q: Which chipset does this motherboard use? A: Intel C612 chipset, providing enterprise-class I/O and memory performance for dual-processor configurations.
• Q: Is ECC memory supported? A: Yes, the board supports ECC memory to enhance data integrity and reliability in critical workloads.
• Q: Does the X10DRW-iT offer remote management? A: Yes, it includes IPMI 2.0-compliant remote management with KVM over IP to monitor and manage the system remotely.
• Q: What form factor is this board? A: It uses a proprietary form factor optimized for integration with compatible Supermicro chassis and cooling solutions.
