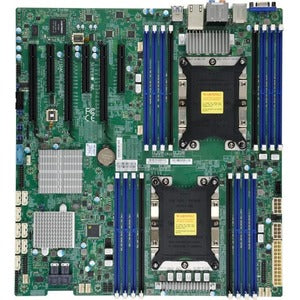

Supermicro X11DAC Workstation Motherboard — Intel C621 Chipset, Socket P LGA-3647, Extended ATX

Designed for high-powered workstations and DP server configurations, the Supermicro X11DAC motherboard delivers exceptional performance, scalability, and reliability. Built around the Intel C621 chipset and Socket P (LGA-3647), this Extended ATX motherboard is purpose-built for Intel Xeon Scalable processors, offering robust memory capacity, expansive I/O, and advanced management features. If your workload demands mission-critical uptime, significant memory bandwidth, and flexible expansion options, the X11DAC is engineered to meet and exceed those demands while remaining energy-efficient and secure.

• Extreme performance and scalability: Engineered for Intel Xeon Scalable Processors in dual-processor (DP) configurations, the X11DAC combines top-tier processing with a server-grade core architecture. This platform is optimized for virtualization, data analytics, 3D rendering, and workstation applications that require sustained compute power and reliability.
• Massive memory capacity: Support for up to 3TB of DDR4 RAM at 2666MHz across 24 DIMM slots enables large in-memory datasets, complex simulations, and multi-user workflows without bottlenecks. ECC memory support helps detect and correct errors to protect mission-critical workloads.
• Flexible storage and expansion: A comprehensive set of storage options, including NVMe and SATA interfaces, plus multiple PCIe expansion slots, provide generous room for fast solid-state caches, high-performance RAID arrays, and specialty add-in cards. This enables faster boot times, quicker data access, and accelerated I/O throughput for demanding apps.
• Robust management and reliability: Enterprise-grade features such as IPMI-based remote management, hardware monitoring, temperature and voltage sensors, and redundant components designed for long-term reliability. Built to handle 24x7 workloads in professional environments while delivering consistent operational stability.
• Extensive I/O and thoughtful design: The Extended ATX form factor, dual Ethernet options, and a rich set of USB, PCIe, and storage connections make the X11DAC a versatile backbone for workstations, render nodes, and small-scale data centers requiring a single, scalable motherboard platform.

Technical Details of Supermicro X11DAC Workstation Motherboard

• Form Factor: Extended ATX (E-ATX) motherboard designed for roomy chassis with ample airflow and expansion room.
• Chipset: Intel C621 chipset, delivering enterprise-grade reliability and performance for Xeon Scalable platforms.
• Socket: Socket LGA-3647 (Socket P) compatible with Intel Xeon Scalable processors for DP configurations.
• Memory Support: Up to 3TB of DDR4 RAM at 2666MHz across 24 DIMMs. Supports ECC memory for error detection and correction to improve uptime and data integrity.
• CPU Support: Ready for Intel Xeon Scalable processors, with dual-processor (DP) configurations available on appropriate SKUs, enabling scalable compute power for demanding workloads.
• Storage Options: Flexible storage with NVMe PCIe solutions and SATA interfaces to deliver high-speed data access, fast boot times, and versatile data throughput for large datasets and media workloads.
• Expansion: Multiple PCIe slots for high-bandwidth add-in cards, graphics accelerators, RAID controllers, and other enterprise-grade expansion cards to tailor the system to precise needs.
• Management and Security: IPMI 2.0 with remote management, sensor data, and KVM over IP facilities, designed to simplify remote administration and improve security in professional environments.
• Networking: Onboard networking options designed to support reliable connectivity in workstation and server deployments, with options for additional NICs via PCIe.
• Reliability: Enterprise-grade VRMs, robust power delivery, and feature-rich design aimed at minimizing downtime and maximizing performance in compute-intensive tasks.

How to Install Supermicro X11DAC Workstation Motherboard

• Prepare a compatible Extended ATX chassis with adequate airflow and a high-quality power supply. Confirm that the chassis supports the DP configuration you intend to use (single or dual Xeon processors) and that there is space for expansion cards and storage devices.
• Install the CPU(s) into the LGA-3647 socket(s). Follow the processor orientation marks, apply thermal paste as required, and secure the heatsinks with the correct mounting hardware to ensure proper cooling and CPU stability.
• Install memory DIMMs in the recommended slots for optimal memory channel performance. Use ECC DDR4 modules to take advantage of error correction and system reliability. Route memory cables and verify that all DIMMs are fully seated.
• Mount the motherboard into the chassis using the appropriate standoffs. Connect the 24-pin main power, the CPU power connectors, and any additional power rails required by your DP configuration. Attach the motherboard power cables securely to prevent startup issues.
• Install storage devices (NVMe and SATA) and any PCIe expansion cards. Connect data and power cables as needed, ensuring no cables obstruct fans or airflow. Install an operating system or boot device and configure the BIOS/UEFI settings for your workload, including memory profiles, CPU options, and boot order.

Frequently Asked Questions

• Q: Is the Supermicro X11DAC suitable for workstations and DP server workloads? A: Yes. The X11DAC is designed for high-performance workstations and dual-processor server configurations, optimized for Xeon Scalable processors and demanding professional applications.
• Q: How much memory can I install? A: The board supports up to 3TB of DDR4 RAM across 24 DIMMs, enabling large memory footprints for virtualization, data analytics, and large-scale simulations.
• Q: What processors are supported? A: The motherboard is built around the Intel Xeon Scalable family and uses the LGA-3647 Socket P. Dual-processor configurations are supported on appropriate DP SKUs for higher compute capacity.
• Q: What form factor is this motherboard? A: It uses an Extended ATX (E-ATX) form factor, designed for spacious chassis with robust expansion capabilities.
• Q: Does it include remote management features? A: Yes. The board provides IPMI-based remote management and monitoring to simplify administration in professional environments.
