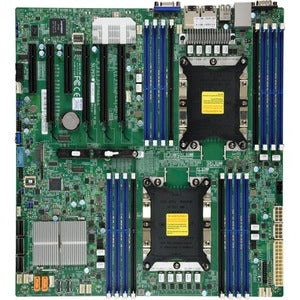

Supermicro X11DPI-N Server Motherboard - Intel C621 Chipset, Socket P LGA-3647, Extended ATX

The Supermicro X11DPI-N is a performance-driven dual-processor server motherboard built on the Intel C621 chipset and designed for today’s most demanding data-center workloads. With support for Intel Xeon Scalable processors on Socket P (LGA-3647), this Extended ATX board delivers exceptional performance, strong memory bandwidth, and scalable I/O for virtualization, databases, HPC, and analytics environments. It’s engineered to maximize reliability, security, and energy efficiency in enterprise deployments, offering a flexible platform that can scale with your workloads as your business grows. Whether you’re constructing a private cloud, a virtualization host, or a compute-heavy cluster, the X11DPI-N provides a solid foundation that combines robust hardware engineering with practical features to simplify deployment and maintenance.

• Dual-processor performance and scalability: The X11DPI-N supports two Intel Xeon Scalable processors on Socket P (LGA-3647) and leverages the Intel C621 chipset to deliver balanced multi-core performance, improved data throughput, and efficient power delivery. This design is ideal for heavily threaded workloads, virtualization clusters, and mission-critical databases that demand consistent latency and predictability under load.
• Massive memory capacity for memory-intensive workloads: With up to 3 TB of DDR4 memory across 24 DIMMs, the X11DPI-N enables large-scale in-memory databases, real-time analytics, and dense virtual machines with ample headroom. ECC DDR4 memory enhances data integrity and reliability essential for enterprise applications and data centers, helping reduce downtime due to memory errors.
• Versatile I/O and expansion options: The board provides a comprehensive expansion framework, including PCIe 3.0 slots for accelerators, GPUs, and additional networking or storage controllers. It supports a mix of NVMe and SATA storage interfaces, enabling fast data access and flexible storage architectures for databases, AI workloads, and high-performance computing tasks.
• Reliability, security, and remote management: Built for enterprise environments, the X11DPI-N emphasizes reliability with robust VRMs, support for ECC memory, and compatibility with redundant power configurations in suitable chassis. IPMI-based remote management allows hands-off monitoring, firmware updates, and alerting, helping administrators maintain systems efficiently across large deployments.
• Flexible deployment with Extended ATX form factor: The Extended ATX (E-ATX) layout accommodates a broad array of expansion cards and cooling options, making it suitable for dense data-center racks and scalable server builds. Its design supports professional-grade deployments while maintaining compatibility with standard chassis and mounting arrangements.

Technical Details of Supermicro X11DPI-N

• Form factor: Extended ATX (E-ATX)
• CPU support: Dual Intel Xeon Scalable processors (Socket P LGA-3647)
• Chipset: Intel C621
• Memory: Up to 3 TB DDR4 2666 MHz across 24 DIMMs
• Memory type: ECC DDR4
• Expansion: PCIe 3.0 expansion slots
• Storage options: SATA and NVMe interfaces for fast, scalable storage
• Networking: Onboard network connectivity with options for additional NICs
• Management: IPMI remote management for out-of-band monitoring

how to install Supermicro X11DPI-N

Installing the X11DPI-N is a straightforward process when you follow a methodical sequence designed for dual-Xeon servers. Begin with a compatible chassis and a power supply that can reliably support dual processors, large memory configurations, and your PCIe devices. Update the BIOS to the latest version from Supermicro’s support resources to ensure compatibility with the latest Xeon SKUs and PCIe devices. The steps below are intended to guide you through a clean, reliable installation that maximizes performance and longevity.

• Step 1: Prepare your chassis, rails, and cooling. Verify that the chassis can accommodate an Extended ATX motherboard and that there is ample airflow to keep the dual CPUs and memory operating within safe temperature ranges.
• Step 2: Install motherboard standoffs and position the X11DPI-N carefully, aligning the I/O shield and mounting holes with the chassis. Secure the board with the appropriate screws, ensuring even tension and no flex.
• Step 3: Install the CPUs into the Socket P (LGA-3647) sockets, using high-quality thermal paste and compatible heat sinks or coolers designed for dual Xeon configurations. Follow the CPU installation guidelines for socket alignment, locking levers, and ensuring proper seating to avoid cold solder or post-installation overheating.
• Step 4: Install memory modules in the recommended channels to achieve the full 24-DIMM capacity. Use ECC DDR4 memory rated for 2666 MHz to maximize stability and performance. Verify each DIMM is fully seated and recognized by the BIOS during POST.
• Step 5: Attach power connectors and all required data cables. Connect PCIe devices, NVMe drives, and SATA storage as per your storage plan. Ensure correct cabling to avoid boot or performance issues, and configure front-panel power and reset wiring according to the manual.
• Step 6: Power on and enter the BIOS. Update to the latest firmware if needed, configure boot order, CPU features, memory timings, and virtualization options. Enable IPMI and configure network management settings to enable remote monitoring when deployed in a data center.
• Step 7: Install your operating system and drivers. Ensure all PCIe devices, NICs, and storage controllers are detected, and verify that all memory is properly recognized across both CPU sockets. Perform a quick stress test and monitor initial temperatures to confirm cooling effectiveness.
• Step 8: Post-installation tuning. Apply RAID or software-defined storage configurations as required, set up monitoring tools, and test failover paths for high-availability deployments. Document the configuration for future maintenance and upgrades.

Frequently asked questions

• What processors are supported? The X11DPI-N is designed for Intel Xeon Scalable processors on the Socket P LGA-3647, delivering enterprise-grade performance and scalability for virtualization, databases, and compute workloads.
• How much memory can it handle? It supports up to 3 TB of DDR4 memory across 24 DIMMs, with ECC memory for data integrity and reliability in mission-critical applications.
• What form factor is this motherboard? It uses an Extended ATX (E-ATX) form factor, which provides ample space for expansion while fitting into standard data-center chassis and racks designed for enterprise servers.
• Does it include remote management? Yes, it supports IPMI-based remote management for efficient, out-of-band administration, monitoring, and firmware updates across remote deployments.
• What storage options are available? The motherboard offers flexible storage interfaces, including SATA and NVMe, enabling fast data access and scalable storage configurations suitable for databases and high-performance workloads.
