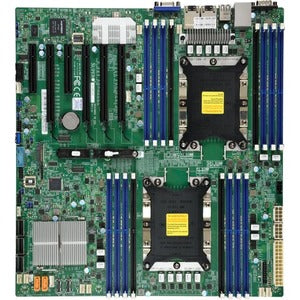

Supermicro X11DPI-NT Server Motherboard – Intel C622 Chipset, Socket P LGA-3647, Extended ATX

Engineered for enterprise-grade performance, reliability, and scale, the Supermicro X11DPI-NT Server Motherboard delivers a compelling platform for data centers, virtualization clusters, high-performance databases, and AI/compute workloads. Built on the Intel C622 chipset and Socket P LGA-3647, this Extended ATX board is designed to handle demanding Xeon® Scalable processors with robust memory bandwidth, rich I/O, and centralized management. IT teams seeking efficient and secure server infrastructure will appreciate features that balance raw compute power with practical expansion, high-availability capabilities, and streamlined maintenance. The X11DPI-NT is engineered to maximize uptime, optimize memory-rich workloads, and provide a flexible foundation for scalable rack deployments. Whether you’re building a compact 1U-to-2U server ecosystem or a dense multi-node environment, this motherboard offers the reliability and performance you need to meet evolving business needs.

• Processor and chipset compatibility: This board is designed around Intel Xeon® Scalable Processors using the Socket P LGA-3647 interface, paired with the Intel C622 chipset to deliver professional-grade performance, efficiency, and security. The combination is optimized for compute-intensive workloads, virtualization, and data-intensive applications, giving your server a strong foundation for demanding enterprise tasks.
• Massive memory capacity and speed: The X11DPI-NT supports DDR4 memory at high speeds with ECC capabilities, enabling large-scale memory configurations. With support for up to a substantial total RAM capacity across numerous DIMMs, you can run memory-hungry workloads such as in-memory databases, virtualization hosts, and big data analytics with reduced latency and improved reliability. The platform is designed to balance memory bandwidth and capacity, helping workloads maintain consistent performance under heavy load.
• Expansion, I/O, and storage flexibility: This motherboard offers a generous array of PCIe expansion options, along with SATA and NVMe storage support. The combination of multiple PCIe slots, fast storage interfaces, and robust I/O conveys a versatile foundation for GPUs, accelerators, network adapters, and fast SSDs. It’s built for workloads that demand high throughput and low I/O latency, whether you’re consolidating servers, accelerating AI inference, or hosting multiple virtual machines.
• Form factor and build for scalable deployment: As an Extended ATX motherboard, the X11DPI-NT is designed for enterprise chassis and rack systems, providing ample room for expansion and efficient airflow. The form factor supports a clean, organized build with straightforward cable management and component access. This layout is ideal for data centers aiming to maximize density without compromising serviceability or reliability.
• Management, security, and reliability: Enterprise-grade features include IPMI remote management, a robust chassis integration, and memory protection features that help minimize downtime. Built to support secure boot and other platform security enhancements, the X11DPI-NT helps safeguard workloads in multi-tenant environments. Its design also emphasizes reliability through ECC memory, error detection, and comprehensive monitoring, which are crucial for uptime-focused data centers and business-critical applications.

Technical Details of [product]

• CPU Socket: Socket P LGA-3647
• Chipset: Intel C622
• Form Factor: Extended ATX (E-ATX)
• Memory: DDR4, ECC/non-ECC supported, up to high-capacity configurations across 24 DIMMs
• DIMM Slots: Up to 24 DIMMs for maximum memory density and scalable performance
• Expansion: Multiple PCIe 3.0 slots for GPUs, accelerators, storage controllers, and high-speed NICs
• Storage: SATA and NVMe/PCIe storage options for a flexible array of boot and data drives
• Networking: Onboard and expansion options for robust network connectivity (IPMI-based management included)
• Management: IPMI 2.0 with remote KVM and monitoring features for comprehensive out-of-band management

how to install Supermicro X11DPI-NT Server Motherboard

• 01. Prepare the chassis: Verify that your chassis supports Extended ATX form factors, and install the appropriate standoffs in the motherboard tray. Ensure the power supply has adequate amperage for future expansion and that cooling is sufficient for dense configurations.
• 02. Install the CPU(s): Open the CPU socket(s) lever, align the CPU with the zero‑angle markers, and insert carefully. Apply a small amount of thermal interface material if required, then secure the heat sink or cooling solution. Ensure memory channels are populated according to the motherboard’s memory population guidelines for optimal bandwidth and stability.
• 03. Install memory modules: Place DDR4 DIMMs into the 24 DIMM slots in the recommended population order to maximize bandwidth and reliability. Use ECC memory if supported and enable memory protection features in BIOS for higher resiliency in production environments.
• 04. Attach the I/O shield and mount the board: Align the I/O shield with the chassis opening, then slide the motherboard into the chassis and secure it with the standoffs. Connect essential power connectors (24-pin ATX and CPU power) and the main data cables, ensuring a neat routing path for airflow and maintenance access.
• 05. Connect storage, PCIe, and network devices: Install NVMe or SATA drives, PCIe cards (such as NVMe controllers, RAID controllers, or GPU accelerators), and any additional NICs or management adapters. Double-check all cables for proper seating and secure routing to prevent obstruction of fans or heatsinks.
• 06. BIOS and firmware: Power on and enter BIOS setup to configure memory timings, CPU settings, boot order, and virtualization features as needed. Apply the latest BIOS/firmware updates from Supermicro and enable IPMI if you plan remote management. Create a stable baseline configuration and run a minimal hardware test before rolling into production.
• 07. Final checks and deployment: Run a health check of all subsystems, including memory, CPU temperatures, and fan speeds. Validate boot success, install your chosen operating system, and configure any required storage pools. Document the configuration for future maintenance and scale planning.

Frequently asked questions

• What processors does the X11DPI-NT support? It is designed for Intel Xeon® Scalable processors that use the Socket P LGA-3647 interface, providing enterprise-grade compute performance suitable for virtualization, database workloads, and data analytics.
• How much memory can I install? The board supports a high-density DDR4 memory configuration across up to 24 DIMMs, enabling very large total memory capacities when paired with compatible modules, ideal for memory-intensive workloads and virtualization hosts.
• What form factor is this motherboard? The X11DPI-NT uses an Extended ATX (E-ATX) form factor, which offers ample space for expansion cards, cooling solutions, and cable management in enterprise chassis.
• Does it include remote management? Yes, the board provides IPMI 2.0-based remote management, enabling out-of-band monitoring, remote KVM, and health reporting for data-center operations.
• What storage options are available? It supports a combination of SATA and NVMe/PCIe storage, providing flexible boot and data drive configurations suitable for diverse enterprise workloads.
• Is this board suitable for high-availability deployments? The platform is designed for reliability and enterprise workloads, with memory protection features, robust management, and scalable expansion to support high-availability configurations in data centers.
