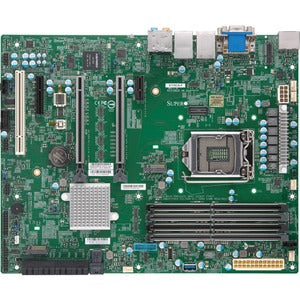

Supermicro X11SCA-F Workstation Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - ATX
The Supermicro X11SCA-F is a high-performance workstation motherboard built around the Intel C246 chipset and the LGA 1151 (Socket H4). Engineered for reliability and expansion, this ATX board is optimized for Xeon E-family processors, delivering the stability and speed professionals demand for 3D rendering, engineering simulations, data analysis, and multimedia workflows. With robust power delivery, flexible memory support, capable storage options, and a suite of expansion slots, the X11SCA-F provides a rugged foundation for demanding workstation builds while remaining compatible with a broad range of components and operating environments.
- Optimized for Xeon E processors: Designed to pair with the Xeon E-2100 family, offering dependable performance for multi-threaded workloads and professional-grade tasks that require consistent throughput and long-term reliability.
- Powerful, expandable ATX platform: Standard ATX form factor with multiple PCIe expansion options ensures you can add robust graphics, accelerators, or RAID controllers to meet advanced workflows and GPU-accelerated workloads.
- 4K video readiness and display versatility: Built to handle high-resolution output, enabling smooth 4K playback and multi-monitor setups essential for content creation, CAD, and digital media workflows.
- Flexible memory support for reliability: Supports DDR4 memory with capabilities for ECC and non-ECC configurations, providing a stable memory subsystem tailored to professional applications and mission-critical tasks.
- Rich storage and I/O options: A broad set of SATA and M.2 storage interfaces along with comprehensive I/O ports delivers fast data access, ample storage expansion, and convenient peripheral connectivity for workstation environments.
Technical Details of Supermicro X11SCA-F Workstation Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - ATX
- Chipset: Intel C246
- CPU Socket: LGA 1151 (Socket H4)
- Form Factor: ATX
- Memory Support: DDR4 memory with ECC and non-ECC options; supports multiple DIMMs for upgraded memory configurations
- Expansion Slots: PCIe expansion capabilities to accommodate discrete GPUs and PCIe add-ons
- Storage: SATA 6Gb/s ports and M.2 NVMe support for fast solid-state storage
- Networking: Onboard Ethernet for reliable network connectivity
- USB and I/O: A comprehensive set of USB ports and I/O interfaces for peripherals and external devices
- Power and Reliability: Robust power design tailored for workstation workloads and long-running tasks
How to install Supermicro X11SCA-F Workstation Motherboard
Preparing to install the X11SCA-F requires careful planning to ensure stability and compatibility. Start with a clean, static-free workspace and gather essential components including a compatible Xeon E-series processor, DDR4 memory, an ATX power supply, storage drives, a suitable case, and a thermal solution that matches the intended workload. Begin by updating your BIOS to the latest version if you can access it from another system or ensure you have a USB drive ready for BIOS updates after install. Follow these general steps to install the motherboard safely and effectively:
Step 1: Install the CPU. Open the CPU socket lever, align the processor with the Socket H4 pin layout, place it gently into the socket, and secure the lever. Apply a small amount of quality thermal paste if the cooler requires it, then prepare the cooling solution according to the cooler manufacturer’s instructions. Ensure the CPU is seated correctly and the cooler sits firmly to provide adequate thermal performance for sustained workloads.
Step 2: Install memory modules. Align the DDR4 DIMMs with the correct dual- or single-rank slots as dictated by your motherboard manual. Press firmly until the latches click, ensuring each DIMM is fully seated. If ECC memory is supported by your Xeon E processor and the board, install ECC modules to leverage error-correcting capabilities that improve stability under long compute sessions.
Step 3: Mount the motherboard in the case. Place the I/O shield in the case, align the motherboard standoffs with the chassis, and secure the board with the appropriate screws. Connect the main 24-pin ATX power connector and the 8-pin (or 4+4) CPU power connector. Double-check all connections before powering up to avoid short circuits or power delivery issues.
Step 4: Install storage and PCIe devices. Attach SATA drives and configure any M.2 NVMe storage devices in their respective slots or adapters. If you plan to add a discrete GPU or other PCIe add-ons, install them in the available PCIe slots, and secure the cards with screws. Ensure adequate airflow around any installed GPUs for thermal efficiency.
Step 5: Connect I/O, fans, and front panel. Attach case fans and fan headers to the appropriate motherboard headers. Connect USB, audio, and front-panel cables according to the motherboard’s manual. This step is essential for ensuring power, reset, and LED indicators function correctly after boot
Step 6: BIOS configuration and first boot. Power on and enter the BIOS/UEFI to verify detected hardware, memory timings, and CPU settings. Enable XMP/DOCP profiles if available to optimize memory performance. If you’re using Xeon E-2100 processors, ensure the processor microcode is up to date and adjust power/thermal settings to suit your workload. Save changes and proceed to install your operating system or imaging tools as needed.
Step 7: Install operating system and drivers. Install your preferred workstation OS, then install motherboard drivers and any chipset utilities from Supermicro or the motherboard vendor’s official sources. Update firmware, drivers, and utilities to ensure compatibility with your Xeon E-2100 processor family and your PCIe expansion cards. Test stability under load, run memory diagnostics, and verify storage performance to guarantee a smooth, ready-to-work environment.
Frequently asked questions
Q: What processors are compatible with the X11SCA-F?
A: The X11SCA-F is optimized for Intel Xeon E-series processors in the LGA 1151 family. It is designed to work with Xeon E CPUs and the LGA1151 platform, delivering workstation-grade performance for professional applications.
Q: Does this motherboard support ECC memory?
A: Yes, the X11SCA-F supports DDR4 memory, including ECC configurations where supported by the Xeon E-2100 processor and the memory modules used. ECC memory can provide error detection and correction to improve stability in long-running workloads.
Q: How many memory slots are available and what is the memory capacity?
A: The motherboard provides multiple DDR4 DIMM slots (typically up to four on this class of board). This configuration allows users to scale memory with up to several tens of gigabytes depending on module size and configurations, suitable for memory-intensive tasks.
Q: What storage options does the X11SCA-F offer?
A: The board includes SATA 6Gb/s ports and M.2 NVMe support, offering fast SSD options for operating systems, applications, and data storage. This combination supports a range of configurations for performance and capacity in professional workloads.
Q: Can I install a discrete GPU and other PCIe cards?
A: Yes. The X11SCA-F includes PCIe expansion slots that enable installation of discrete GPUs, RAID controllers, or other PCIe devices, making it suitable for graphics-intensive tasks or specialized acceleration needs.
Q: Is IPMI or remote management available on this motherboard?
A: Remote management features vary by model and firmware. Many Supermicro workstation boards include hardware monitoring and management features, but you should verify the exact remote management capabilities (such as IPMI) for the specific revision of the X11SCA-F in your order documentation or product page.
