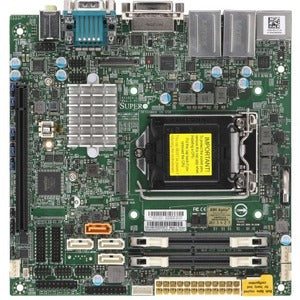

Supermicro X11SCV-L Desktop Motherboard - Intel H310 Chipset

Designed for compact, efficient builds, the Supermicro X11SCV-L is a Mini-ITX motherboard centered on the Intel H310 chipset and Socket H4 (LGA-1151). Built to harness the power of 8th Generation Intel Core processors, this board delivers dependable performance, solid energy efficiency, and versatile connectivity in a space-saving form factor. It’s an ideal choice for small form factor desktops, home offices, media centers, and compact workstations where reliability, upgradeability, and quiet operation matter as much as speed.

• Supports 8th Generation Intel Core processors (Coffee Lake) via the LGA1151 socket, delivering responsive, multi-core performance for everyday computing, content creation, and multitasking. This platform leverages the Intel H310 chipset for stable, efficient operation in compact builds.
• Compact Mini-ITX form factor (17 x 17 cm) fits beautifully into small cases without sacrificing essential features or expansion options, making it ideal for space-constrained environments such as home theaters, small offices, or portable workstation setups.
• Memory capacity up to 64GB of DDR4 RAM in dual-channel configuration provides ample headroom for multitasking, virtualization, and memory-intensive applications, while balancing power consumption and thermal output in a compact board.
• Flexible storage options include SATA ports for traditional drives and at least one M.2 slot for fast NVMe or SATA solid-state storage, enabling quick boot times, rapid data access, and scalable storage configurations for media libraries or project files.
• Reliable I/O and networking with onboard Gigabit Ethernet, robust USB connectivity, and integrated audio; supports broad peripheral compatibility and straightforward integration into desktop, workstation, or small business environments.

Technical Details of Supermicro X11SCV-L Desktop Motherboard

• Form Factor: Mini-ITX (17 x 17 cm)
• CPU Socket: LGA 1151 (Socket H4) — supports Intel 8th Generation Core processors
• Chipset: Intel H310
• Memory: 2 x DIMM, DDR4 SDRAM, up to 64GB total, dual-channel
• Memory Support: DDR4 supported with standard speeds for reliable performance
• Expansion: PCIe expansion slot for add-on cards and peripherals
• Storage: SATA 6Gb/s ports and at least one M.2 slot for NVMe or SATA SSDs
• Networking: Onboard Gigabit Ethernet
• Audio: High-definition audio subsystem for clear multimedia output
• BIOS: UEFI BIOS with modern management features

How to Install Supermicro X11SCV-L

Installing the X11SCV-L in a small form factor build is straightforward with a few key steps. Begin by preparing your workspace and gathering the essential components: the motherboard, a compatible 8th Gen Intel Core processor, DDR4 memory, a cooling solution, a case with Mini-ITX mounting, a power supply, and storage drives. Ensure you have the required mounting hardware and cables for your case model.

1) Install the CPU: Open the LGA1151 socket, align the processor correctly with the notches, and gently seat it into place. Close the socket lever and confirm the CPU is firmly seated. Apply a thin layer of recommended thermal paste on the CPU heat spreader if your cooler requires it.

2) Attach the CPU cooler: Mount your cooling solution securely to the motherboard, ensuring the cooler height fits within your case and that mounting hardware is appropriate for the socket type. Connect the cooler fan to the processor fan header on the motherboard.

3) Install memory: Open the DDR4 DIMM slots and align the memory modules with the notches. Press firmly until the latches snap into place and the modules are fully seated. Verify BIOS detects the installed memory during POST.

4) Mount the motherboard: Install standoffs into the case’s motherboard tray in the correct positions for Mini-ITX. Align the I/O shield with the case’s rear I/O opening, then secure the motherboard with screws. Route power, data, and case cables carefully to avoid interference with fans or components.

5) Connect storage: Install SATA drives in available ports or insert an M.2 SSD into the M.2 slot if your configuration includes one. Secure drives and connect data and power cables as required, keeping cables tidy for airflow.

6) Connect peripherals and power: Attach the case’s front-panel connectors (power button, reset, power LED, HDD LED) to the motherboard headers according to the pinout in the manual. Connect the 24-pin main power and the 8-pin (or 4+4) CPU power cables from your power supply to the motherboard, then connect any additional case USB and audio cables.

7) First boot and BIOS setup: Power on and enter the UEFI BIOS to verify temperatures, memory speed, and boot order. Enable XMP for memory if supported by your RAM, and adjust boot priorities to install your operating system. Update the BIOS to the latest version if necessary to ensure maximum compatibility and security.

8) Install the operating system: With the boot drive prepared, complete the OS installation, install essential drivers (chipset, storage, network, audio, and graphics if applicable), and configure system settings for optimal performance and reliability.

9) Post-install checks: Run a quick stability test, confirm storage and network connectivity, and monitor CPU and memory usage to ensure the system remains within safe thermal and power limits. Create a recovery backup plan to safeguard your configuration.

These steps provide a reliable, repeatable process for building a compact, high-performance system based on the X11SCV-L. Tailor your configuration to your intended use, whether it’s a compact workstation, a home server, a media center, or a space-efficient desktop station, while benefiting from the efficiency and stability of the Intel H310 platform.

Frequently asked questions

• What CPUs are supported by the X11SCV-L? — It supports Intel 8th Generation Core processors that fit the LGA1151 socket, providing solid performance for everyday tasks, content creation, and multitasking in a small form factor.
• How much memory can I install? — The board supports up to 64GB of DDR4 RAM in dual-channel configuration, giving you ample headroom for multitasking, virtualization, and memory-intensive apps.
• Does it have M.2 and SATA storage options? — Yes. The board includes SATA 6Gb/s ports plus at least one M.2 slot for fast NVMe or SATA solid-state drives, enabling fast boot times and rapid data access.
• Is this board suitable for gaming builds? — While it can accommodate a discrete GPU in an appropriate PCIe slot and support basic gaming setups, the X11SCV-L is primarily designed for compact desktops, workstations, and small servers. For high-end gaming, pairing with a capable GPU and cooling is recommended, but expect a form-factor and chipset that favor stability and efficiency over extreme gaming optimization.
• What operating systems are supported? — The board’s UEFI BIOS supports common operating systems such as Windows and Linux distributions. Always verify manufacturer driver availability for your chosen OS version to ensure full hardware support.
