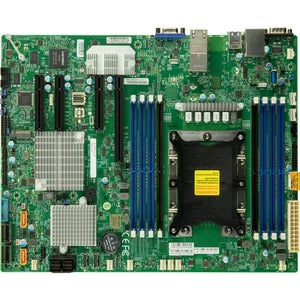

Supermicro X11SPH-NCTF Server Motherboard - Intel C622 Chipset - Socket P LGA-3647 - ATX

SupermicroSKU: 5001471

Price:
Sale price$1,039.41

Description

Supermicro X11SPH-NCTF Server Motherboard - Intel C622 Chipset - Socket P LGA-3647 - ATX

The Supermicro X11SPH-NCTF is a high-performance, single-processor server motherboard designed for data centers, enterprise workloads, and demanding compute tasks. Built around the Intel C622 chipset and Socket P (LGA-3647), this ATX board is optimized for Intel Xeon Scalable processors, delivering robust performance, efficiency, security, and scalability. It’s engineered to empower virtualization, databases, AI inference, HPC networking, and other resource-intensive applications with a solid foundation for reliability and long-term upgrade paths. With support for up to 1TB of DDR4 memory across 8 DIMMs at 2666MHz, the X11SPH-NCTF provides ample headroom for memory-intensive workloads while maintaining excellent bandwidth and latency characteristics. This motherboard is a strong choice for enterprises seeking a scalable, manageable platform that can grow with their evolving workloads.

  • Exceptional performance with Intel Xeon Scalable support: Designed to unlock the full potential of Xeon Scalable processors, the X11SPH-NCTF delivers enterprise-grade compute power, efficiency, and reliability to handle virtualization, databases, AI workloads, and high-demand services.
  • Massive memory capacity for demanding workloads: Up to 1TB of DDR4 memory across 8 DIMMs at 2666MHz provides abundant memory bandwidth and capacity for virtualization clusters, in-memory databases, large-scale simulations, and multi-tenant environments.
  • Flexible I/O and storage options: A comprehensive set of PCIe expansion possibilities along with standard storage interfaces support a wide range of add-in cards, NVMe/SSD storage, and fast data paths to meet evolving performance requirements.
  • Advanced remote management and security: Built-in remote management capabilities and features designed to support secure, remote administration, monitoring, and provisioning of servers in data-center or edge environments.
  • Easy deployment for reliable, scalable servers: ATX form factor and thoughtful design simplify integration into standard racks and chassis, with a focus on reliability, serviceability, and future-proofing for growing workloads.

Technical Details of Supermicro X11SPH-NCTF

  • Chipset: Intel C622
  • CPU Socket: LGA-3647 (Socket P)
  • Form Factor: ATX
  • Processor Support: Intel Xeon Scalable Processors (Single-Processor UP)
  • Memory: Up to 1TB DDR4 2666MHz across 8 DIMMs
  • Memory Type: DDR4 (industry-standard server memory for enterprise workloads)
  • Expansion & I/O: PCIe expansion slots for add-in cards and flexible I/O options to accommodate accelerators, NICs, and storage controllers
  • Storage: SATA interfaces with support for NVMe/SSD options via compatible adapters and configurations
  • Management: IPMI-based remote management for monitoring, remote console access, and out-of-band administration
  • Networking: Integrated networking capabilities and expansion-ready options to connect to modern data-center networks

How to install Supermicro X11SPH-NCTF

  • Power down all equipment and unplug the chassis. Prepare a clean workspace and ensure you have an appropriate ATX chassis with adequate cooling and clearance for a single-CPU server motherboard.
  • Open the chassis and install the necessary standoffs aligned with the motherboard mounting holes. Place the X11SPH-NCTF into the chassis and secure it with screws at each standoff location.
  • Install the processor into the LGA-3647 socket. Align the CPU correctly according to the socket keying, seat it firmly, and apply a suitable thermal interface material (if not pre-applied) before mounting the CPU cooler. Attach the cooler securely to ensure proper contact and cooling performance.
  • Insert memory modules into the designated DIMM sockets per the motherboard manual’s population guidelines. Ensure each DIMM is fully seated with a positive click and verify that the memory is recognized in the BIOS after the initial power-on.
  • Connect the 24-pin ATX power connector and the 8-pin (or 4+4) CPU power connector from the power supply to the motherboard. Attach any additional power connectors required by PCIe devices or NVMe storage adapters. Route cables neatly to promote airflow and ease future maintenance.
  • Install any PCIe expansion cards, NVMe drives, or storage controllers as needed. Connect SATA or NVMe storage devices according to your storage configuration and motherboard layout. If using IPMI, connect the appropriate management headers and ensure the management network is accessible.
  • Power on the system and enter the BIOS/UEFI. Update BIOS to the latest version if available, then configure boot devices, memory timing profiles, and any required virtualization or security options. Save changes and reboot to complete the setup.
  • Install the operating system and drivers as needed. Use the IPMI interface for remote monitoring and management during initial deployment or ongoing maintenance. Verify that all hardware components are functioning correctly and monitor system temperatures, fans, and power consumption to ensure optimal performance and reliability.

Frequently asked questions

  • What CPUs does the Supermicro X11SPH-NCTF support? It is designed to work with Intel Xeon Scalable processors using the Socket P (LGA-3647). It is a UP (uniprocessor) motherboard, intended for single-CPU configurations.
  • How much memory can I install? The board supports up to 1TB of DDR4 memory across 8 DIMMs, with memory speeds up to 2666MHz, providing ample bandwidth for virtualization and data-center workloads.
  • Does it include remote management capabilities? Yes. The motherboard includes IPMI-based remote management features to monitor, manage, and troubleshoot the system remotely, which is essential for data centers and remote offices.
  • What form factor is this motherboard? It uses the ATX form factor, making it compatible with standard ATX cases and many 1U/2U server chassis designs that accommodate ATX motherboards.
  • Is this board suitable for virtualization and enterprise workloads? Yes. With Xeon Scalable support, substantial memory capacity, and robust management features, it is well-suited for virtualization, databases, AI inference, and other demanding enterprise workloads.
