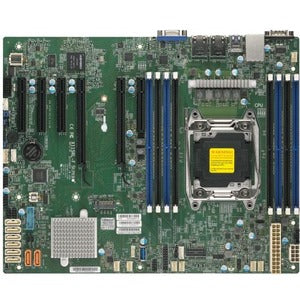

Supermicro X11SRL-F Server Motherboard - Intel C422 Chipset, LGA-2066 Socket, ATX

The Supermicro X11SRL-F Server Motherboard is a purpose-built solution designed for demanding data center workloads, virtualization, and enterprise applications. Built on the robust Intel C422 chipset and the LGA-2066 Socket R4 platform, this ATX motherboard delivers dependable performance, scalable memory, and features that simplify remote management and security. With a focus on reliability, compatibility with server-grade memory, and generous I/O options, the X11SRL-F is engineered to provide solid uptime, efficient power usage, and straightforward deployment in rack and tower servers alike.

• High-performance Xeon-ready platform: Powered by the Intel C422 chipset, the X11SRL-F is designed to support Intel Xeon Scalable processors in the LGA-2066 family, delivering strong multi-core performance for virtualization, databases, and workloads that demand sustained throughput. The combination of PCIe connectivity and a server-grade chipset enables reliable data paths and scalable I/O for demanding applications.
• Memory versatility and capacity: This motherboard offers 8 DIMM slots and supports DDR4 ECC memory in RDIMM and LRDIMM form factors, enabling up to a total of 512 GB of RAM. The memory architecture supports error-correcting features essential for data integrity in servers, enabling larger memory footprints for in-memory databases, caching layers, and virtualization environments while maintaining data reliability under load.
• Flexible storage and expansion options: With 8 SATA interfaces, the X11SRL-F provides abundant storage connectivity for operating systems, boot drives, and data disks. The board is designed to accommodate a range of storage configurations, from high-availability boot drives to expansive data arrays, making it suitable for database servers, file storage, and boot-to-cloud workflows. The scalable design also leaves room for PCIe expansion cards to boost networking, RAID, or acceleration features as your workloads evolve.
• Networking and remote management built-in: The motherboard includes Gigabit Ethernet and supports enterprise-grade remote management capabilities, enabling out-of-band administration, monitoring, and security controls. This combination helps IT teams deploy, monitor, and manage servers remotely, reducing on-site maintenance and providing quick access during issues or firmware updates.
• Enterprise-ready reliability and deployment: The X11SRL-F is crafted for server deployments, featuring an ATX form factor that fits common chassis and cooling solutions while delivering robust voltage regulation, hot-swap-friendly design considerations, and compatibility with standard server components. Its emphasis on security, stability, and long-term availability makes it a dependable backbone for virtualized environments, storage servers, and application hosting.

Technical Details of Supermicro X11SRL-F Server Motherboard

• Chipset: Intel C422
• CPU Socket: LGA 2066 (Socket R4)
• Form Factor: ATX
• Memory Slots: 8 DIMMs
• Memory Type: DDR4 ECC Registered (RDIMM) and Load-Reduced (LRDIMM) supported
• Maximum RAM: 512 GB
• Memory Support Note: Supports ECC memory with server-grade reliability; speeds vary by CPU and memory type
• SATA Interfaces: 8 x SATA
• Networking: Gigabit Ethernet
• Remote Management: Built-in remote management capabilities for out-of-band access and security monitoring
• Security and Reliability: Enterprise-grade features to help protect data integrity and ensure stable operation in 24/7 environments

how to install Supermicro X11SRL-F Server Motherboard

Installing the X11SRL-F in a compatible rack or tower chassis is straightforward when you follow best-practice server assembly steps. Start by preparing your chassis, ensuring it has adequate airflow and a clean, static-free workspace. Install the I/O shield, then align the motherboard with the screw standoffs in the chassis and secure it firmly. After mounting the board, install the processor into the LGA-2066 socket, apply thermal paste as recommended by the CPU cooler manufacturer, and attach the CPU cooler with proper fasteners to ensure optimal cooling performance. Insert the DDR4 ECC RAM modules into the 8 memory slots, making sure to populate the slots in the recommended order to maximize memory channel utilization. Connect the 24-pin ATX power connector and the 8-pin CPU power connector, along with all chassis fans and any additional power rails required by your storage devices and PCIe cards. Attach your storage devices to the 8 SATA ports and any PCIe expansion cards you plan to use, such as RAID controllers or network adapters. Finally, power on the system and enter the BIOS/UEFI to configure boot order, memory profiles, and any security features or remote management settings you want to enable. Save changes, reboot, and install your operating system and drivers. For ongoing management, enable IPMI or the board’s remote management features to monitor hardware health, firmware status, and system alerts remotely.

• Step 1: Prepare the chassis, install the I/O shield, and align the motherboard with standoffs; secure with screws.
• Step 2: Install the CPU into the LGA-2066 socket, apply thermal interface material per cooler instructions, and mount the cooling solution securely.
• Step 3: Populate the 8 DIMM slots with DDR4 ECC memory in the correct order to maximize memory bandwidth and stability.
• Step 4: Connect power supplies (24-pin ATX and 8-pin CPU power), attach fans, and install storage devices to SATA ports as needed.
• Step 5: Enter BIOS/UEFI to set boot devices, memory profiles, and enable remote-management features; save and reboot to complete OS installation.

Frequently asked questions

• What CPUs are supported by the X11SRL-F? The X11SRL-F supports Intel Xeon Scalable processors that fit the LGA 2066 Socket R4, enabling a range of high-performance, multi-core configurations for virtualization, databases, and compute-intensive workloads.
• How much memory can I install? The motherboard supports up to 512 GB of DDR4 ECC RAM across 8 DIMM slots, using RDIMM or LRDIMM types. This makes it suitable for memory-demanding applications such as virtualized environments and large-scale caching.
• How many SATA drives can be connected? There are 8 SATA interfaces on the board, providing flexible storage options for operating systems, boot drives, and data volumes in various configurations.
• Does it support remote management? Yes. The X11SRL-F includes built-in remote management capabilities that facilitate out-of-band access, monitoring, and administration, helping IT teams manage servers securely and efficiently from remote locations.
• What form factor is this motherboard compatible with? The board is an ATX form factor, designed to fit standard server and workstation enclosures, making it easy to deploy in typical rack or tower designs with appropriate chassis support and cooling.
