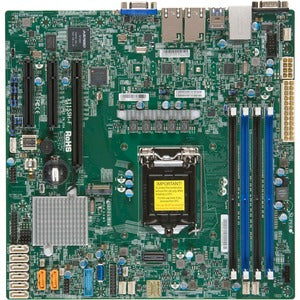

Supermicro X11SSH-F Server Motherboard - Intel C236 Chipset, Socket H4 LGA-1151, Micro ATX

The Supermicro X11SSH-F is a compact, high-efficiency server motherboard built to power a variety of enterprise-grade deployments—from compact NAS and dense virtualization hosts to small business servers. Engineered around the Intel C236 chipset and Socket H4 (LGA-1151), this Micro ATX board delivers the processing power of Xeon E3-1200 v5 family systems and 6th Gen Intel Core CPUs in a space-saving form factor. Designed for reliability and scalable performance, the X11SSH-F blends server-grade features with flexible I/O options, making it a smart choice for data-intensive workloads that demand consistency, uptime, and straightforward manageability. Whether you’re assembling a home lab, a remote office server, or a compact virtualization node, the X11SSH-F is built to deliver consistent performance, energy efficiency, and robust service life.

• Enterprise-grade CPU support for flexible performance — The X11SSH-F accepts Intel Xeon E3-1200 v5 family processors as well as Intel 6th Gen Core i7/i5/i3 CPUs. This makes it a versatile foundation for a range of workloads, from virtualization and databases to web hosting and file services. The combination of a capable processor family and the Intel C236 chipset ensures solid multi-threaded performance, efficient power use, and the headroom needed to handle bursts in demand without compromising responsiveness.
• Memory with reliability your workloads can depend on — Designed to take advantage of DDR4 memory, the X11SSH-F supports up to 64GB of RAM. Coupled with Xeon E3-1200 v5 processors, you can leverage ECC memory to guard against bit errors, delivering improved data integrity for critical workloads. This makes the board well-suited for virtualization, databases, and other applications where memory reliability translates directly into uptime and data correctness.
• Flexible expansion and storage options — With PCIe 3.0 expansion lanes and multiple storage interfaces, the X11SSH-F provides room for expansion without sacrificing compactness. The motherboard offers PCIe slots suitable for add-on cards (RAID controllers, NICs, or accelerators) and ample SATA connections for fast, scalable data storage. Its design avoids unnecessary bottlenecks, so you can grow capacity and performance as your needs evolve.
• Remote management and security built in — Server-grade management capabilities include robust remote administration features that simplify deployment and ongoing maintenance. IPMI (Intelligent Platform Management Interface) with KVM over LAN support enables out-of-band management, firmware updates, and remote troubleshooting, which is especially valuable for remote offices, data centers, or distributed environments where hands-on service is impractical.
• Compact, enterprise-ready form factor — The Micro ATX form factor balances physical footprint with expansion capability, enabling tight server rooms and mainstream chassis compatibility. This design supports a broad ecosystem of chassis, power supplies, and cooling configurations, giving you the flexibility to deploy in existing infrastructure or scale to meet future needs without compromising reliability or manageability.

Technical Details of Supermicro X11SSH-F Server Motherboard

• Form Factor: Micro ATX
• CPU Socket: LGA 1151 (Socket H4)
• Chipset: Intel C236
• Supported Processors: Intel Xeon E3-1200 v5 family and Intel 6th Gen Core i7/i5/i3
• Memory: Supports DDR4 memory up to 64GB; ECC memory support with Xeon processors
• Memory Channels: Multi-channel memory architecture typical of DDR4 for improved bandwidth
• Expansion Slots: PCIe 3.0 expansion options (including x16, x4, and x1 configurations for PCIe add-ons)
• Storage Interfaces: Multiple SATA 6Gb/s ports for data drives and OS devices
• Networking: Dual Gigabit Ethernet LAN controllers for redundancy and mobility in network traffic
• Management: IPMI 2.0 with dedicated management port for remote out-of-band management and KVM over LAN
• USB: USB 3.0/2.0 front and rear I/O support for fast peripheral connectivity
• BIOS/Firmware: UEFI firmware with modern initialization and configuration tooling
• Other: Server-grade features optimized for reliability, uptime, and long-term serviceability

How to install Supermicro X11SSH-F Server Motherboard

• Prepare your chassis, power supply, and cooling. Ensure the case can accommodate a Micro ATX motherboard and provides adequate airflow to maintain thermal performance under load.
• Install the processor into the LGA 1151 socket, aligning pins carefully and applying the appropriate thermal compound before seating the heat sink. Secure the cooler firmly to ensure consistent contact and cooling efficiency for sustained workloads.
• Install DDR4 memory modules into the proper DIMM slots. Follow the motherboard’s memory population guidelines for channel interleaving and maximum performance. Ensure memory is fully seated and secured for stable POST and operation.
• Place the motherboard into the chassis standoffs, align the I/O shield, and fasten the board with screws. Connect the main power rails from the power supply, plus additional CPU power if your PSU design requires it, ensuring clean and secure cable management to promote airflow and reduce heat buildup.
• Attach all necessary data and system cables (SATA/data cables, USB headers, and front panel connectors). Connect the network cables to the NIC ports and verify IPMI or dedicated management interfaces if you plan remote management. Power up the system and enter the BIOS/UEFI to configure boot order, memory settings, and any platform-specific options such as virtualization features, NUMA settings, or energy-saving profiles.
• Install your operating system or hypervisor, complete driver and firmware updates, and configure storage arrays. Regularly monitor temperatures and system logs to preemptively address potential issues. With IPMI, you can perform remote reboots, monitor health sensors, and keep firmware current without on-site visits.

Frequently asked questions

• Q: What processors are supported by the Supermicro X11SSH-F? A: The board supports Intel Xeon E3-1200 v5 family processors and Intel 6th Gen Core i7/i5/i3 CPUs, giving you a choice between server-grade reliability and desktop-class performance depending on workload requirements.
• Q: How much memory will this motherboard support? A: The X11SSH-F supports up to 64GB of DDR4 memory. With Xeon E3-1200 v5 processors, you can enable ECC memory for improved data integrity, which is particularly valuable for virtualization, databases, and other mission-critical applications.
• Q: Does this motherboard support remote management? A: Yes. It includes IPMI 2.0 with a dedicated management port, enabling remote out-of-band management, monitoring, and firmware updates, which is ideal for remote offices or data centers where physical access is limited.
• Q: What about expansion and storage options? A: The board offers PCIe 3.0 expansion slots for add-on cards and multiple SATA 6Gb/s ports for drives. This combination supports a variety of storage configurations and expansion needs, from basic NAS setups to more advanced virtualization hosts.
• Q: Is this board compatible with standard server chassis? A: The Micro ATX form factor is widely compatible with a broad range of chassis designed for Micro ATX motherboards. Its compact footprint makes it suitable for dense server environments while still offering robust I/O and expansion capabilities.
• Q: Which memory types are recommended? A: DDR4 memory is supported, with ECC recommended when using Xeon processors to maximize data integrity for server workloads. Always consult the motherboard’s official Memory QVL (Qualified Vendor List) for supported modules and configurations.
• Q: Can I run virtualization on this motherboard? A: Yes. The X11SSH-F is designed to support virtualization workloads when paired with Xeon E3-1200 v5 processors and sufficient memory. Enable virtualization features in the BIOS and allocate resources accordingly for stable guest VMs or containers.
